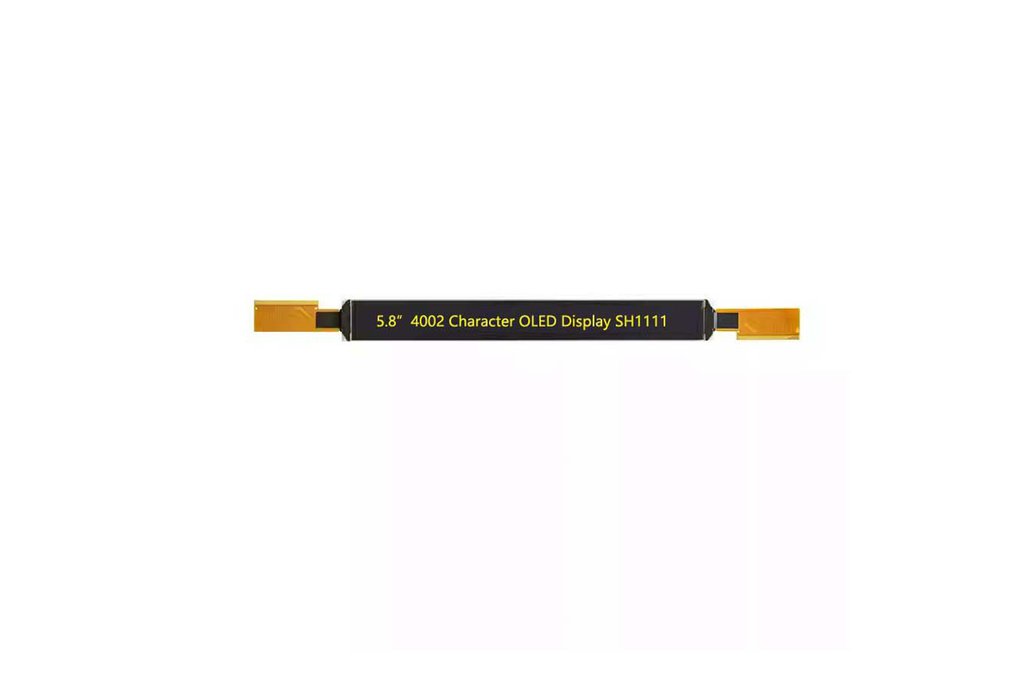

5.8 inch 40x2 4002 Character OLED Display SPI/I2C interface KS0066 /(SH1111) chip ic in yellow

Overview of 5.8 inch 4002 character oled display:

5.80 inch monochrome character oled display module which is made with 40X2 characters. This mono 40X2 character oled screen sizes is 5.80 inch in diagonal. This 5.80 inch oled display is passive matrix micro OLED display with mono white/blue/Yellow 3 colors options. The driver IC is KS0066 /SH1111, 3.67 oled screen communicates via 4-/8-bit 68XX/80XX Parallel, SPI, I2C interface, using 3.3V power supply. The 40X2 oled character screen is a COG structure OLED panel, as the oled cmakes its own light without backlight is required, So the power required to run the OLED is low, and is why the display has such high contrast, extremely wide viewing angle and operating temperature. OLED 40X2 module can be operating at temperatures from -40℃ to +80℃, storage temperatures is from -40℃ to +85℃. The oled 40X2 character 5.80" is commonly used for smart watch, MP3, function cellphone, portable health device and many others application.

Parameter of 5.8 inch 4002 character oled display:

• Display Mode : Passive Matrix
• Display Color : Monochrome(white/blue/yellow)
• Drive Duty : 1/16 Duty
• Display Size:5.80 inch
• DriverlC:KS0066 /(SH1111)
• Pin No:43P
• Number of Characters: 40 Characters ( 5 × 8 ) × 2 Lines
• Module Size : 235.20 × 18.30 × 2.00 (mm)
• Panel Size: 160.20 × 18.30 × 2.00 (mm) including “Anti-Glare” Polarizer
• Active Area: 147.50 × 11.50 (mm)
• Character Pitch: 3.70 × 5.95 (mm)
• Character Size: 3.20 × 5.55 (mm)
• Pixel Pitch: 0.65 × 0.70 (mm)
• Pixel Size: 0.60 × 0.65 (mm)
• Interface:4-/8-bit 68XX/80XX Parallel, SPI, I2C
• Operating Temperature:-40~850 °C
• Storage Temperature：-40~90 °C
• Part No:ZOJK580-4002ASWAG01
• Weight: 12.2 (g) ± 10%

Features of 5.8 inch 4002 character oled display :

• Compatible with Character LCD Display
• Multiple Languages Support
• Applicable to Various Character Display Module Development
• High Contrast Ratio (10,000:1)
• Free Viewing Angle
• Fast Response Time (≤ 10μs)
• Thinner & Lighter & Durable
• Wide Temperature Range (-40°C~85°C)
• No need of backlight, self emitting
• Apply to most products from any area.
• Trend of Displays
• Leading the green vision

Mechanical Drawing

Application of 5.8 inch 4002 character oled display:

• Smart phones
• smart watch
• portable health device
• intelligent on-board camera
• real-time display pictures
• battery management equipment
• IPC controller
• MP3/MP4 player
• mobile phone function
• portable medical equipment, game, etc.

Packing Content:1x 5.80 inch 4002 40x2 monochrome character oled display in Yellow
