Mini Digital Thermometer & Hygrometer (Zigbee)

Name: Mini Digital Thermometer & Hygrometer (Zigbee)
SKU: 25929
Price: 22.50 USD
Availability: OutOfStock

Temperature and humidity sensor with an electronic ink display 1.02 Inch, very small device, zigbee2mqtt, zha

Designed by Efektalab in Russia

This seller is taking a break. Sign up below to get an email when they're back!

Mini Digital Thermometer & Hygrometer (Zigbee) 1

Mini Digital Thermometer & Hygrometer (Zigbee) 2

Mini Digital Thermometer & Hygrometer (Zigbee) 3

Mini Digital Thermometer & Hygrometer (Zigbee) 4

Mini Digital Thermometer & Hygrometer (Zigbee) 5

Mini Digital Thermometer & Hygrometer (Zigbee) 6






$22.50

On A Break

Temperature and humidity sensor with an electronic ink display 1.02 Inch, very small device, zigbee2mqtt, zha

What is it? It is a miniature temperature and humidity sensor with a small e-ink display. The sensor has an industrial look, at least I wanted to achieve this. Powered by CC2530 chip (Zigbee). The d…

What is it?

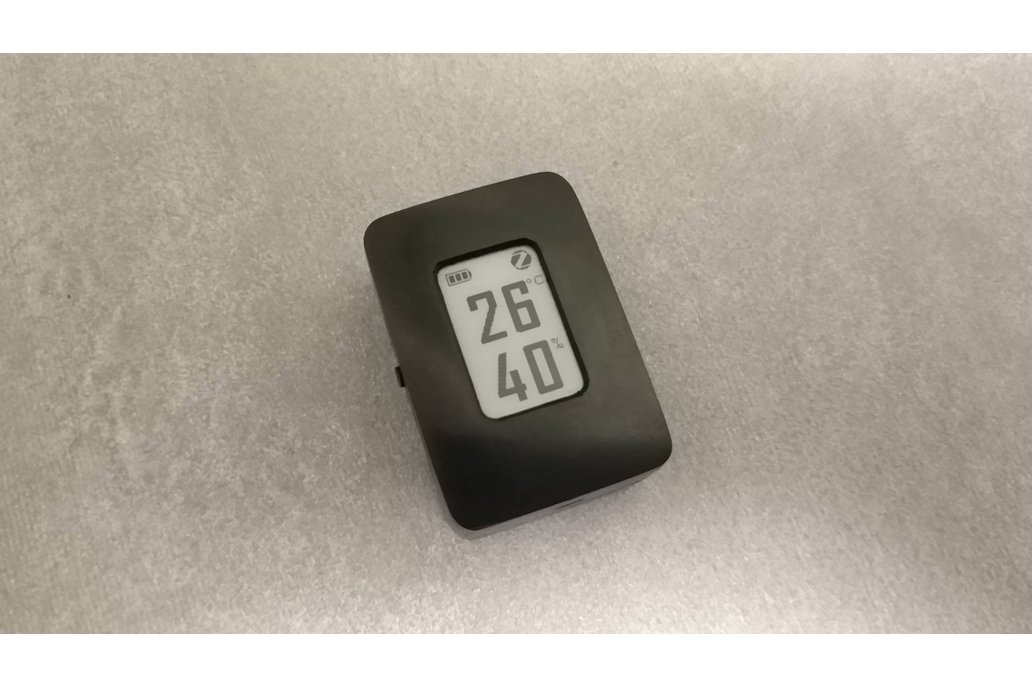

It is a miniature temperature and humidity sensor with a small e-ink display. The sensor has an industrial look, at least I wanted to achieve this.

Powered by CC2530 chip (Zigbee). The device is shipped fully wired with open source software preinstalled. The device can be purchased with or without a case.

Why did you make it?

I am interested in making original devices that are not on sale.

Right now, I'm very interested in low-power, cost-effective wireless devices.

What makes it special?

RF module EBYTE E18-MS1-PCB (CC2530).
Long runtime with one CR2477 battery.
Consumption in data transmission mode - 25mA, in sleep mode 1,9μA.
The project uses a new e-ink display (GDEW0102T4) from Good Display.
Digital temperature and humidity sensor SHTC3
The dimensions of the device are the same as for any other wireless temperature and humidity sensors without a display, but this sensor is with a display.
The case is printed on a 3D printer, PLA Carbon material is black, graphite. The case is polished.
Inside the case, magnets are installed for fixing to magnetic surfaces.
