Features:

(G)FSK/4(G)FSK/LoRa Modulation 433Mhz transceiver Max.30dBm output power -147dBm sensitivity Standard SPI interface Low RX current: 6.0 mA Automatic RF sense and CAD monitor Data Rate: <300 kbps Supply voltage: 4.0~5.5V

Description:

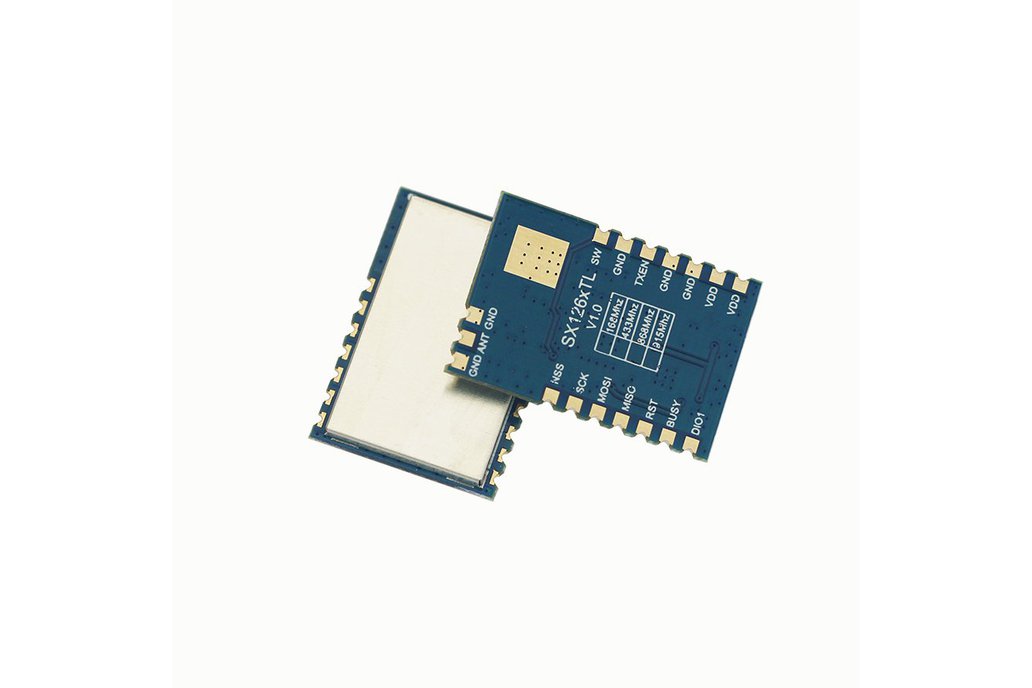

DRF1268TL module consists of RFIC SX1262, thin SMD crystal, PA and antenna matching circuit. The antenna port is well matched to standard 50 Ohm impedance. Users don’t need to spend time in RF circuit design and choose suitable antennas for different applications. DRF1262TL operates at 4.0~5.5V with extra low standby current which makes it suitable for battery powered-up applications.

DRF1268TL adopts ±1ppm high accuracy TCXO which makes it possible to use narrower bandwidth to achieve the high sensitivity up to -147dBm.

Applications:

Remote Control * Remote AMR * Home Automation * Personal data logger * Wireless sensor network * Remote Keyless entry * Wireless PC peripherals

Notes: This price only contains 1pcs of DRF1268TL module
