What is it?

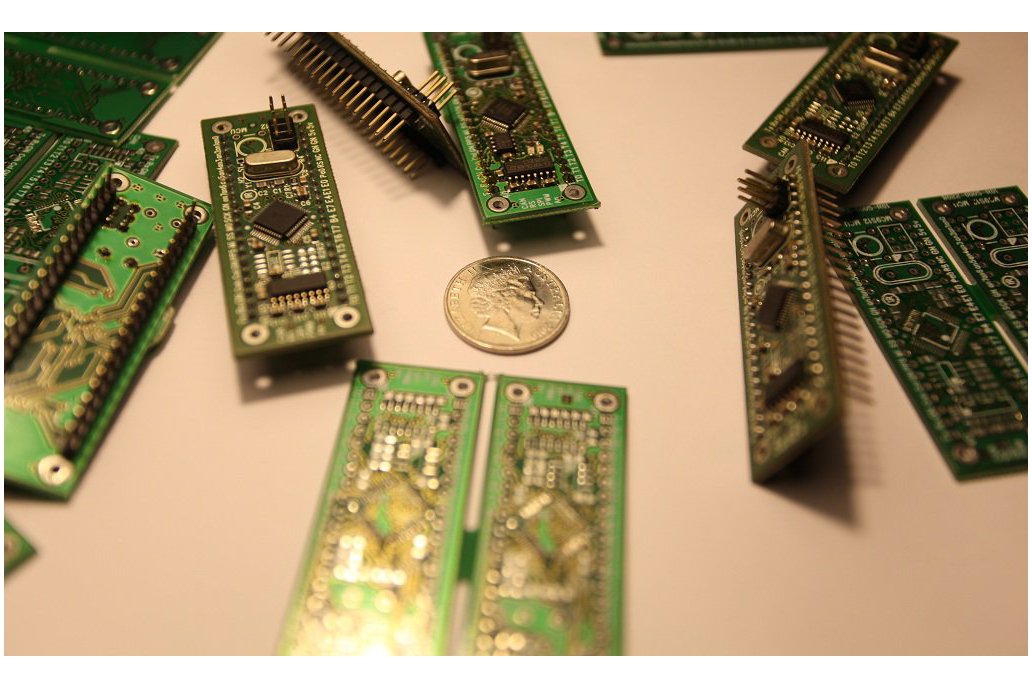

It is a freescale 9S12C128 based microcontroller board in DIP40 format with CAN 2.0 B transceiver port.

With 5 channel PWM, 7 channel 10bit analog inputs, RS232 bus and more,

It is ideal for industrial automation and advance robotics.

It has also two on-board SMD led indicators for debugging.

It has standard 6pin BDM programmer connection .

Why did you make it?

I did it for easy use in automation projects in which PIC, AVR or even ARM processors

don't have enough control and communication capabilities.

What makes it special?

It is the lowest cost 9S12 microcontroller board with CAN interface.

All components are industrial standards.

Perfect for automation, robotics or educational purposes.

It uses all features of 9S12C chip.

All pins on PCB are labeled for easy use.
