What is it?

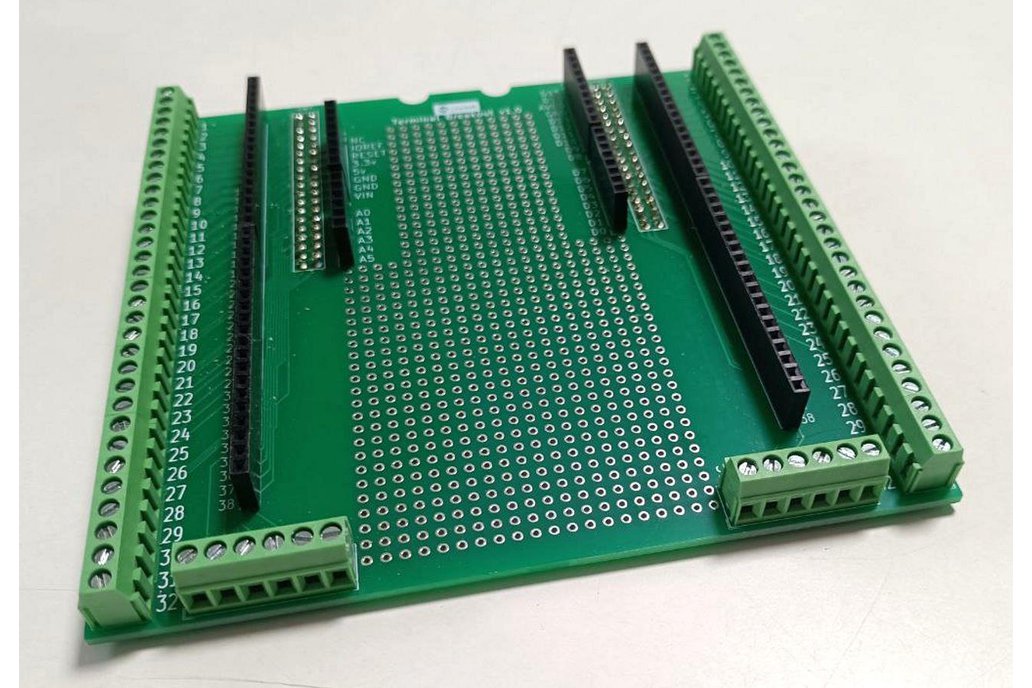

STM32 Nucleo64 Morpho Compatible Screw Terminal Shield with Arduino Shield socket and a large perfboard area that enables larger and more complex prototyping.
Why did you make it?
I neede…
STM32 Nucleo64 Morpho Compatible Screw Terminal Shield with Arduino Shield socket and a large perfboard area that enables larger and more complex prototyping.
Why did you make it?
I needed to explore STM32's capabilities and develop a prototype without designing a board or having a really messy desk with jump wires all over the place.
What makes it special?
Its one of a kind, anyone that needs to prototype a new project based on STM32 and doesn't want a big mess of wires and modules should get at least one.
It fits on an STM32 Nucleo64 boards and exposes all the pins as screw terminals, 2.56 header and Arduino Shield footprint.
This kit is not soldered
Assembly Instructions
The side marked with "Terminal Breakout v1.0" and part numbers is the front
The back should have the 2 x 38pin double row pin sockets
If you are not sure, look in the pictures.
Contact me if you are still not sure
Note the placement of parts, it will be a nightmare to desolder and resolder!
Compatibility
The STM32 Nucleo-64 Morpho is one of the standards of STM32 Development Kits and should be compatible with the following kits (Reference):
