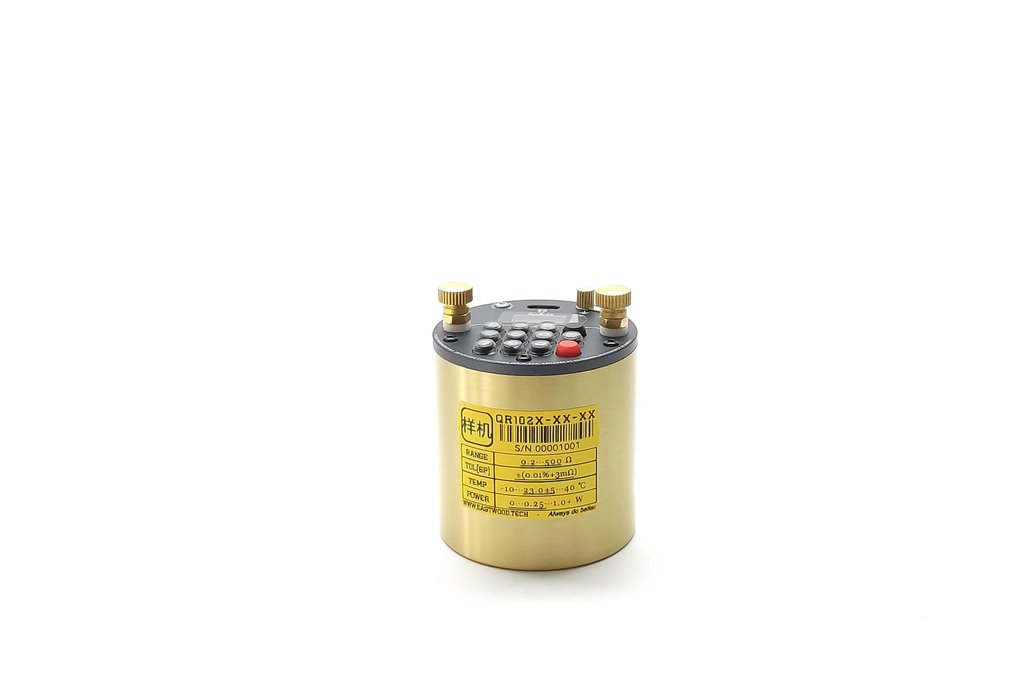

QR102 1mΩ Step Pocket Resistance Box

Name: QR102 1mΩ Step Pocket Resistance Box
SKU: 31361
Price: 449.00 USD
Availability: InStock

Relay-Res structure to achieve 1mΩ step resolution, now the accuracy ±0.015%±3mΩ is based on "Setpoint"!

Designed by EastwoodLab in China

Buy with confidence.

Our Tindie Guarantee protects your purchase from fraud. Learn More

Relay-Res structure to achieve 1mΩ step resolution, now the accuracy ±0.015%±3mΩ is based on "Setpoint"!

What is it? New product to be released to achieve <1mΩ steps within the entire output range. Samples are available in two weeks. Spec. of model QR102A-K5-R0: Output Range Steps Accuracy(Referred …

What is it?

New product to be released to achieve <1mΩ steps within the entire output range. Samples are available in two weeks.

Spec. of model QR102A-K5-R0:

Output Range	Steps	Accuracy(Referred to Setpoint)	TC	Rated power
1.5Ω to 500Ω	<1mΩ	±0.015%±3mΩ@Tcal±5℃	less than ±(10ppm+0.5mΩ)/℃	>1W

Can be in serial with QR101 (or other fixed-value resistor) to make the whole range (or desired range) capable with 1mΩ step.

What makes it special?

Unlike QR100/101 that the accuracy is based on "reading" or "process value" (for example when you need a 100.0 Ohm while the device can only output 99.95 Ohm - although it will tell you it's 99.95 Ohm), QR102 makes it possible to output the exactly the resistance value "100.000" you want.
