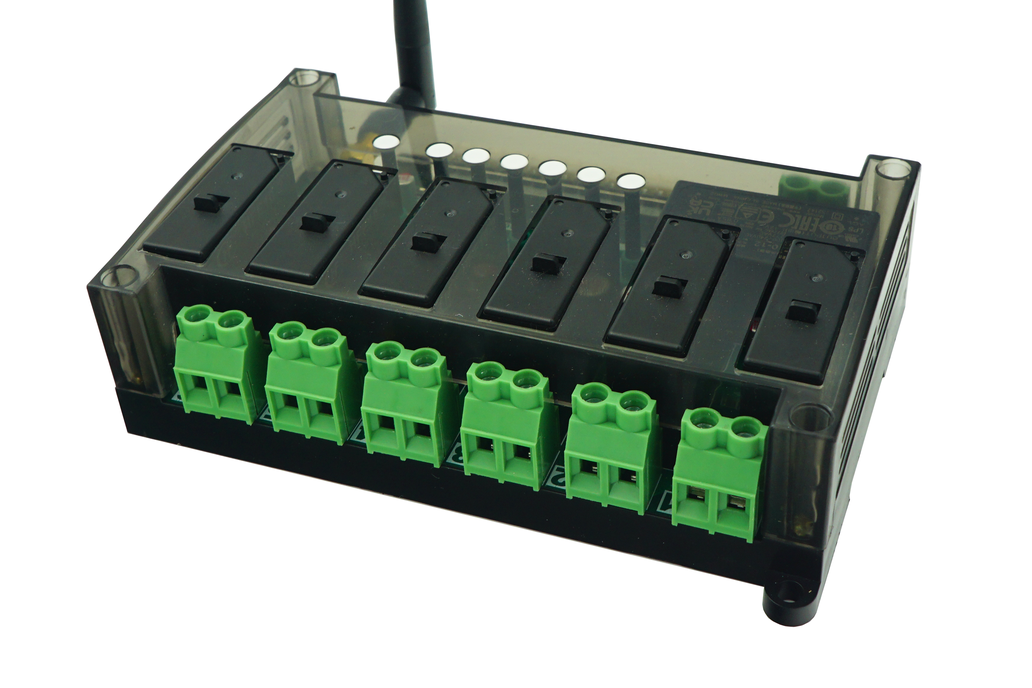

ESP32-S2 module based 6 Gang 30 Amps Latch Relay in DIN Rail enclosure. Best sutable for secure Home Automation, IOT.
Designed by easySensors in China
Buy with confidence.
Our Tindie Guarantee protects your purchase from fraud. Learn More
Specification ESP32-S2 Matter ready chipset Embedded IPX to SMA adapter, 3dBi antenna, any SMA Wi-Fi antenna can be used. USB type C programming\debug connector, on board CP2102 USB-TTL converter 6 …
Read More…You can use the button below to install the pre-built firmware directly to your device via USB from the browser. >the button is visible from the 6Gang30AmpsLatchRelayEspHomeReady web page
To tweak the YAML code in 6Gang30AmpsLatchRelay.yaml and burn it into the board - follow instructions in the link below and install ESPHome Installing ESPHome Manually
/i/96808/products/2023-11-03T12%3A47%3A34.823Z-esp32_relays_din_rail_enclosure2.png?1698990861)
esphome run 6Gang30AmpsLatchRelay.yaml
| Latch Relays | Latch Relay ESP32-S2 pin # |
|---|---|
| Latch Relay 1 ON | 10 |
| Latch Relay 1 OFF | 9 |
| Latch Relay 2 ON | 20 |
| Latch Relay 2 OFF | 3 |
| Latch Relay 3 ON | 19 |
| Latch Relay 3 OFF | 8 |
| Latch Relay 4 ON | 15 |
| Latch Relay 4 OFF | 16 |
| Latch Relay 5 ON | 7 |
| Latch Relay 5 OFF | 6 |
| Latch Relay 6 ON | 5 |
| Latch Relay 6 OFF | 4 |
| Tact buttons | ESP32-S2 pin # |
|---|---|
| Button 1 | 11 |
| Button 2 | 12 |
| Button 3 | 13 |
| Button 4 | 14 |
| Button 5 | 21 |
| Button 6 | 33 |
| Optocoupled switch inputs | ESP32-S2 pin # |
|---|---|
| Switch 1 | 34 |
| Switch 2 | 35 |
| Switch 3 | 36 |
| Switch 4 | 37 |
| Switch 5 | 38 |
| Switch 6 | 39 |
| Dallas sensor ESP32-S2 pins: | ESP32-S2 pin # |
|---|---|
| Temp 1 | 40 |
| Temp 2 | 41 |
| i2c expander ESP32-S2 (LED's pins): | ESP32-S2 pin # |
|---|---|
| SDA | 17 |
| SCL | 18 |
>The board schematics Pdf link
check yotube link below
