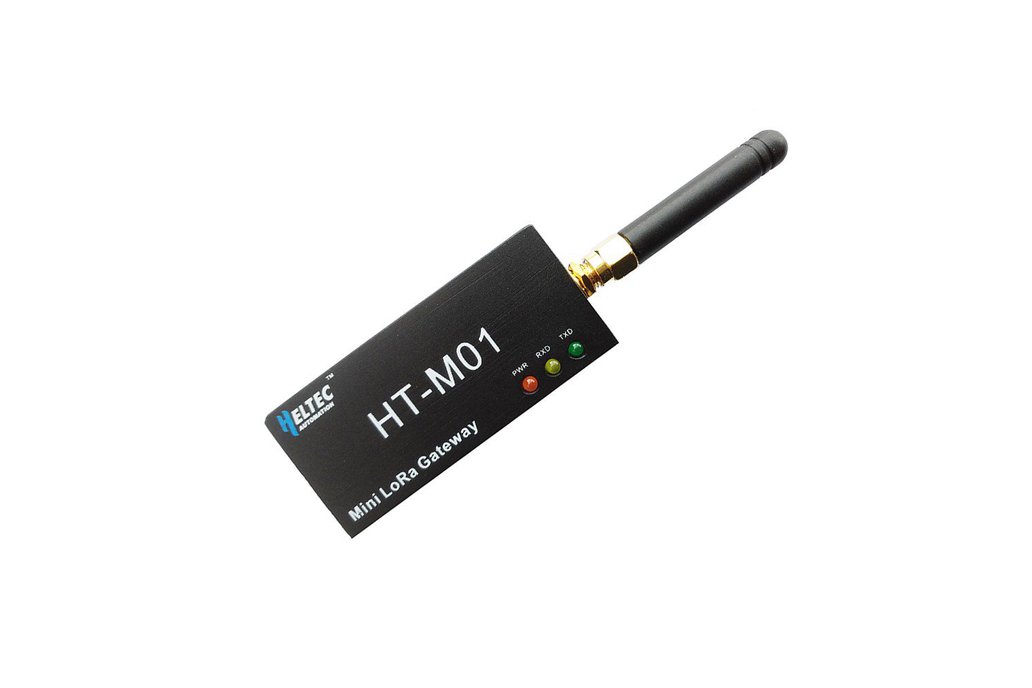

Mini Lora gateway LoraWan SX1301 sx1255/57 lora 8 channel 915MHZ for gateway integrated for Raspberry Pi
The core chip of the HT-M01 LoRa gatewan is the SX1301 baseband chip It is industrial-grade standard LoRa/LoRaWAN gatewan module which with high performance and small size. The HT-M01 series product…
The core chip of the HT-M01 LoRa gatewan is the SX1301 baseband chip It is industrial-grade standard LoRa/LoRaWAN gatewan module which with high performance and small size. The HT-M01 series products currently have 915MHz and can be customized according to the user's needs. This LoRa Gatewan is mainly aimed at wireless sensor networks, Internet of things, embedded applications, it can help customers quickly complete the development of LoRaWAN networking working with our HT-M01 development kit.
The development kit is mainly composed for "Raspberry Pi ZERO W" and "Dedicated adapter board". The adapter board is mainly used for exporting for Raspberry Pi SPI bus. It can be directly used to drive the HT-M01 LoRa gatewan, and the board contains CH340G USB to serial chip, user-friendly interaction for Raspberry Pi.
Application area
Internet of Things
Meter reading concentrator
Industrial Control Concentrator
Security Alert System Gatewan
LPWAN base station
Product Features
Small size of the adapter for Raspberry pie ZERO: 66(+10) x 30 x 15 mm
It can be integrated for Raspberry Pi through dedicated adapter board;
Embedded 49 pcs LoRa demodulators;
10 pcs programmable parallel demodulation paths;
Automatic adaptive spreading factor, optional for each channel SF7 to SF12;
Maximum output power 25dBm
Receiver sensitivity: -142.5dBm@300bps
Communication Interface: SPI or USB
5V power supply;
Support LoRaWAN Class A, Class B, Class C protocol
