What is it?

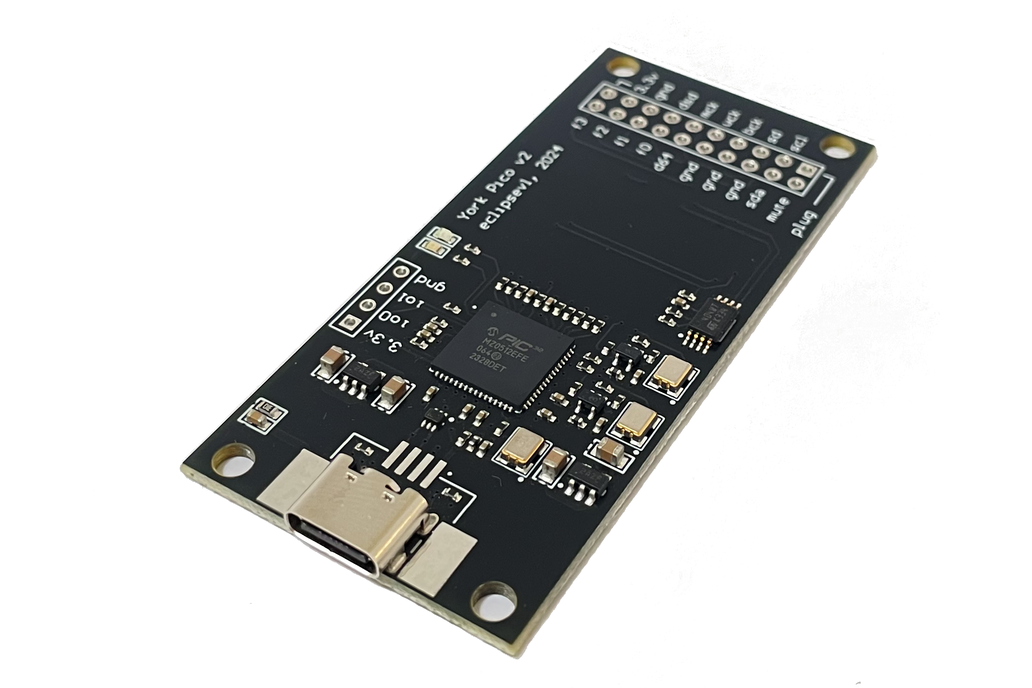

This is a USB transport for I2S/TDM audio output (up to 8ch) and I2S input (2ch for now) and user device control (e.g., DSP management) from PC (MacOS/Linux/Windows) thru I2C/GPIO. Including bootloader for remote firmware update, flexible device configuration, HID interface, multiple audio output options, integration with SigmaStudio (simultaneous audio playback and ADAU DSP configuration). Compact module available in USB-C and USB-B versions.

It also supports direct connection of the NOS DACs.

Why did you make it?

The story started when I needed a USB transport for audio output and another channel for device control, such as for managing DSP.

Last time, I solved this problem using a USB hub and a USB to Serial converter. This way, I assembled the required interface from 4 chips: https://www.diyaudio.com/community/threads/audio-transport-module-york.406025/ (first post)

I tried to combine everything into one XMOS chip. This was also a working solution, but there was a big problem with the availability of the chips, especially in the desired package.

Thus, developing the transport on the pic32mz seemed the most logical to me. The first prototype module was based on Dortonyan’s project from Vegalab: in terms of circuitry, it almost completely repeated the original project and was designed for two-channel audio output, plus a serial interface. During testing of the firmware based on the original source code, several problems were identified when working in different OSs. The serial port was also not fully implemented. I posted my version of the firmware with fixes in the original thread and on GitHub: https://github.com/eclipsevl/york_pic32mz_uac2_osfw/

After that, I continued working on the functions I needed. The following features were implemented:

1. Bootloader. Necessary for firmware updates via USB, without a programmer.
2. Flexible device configuration using a PC utility (which is also used for firmware updates).
3. HID interface for transmitting service information and device configuration. Initially, I planned to use the serial port, but HID is much more suitable.
4. Serial interface, which can be optionally enabled.
5. Various additional audio output options: s/pdif, 8-channel TDM, dual i2s (for using some DACs channel-by-channel in mono mode), 4xI2S for 8channel output. Recently I also added support for old dacs with clock/data/latch interface. I.e. direct connection to dac ICs such as AD1862/PCM1702 etc is also possible without glue logic.
6. Various clocking options: module oscillators, external clock (slave mode), internal PLL clocking.
7. I2C port and library for integration with SigmaStudio: for simultaneous audio input/output and DSP ADAU programming.

What makes it special?

This last feature is currently a unique combination and fits well into DSP projects: https://www.diyaudio.com/community/threads/freedsp-octavia.393804/page-18#post-7625685

More information on DIYAudio:

https://www.diyaudio.com/community/threads/usb-uac2-hid-multichannel-input-output-interface-york.413504/#
