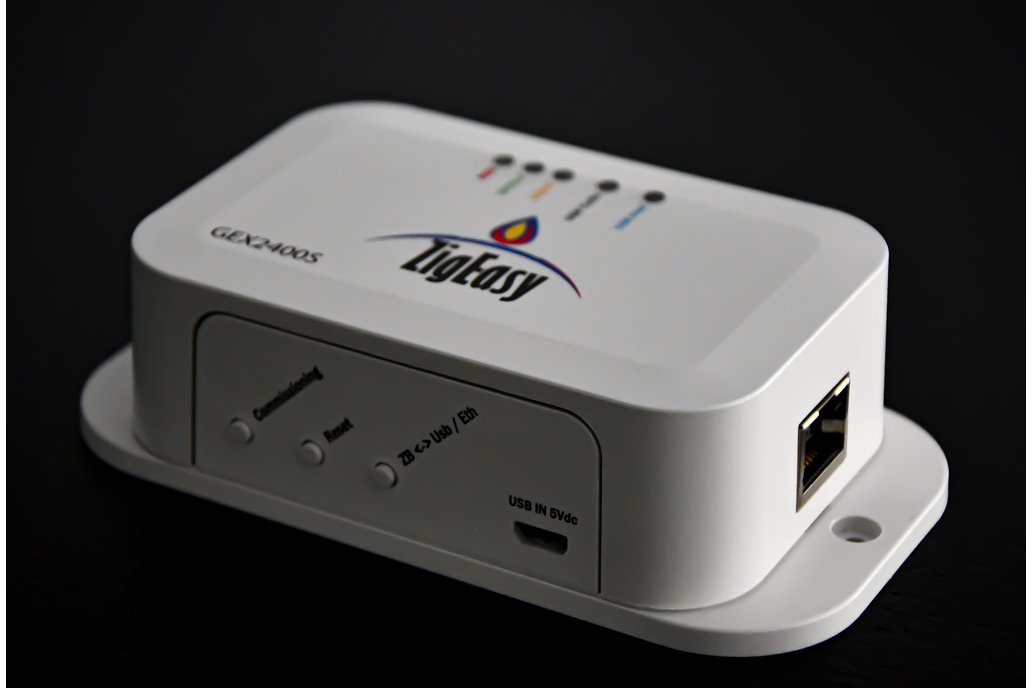

ZigEasy GEX series are Zigbee coordinators or DigiMesh coordinators / Ethernet gateways that allow you to connect a Zigbee or DigiMesh network to a local Ethernet network or internet. You can easily and quickly create a robust, reliable and complex Zigbee/DigiMesh network and read or write to it from different types of servers.

Content of sent box :

• 1 GEX
• 1 Antenna 2dB
• 1 Micro USB cable (1m)

Not provided

• 5Vdc USB Power bloc not provided. Choose a good SMPS adapter 5V and 1A min.

For any specific request for availability or technical question, do not hesitate to click on "Ask a question" button under the price.

Let us know your interest for the long range GEX868(S) version.

Use cases:

• Deploy a mesh network and collect data in a server like :
  • Node-Red
  • Home Assistant
  • Using MQTT, MQTTS, TCP, TCP TLS, TCP AES, UDP and more
• Deploy an indoor mesh network
• Deploy outdoors with ZigBee or long-range DigiMesh mesh network to collect data of weather, machine, agricultural, buildings, etc.

GEX2400 and GEX2400S each integrate an XBee3 module from Digi International configurable with the XCTU software, directly with the USB port of the device, or from a TCP/IP network. XBee3 can receive the proprietary Digimesh firmware.

GEX868 and GEX868S each integrate an XB8 module from Digi International configurable with the XCTU software, directly with the USB port of the device, or from a TCP/IP network. but has the proprietary Digimesh firmware only.

GEX2400 and GEX868 offers the simplest and most cost-effective way to connect a mesh network to a TCP/UDP/HTTPD server/client.

GEX2400S and GEX868S provide advanced data encryption and security features on the Ethernet side such as TLS1.2 and AES256, in its 'S' version, in cases where the device would communicate directly on the internet. It also offers a wide choice of communication protocols and advanced combinations. See the table below.

The Ethernet modules of all versions are fully configurable via a simple WEB interface mainly allowing :
