IndiJoy: DIY Joystick PCB For C64, Amiga and USB

Name: IndiJoy: DIY Joystick PCB For C64, Amiga and USB
SKU: 24842
Price: 21.00 USD
Availability: Discontinued

PCB for DIY Joysticks, connection via USB to PCs/MACs, and via 9 pin D-Sub Atari Game Port to Commodore 64 or Amiga, and compatibles.

Designed by edge-records in United Kingdom

Product Retired

This product is no longer available for sale.

The seller may be offering an improved version or it may be hanging out on the beach, enjoying the retired life.

While you're here, check out these other awesome products for sale!

More "gaming" Related Products

NESessity v1.6 Replacement PCB for NES Console

Low Budget

$39.00

NEO-BUF replacement

furrtek

$2.50

DAFM synth - BLASTER YMF262 (OPL3)

KASSER SYNTHS

$259.99

tinkerBOY Switchless Amiga Boot Drive Selector

tinkerBOY

$33.00

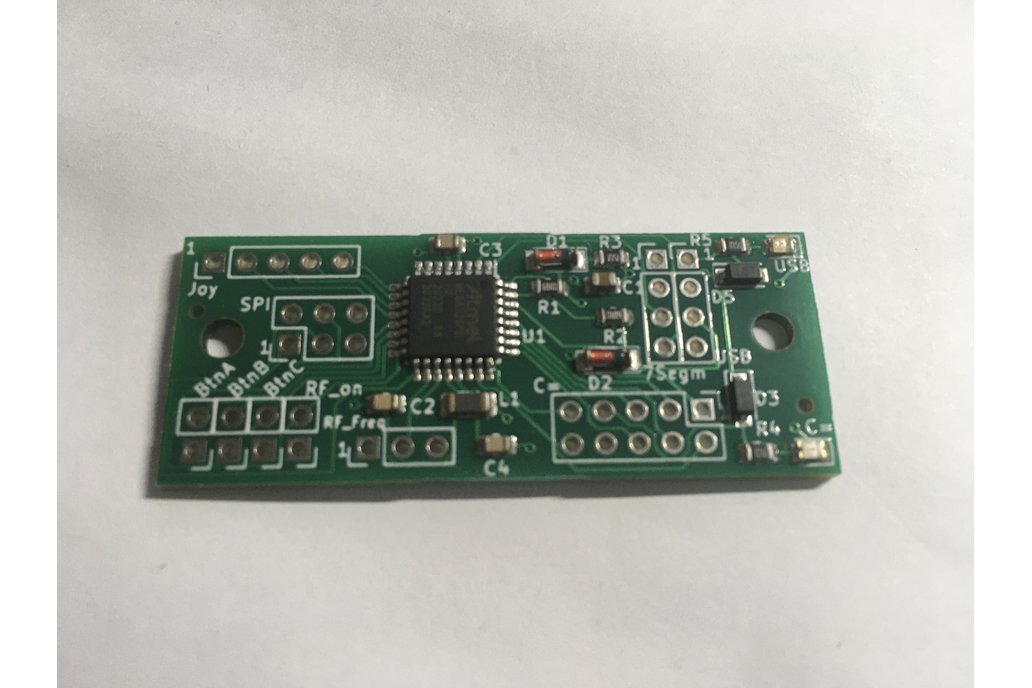

IndiJoy: DIY Joystick PCB For C64, Amiga and USB 1

IndiJoy: DIY Joystick PCB For C64, Amiga and USB 2

IndiJoy: DIY Joystick PCB For C64, Amiga and USB 3

IndiJoy: DIY Joystick PCB For C64, Amiga and USB 4

IndiJoy: DIY Joystick PCB For C64, Amiga and USB 5



2021-09-01T22:16:02.324Z-Pin Headers.jpg



PCB for DIY Joysticks, connection via USB to PCs/MACs, and via 9 pin D-Sub Atari Game Port to Commodore 64 or Amiga, and compatibles.

IndiJoy is a circuit board for DIY joysticks that can be connected via USB to PCs and MACs, and via 9 pin D-Sub Atari Game Port to Commodore 64 or Amiga machines, and compatibles. It can either be us…

Features:

USB Connectivity, supported by all major operating systems
Connectivity via 9 pin D-Sub connector to historic devices like C64 and Amiga,and any compatible
3 distinct fire button signals – buttons 2 and 3 compatible to both C64 and Amiga, configurable via Config Menu
Rapid Fire on/off switch (not included)
Change frequency of Rapid Fire via Potentiometer (not included)
Rapid fire frequency range is configurable in Config Menu
Manual press of fire button overrides Rapid Fire
Swap “UP”direction against one of the 3 fire buttons via Config Menu
4 x 7 Segment LED display (not included) shows:
- Manual or Rapid Fire Frequency in Hertz during normal operation
- Config Menu
9 savable config preset slots in Config Menu to quickly change setups between games
Two On-board LEDs to show USB and/or D-Sub activity
You can simultaneously connect and use the Joystick via USB and D-Sub ports

Circuit Board Dimensions:

Width: 50.8mm
Height: 20.3mm

Package Includes:

One IndiJoy Circuit Board, with all SMD parts soldered, and Firmware flashed
One 1x5 Pin Header
One 1x3 Pin Header
One 2x5 Pin Header
Two 2x4 Pin Headers

All Pin Headers are enclosed but not soldered to the Circuit Board!

No further parts are included, you will need to supply other parts yourself, like the joystick, buttons, switches, display, etc. but the downloadable PDF manual gives purchasing hints and tips, and search terms for Online stores like Ebay or AliExpress.
