Generic proto shield 100% compatible to Arduino Mega 2560, including seven female headers

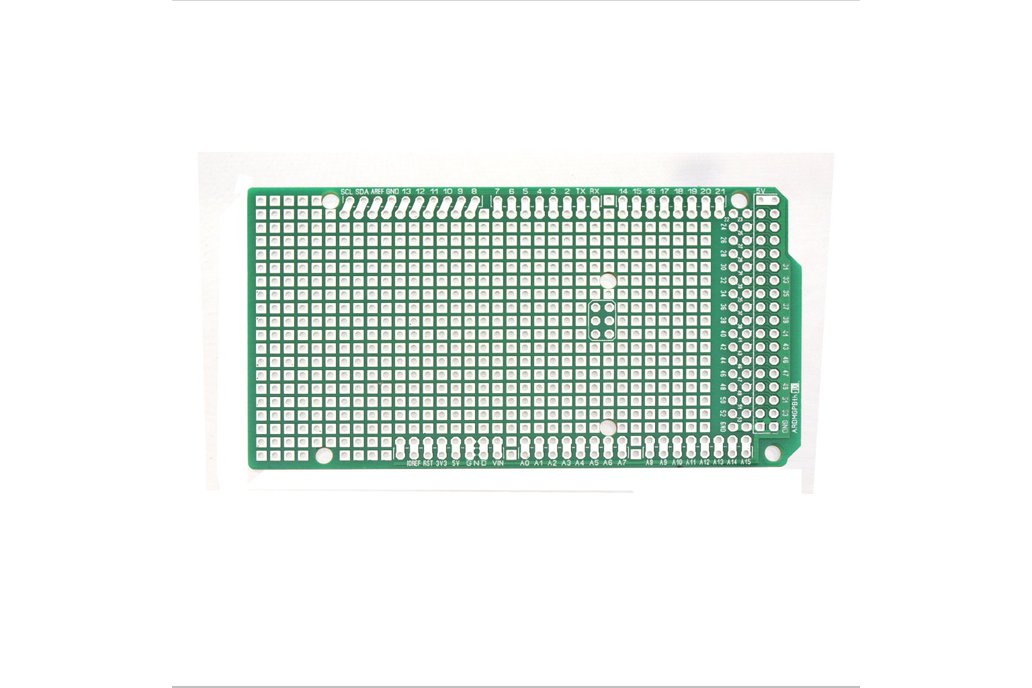

The PCB is 100% format compatible to Arduino Mega 2560. It has a 2.54mm / 100 mil spaced hole pattern and provides the maximum space for free circuit design. More than 600 holes are available for free circuit design. All assigned Arduino ports have solder points next to the holes of the header pins.

Material is FR-4 Epoxy. Copper thickness is 35 µm (1 oz). The board is double sided, components can be placed on both sides. The through holes are plated and connect both sides with each other. The pitch of the through holes is 2.54 mm (100 mil), diameter 1 mm (39 mil) to 1.1 mm (43 mil). The surface of the holes is tinned. All other parts of the board are covered with solder stop.

Six female headers with long pins allow the board to be stacked on an Arduino Uno board or on top of other shields. The length the pins is provides a safety distance to the USB header of 2-3 mm. Also, a 3x2 pin GPIO header is provided to connect to the Arduino GPIO port. Altogether it are seven headers.

(Please note: Any additional components not mentioned in the item descriptions as well as the Arduino Mega on one or more of the images shows the usage of the Proto Shield and are not included in the offer).
