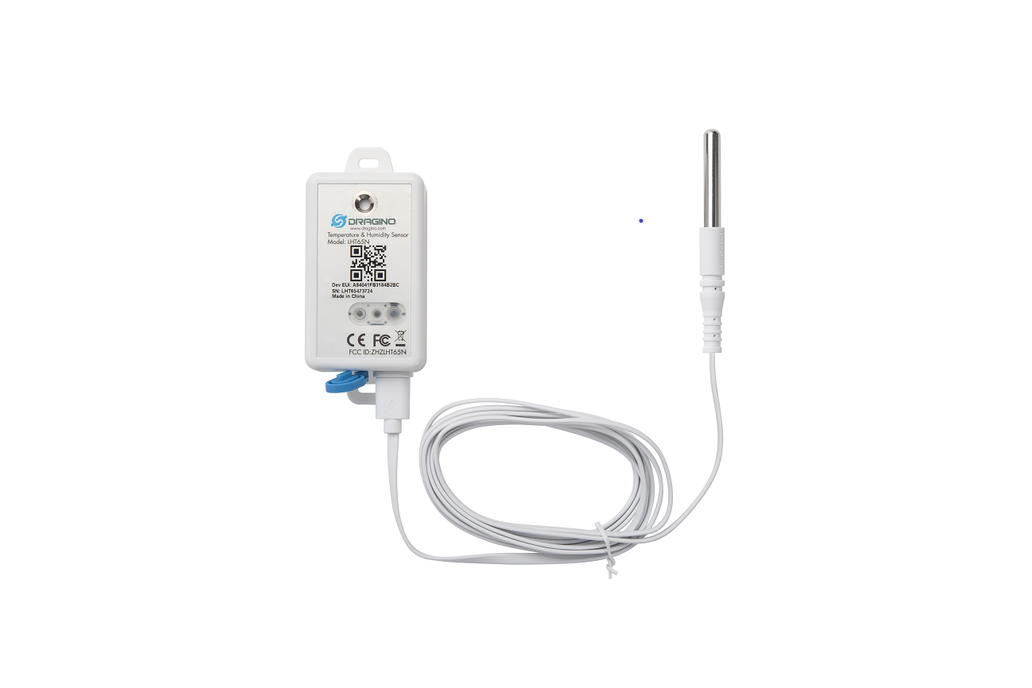

The Dragino LHT65N-NIS is a Traceable Temperature Sensor is a Long Range LoRaWAN Sensor. It includes a built-in Temperature & Humidity sensor and has an external NIST traceable probe which has a unique certificate from NIST Certificate Lab.

The LHT65N-NIS allows users to send data and reach extremely long ranges. It provides ultra-long range spread spectrum communication and high interference immunity whilst minimizing current consumption. It targets professional wireless sensor network applications such as medicine storage, hospital application, cold chain, food safety and so on.

LHT65N-NIS supports Datalog feature. It will record the data when there is no network coverage and users can retrieve the sensor value later to ensure no miss for every sensor reading.

LHT65N-NIS has a built-in 2400mAh non-chargeable battery which can be used for up to 10 years*.

LHT65N-NIS is full compatible with LoRaWAN v1.0.3 Class A protocol, it can work with a standard LoRaWAN gateway.

The actual battery life depends on how often to send data, please see battery analyzer chapter.

Feature:

LoRaWAN Class A protocol Frequency Bands: CN470/EU433/KR920/US915/EU868/AS923/AU915 Built-in Temperature & Humidity sensor Unique NIST Certificate External NIST Traceable probe Tri-color LED to indicate status Datalog feature AT Commands to change parameters Remote configure parameters via LoRaWAN Downlink Firmware upgradable via program port Built-in 2400mAh battery used for up to 10 year*

Applications: medicine storage hospital application cold chain food safety

specifications:

Built-in Temperature Sensor: Resolution: 0.01 °C Accuracy Tolerance : Typ ±0.3 °C Long Term Drift: < 0.02 °C/yr Operating Range: -40 ~ 80 °C Built-in Humidity Sensor:

Resolution: 0.04 %RH Accuracy Tolerance : Typ ±3 %RH Long Term Drift: < 0.25 RH/yr Operating Range: 0 ~ 96 %RH External Probe :

Unique NIST Certificate Traceable probe

Documents DataSheet, Document Base,Certificate User Manual -- Online Latest Shared Folder for all Dragino Products

Package Includes:

1 x LHT65N-NIS LoRaWAN NIST Traceable Temperature Sensor 1 x raceable Probe. 1 x External LoRa Antenna.

Dimension and weight:

Device Size: 13.5 x 7 x 3 cm Weight: 105g Package Size: 14.5 x 8 x 5 cm Weight: 170g

Order Info:

Model: LHT65N-NIS-XX

XX: The default frequency band

AS923: LoRaWAN AS923 band AU915: LoRaWAN AU915 band EU433: LoRaWAN EU433 band EU868: LoRaWAN EU868 band KR920: LoRaWAN KR920 band US915: LoRaWAN US915 band IN865: LoRaWAN IN865 band CN470: LoRaWAN CN470 band

Shipping Notice

• We only support express shipping because of included battery
• Prices are exclusive of local taxes and import duties
