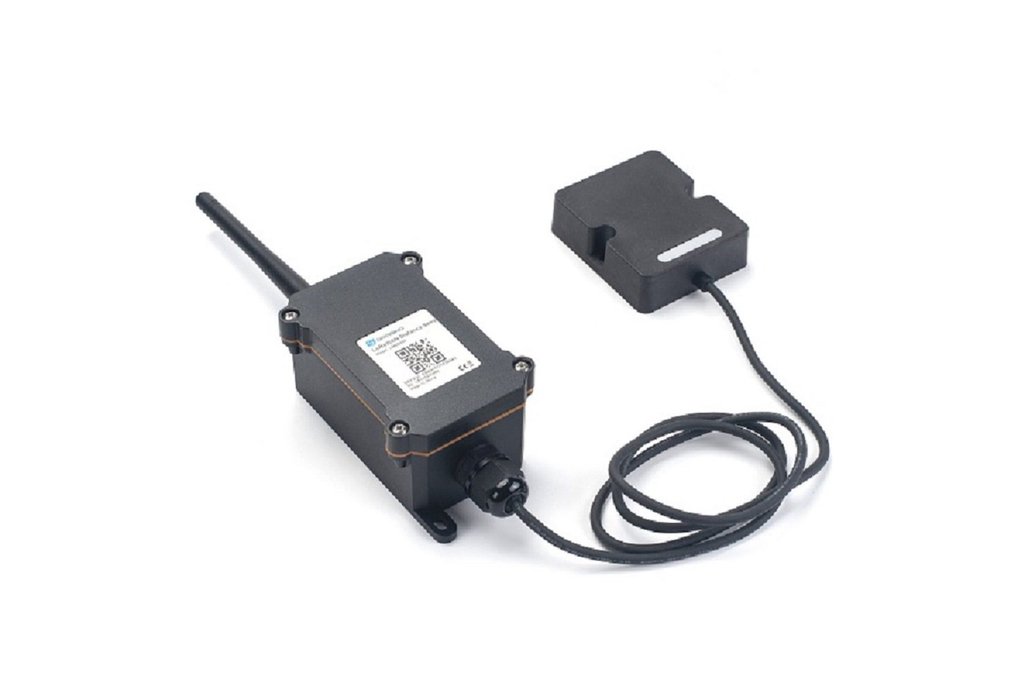

The Dragino LMDS200 is a LoRaWAN Microwave Radar distance sensor. It uses 24Ghz Microwave to detect the distance between the sensor and different objects. Compare vs the ultrasonic or Lidar measurement method, Microwave Radar is more reliable for condensation / dusty environments. It can sense the correct distance even there is water or thick dust on top of the sensor.

The LMDS200 can be applied to scenarios such as horizontal distance measurement, parking management system, object proximity and presence detection, intelligent trash can management system, robot obstacle avoidance, automatic control, sewer, etc.

LMDS200 can measure two distances: the closest object and the next object behind the closest one.

LMDS200 supports the Alarm Feature, the user can set the LMDS200 to uplink data in a short interval when the distance is out of configured range.

The LoRa wireless technology used in LMDS200 allows devices to send data and reach extremely long ranges at low data-rates. It provides ultra-long range spread spectrum communication and high interference immunity whilst minimizing current consumption.

LMDS200 is powered by an 8500mAh Li-SOCI2 battery, it is designed for long term use up to 5 years.

Each LMDS200 is pre-load with a set of unique keys for LoRaWAN registrations, register these keys to local LoRaWAN server and it will auto connect after power on.

Features:

LoRaWAN 1.0.3 Class A Ultra-low power consumption Microwave Radar for distance detection Short uplink interval for Distance Alarm Monitor Battery Level Bands: CN470/EU433/KR920/US915/EU868/AS923/AU915/IN865 AT Commands to change parameters Uplink on periodically Downlink to change configure 8500mAh Battery for long term use Wall Mountable Outdoor Use

Applications:

Horizontal distance measurement Liquid level measurement Parking management system Object proximity and presence detection Intelligent trash can management system Robot obstacle avoidance Automatic control, sewer Bottom water level monitoring

Documents

Download Directory

Package Includes:

1 x LMDS200

Dimensions and Weight:

Package Dimension: Weight :

LMDS200-XXX

XXX: the default frequency band

EU433: Default frequency band EU433 CN470: Default frequency band CN470 EU868: Default frequency band EU868 IN865: Default frequency band IN865 KR920: Default frequency band KR920 AS923: Default frequency band AS923 AU915: Default frequency band AU915 US915: Default frequency band US915

Shipping Notice

• We only support express shipping because of included battery
• Prices are exclusive of local taxes and import duties
