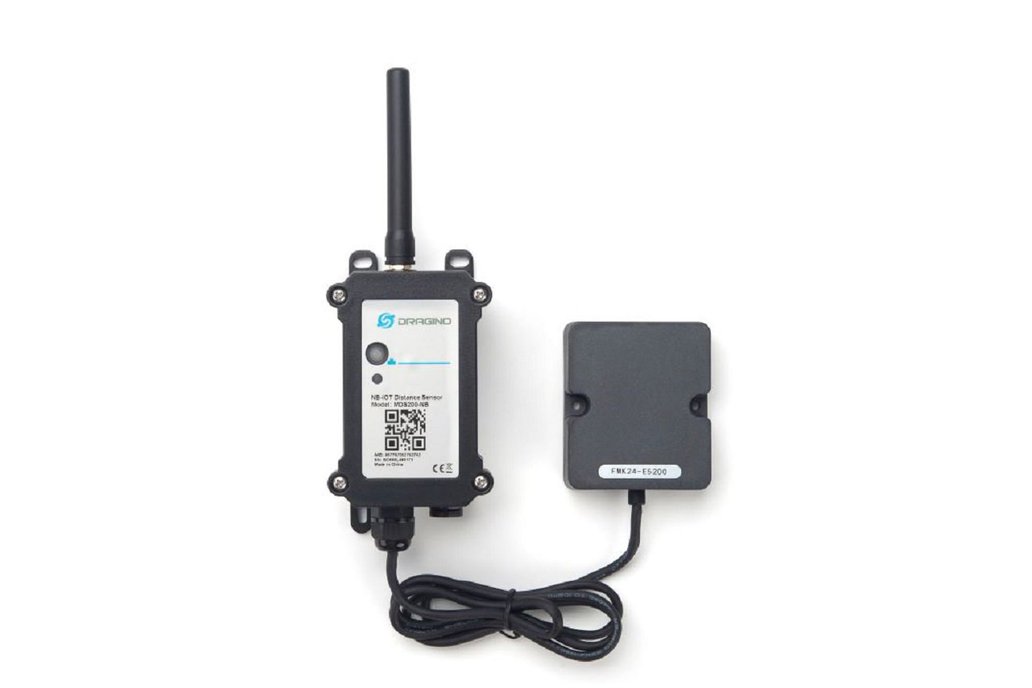

The Dragino MDS200-NB is a NB-IoT Microwave Radar distance Sensor for Internet of Things solution. It uses 24Ghz Microwave Radar to detect the distance between sensor and different objects. Different from ultrosonic or Lidar measurement. Microwave Radar is more reliable for condensation / dusty environment. It can sense correct distance even there is water or think dust on top of the sensor.

The MDS200-NB can be applied to scenarios such as horizontal distance measurement, parking management system, object proximity and presence detection, intelligent trash can management system, robot obstacle avoidance, automatic control, sewer, etc.

MDS200-NB supports different uplink methods including MQTT, MQTTs, UDP & TCP for different application requirement, and support uplinks to various IoT Servers.

MDS200-NB supports BLE configure and OTA update which make user easy to use.

MDS200-NB is powered by 8500mAh Li-SOCI2 battery, it is designed for long-term use up to several years.

MDS200-NB has optional built-in SIM card and default IoT server connection version. Which makes it works with simple configuration.

Features:

NB-IoT Bands: B1/B2/B3/B4/B5/B8/B12/B13/B17/B18/B19/B20/B25/B28/B66/B70/B85 @H-FDD Ultra-low power consumption 2Ghz Microwave Radar for distance detection Measure Range: 0.5 ~ 20m Accuracy: ±0.1m Resolution: 0.01m Measurement Angle: 78 degrees horizontal and 23 degrees vertical Multiply Sampling and one uplink Support Bluetooth v5.1 remote configure and update firmware Uplink on periodically Downlink to change configure 8500mAh Battery for long term use Nano SIM card slot for NB-IoT SIM

Applications:

Horizontal distance measurement Liquid level measurement Parking management system Object proximity and presence detection Intelligent trash can management system Robot obstacle avoidance Automatic control Sewer Bottom water level monitoring

Specifications:

Common DC Characteristics:

Supply Voltage: 2.5v ~ 3.6v Operating Temperature: -40 ~ 85°C Radar probe specification:

Measuring Method: FMCW Frequency: 24.000~24.500 GHz Measurement output power: 6dBm Measure Range : 0.5 ~ 20m Accuracy: ±0.1m Resolution: 0.01m Measurement Angle : 78 degrees horizontal and 23 degrees vertical LoRa Spec:

NB-IoT Module: BC660K-GL

Support Bands:

B1 @H-FDD: 2100MHz B2 @H-FDD: 1900MHz B3 @H-FDD: 1800MHz B4 @H-FDD: 2100MHz B5 @H-FDD: 860MHz B8 @H-FDD: 900MHz B12 @H-FDD: 720MHz B13 @H-FDD: 740MHz B17 @H-FDD: 730MHz B18 @H-FDD: 870MHz B19 @H-FDD: 870MHz B20 @H-FDD: 790MHz B25 @H-FDD: 1900MHz B28 @H-FDD: 750MHz B66 @H-FDD: 2000MHz B70 @H-FDD: 2000MHz B85 @H-FDD: 700MHz Battery:

Li/SOCI2 un-chargeable battery Capacity: 8500mAh Self-Discharge: <1% / Year @ 25°C Max continuously current: 130mA Max boost current: 2A, 1 second Power Consumption:

STOP Mode: 10uA @ 3.3v Max transmit power: 350mA@3.3v

Documents:

DataSheet, Document Base User Manual -- Online Latest Shared Folder for all Dragino Products

Package Includes:

MDS200-NB NB-IoT Microwave Radar distance sensor x 1 External antenna x 1

Dimensions and Weight:

Package Dimension: Weight :

Order Info: Part Number: MDS200-NB-XX

XX:

GE: General version ( Exclude SIM card) 1D: with 1NCE* 10 years 500MB SIM card and Pre-configure to DataCake server 1NCE SIM Card NB-IoT network coverage: Austria, Belgium, Bulgaria, Croatia, Czech Republic, Denmark, Finland, Germany, Great Britain, Greece, Hungary, Ireland, Italy, Latvia, Malta, Netherlands, Norway, Puerto Rico, Russia, Slovak, Republic, Slovenia, Spain, Sweden, Switzerland, Taiwan, USA, US Virgin Islands

Shipping Notice

• We only support express shipping because of included battery
• Prices are exclusive of local taxes and import duties
