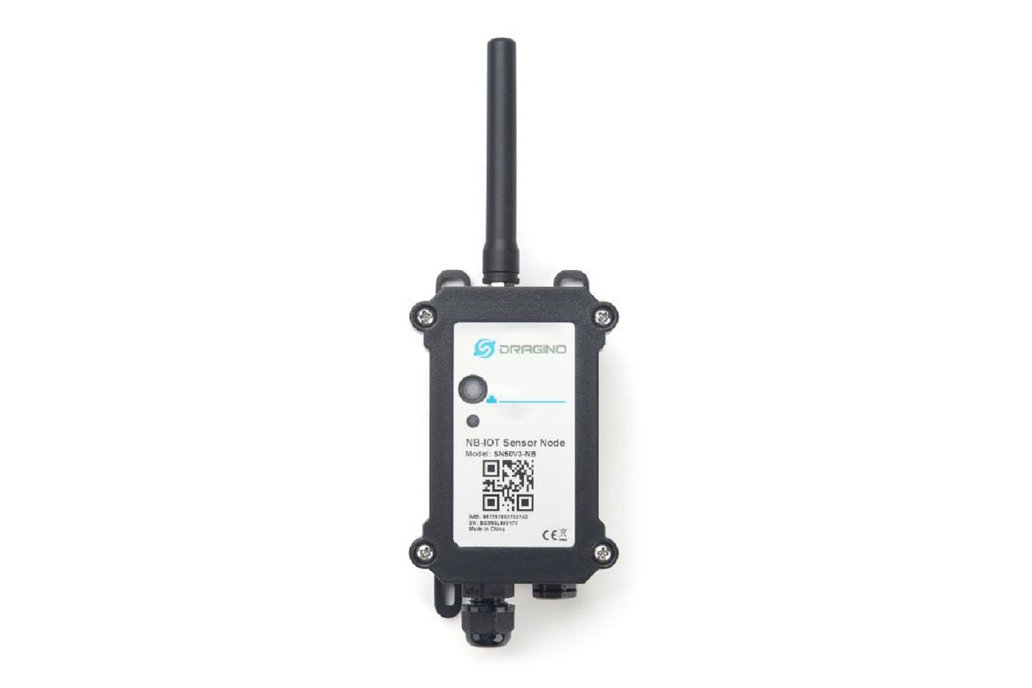

SN50v3-NB is a Long Range NB-IoT Sensor Node.
Sold By DRAGINO TECH
Buy with confidence.
Our Tindie Guarantee protects your purchase from fraud. Learn More
** SN50v3-NB is a Long Range NB-IoT Sensor Node. It is designed to facilitate developers to quickly deploy industrial level NB-IoT solutions. It helps users to turn the idea into a practical applica…
Read More…** SN50v3-NB is a Long Range NB-IoT Sensor Node. It is designed to facilitate developers to quickly deploy industrial level NB-IoT solutions. It helps users to turn the idea into a practical application and make the Internet of Things a reality. It is easy to program, create and connect your things everywhere.
** SN50v3-NB wireless part is based on NB model allows the user to send data and reach extremely long ranges at low data-rates.It provides ultra-long range spread spectrum communication and high interference immunity whilst minimising current consumption.It targets professional wireless sensor network applications such as irrigation systems, smart metering, smart cities, building automation, and so on.
** SN50v3-NB uses STM32l0x chip from ST, STML0x is the ultra-low-power STM32L072xxxx microcontrollers incorporate the connectivity power of the universal serial bus (USB 2.0 crystal-less) with the high-performance ARM® Cortex®-M0+ 32-bit RISC core operating at a 32 MHz frequency, a memory protection unit (MPU), high-speed embedded memories (192 Kbytes of Flash program memory, 6 Kbytes of data EEPROM and 20 Kbytes of RAM) plus an extensive range of enhanced I/Os and peripherals.
** SN50v3-NB is an open source product, it is based on the STM32Cube HAL drivers and lots of libraries can be found in ST site for rapid development.
** SN50v3-NB supports different uplink methods including MQTT, MQTTs, UDP & TCP for different application requirement, and support uplinks to various IoT Servers.
** SN50v3-NB supports BLE configure and OTA update which make user easy to use.
** SN50v3-NB is powered by 8500mAh Li-SOCI2 battery, it is designed for long-term use up to severa years.
** SN50v3-NB has optional built-in SIM card and default IoT server connection version. Which makes it works with simple configuration.
Features:
Applications:
Specifications:
Common DC Characteristics:
I/O Interface:
Battery output (2.6v ~ 3.6v depends on battery)
NB-IoT Spec:
NB-IoT Module: BC660K-GL
Support Bands:
B1 @H-FDD: 2100MHz
Battery:
Li/SOCI2 un-chargeable battery
Power Consumption:
STOP Mode: 10uA @ 3.3v
Documents:
Order Info:
Part Number: SN50v3-NB-XX-YY
XX:
GE: General version ( Exclude SIM card) 1T: with 1NCE * 10 years 500MB SIM card and Pre-configure to ThingsEye server YY: The grand connector hole size
M12: M12 hole M16: M16 hole
