What is it?

As an upgraded version of the Crowpanel HMI 7-inch display, the CrowPanel Advance ESP32 7-inch display is a powerful HMI touch screen equipped with a 800*480 resolution IPS screen. It uses the ESP32-S3 chip as the core processor. This chip is equipped with an Xtensa 32-bit LX7 dual-core processor with a main frequency of up to 240MHz, equipped with 512KB SRAM, 8M PSRAM and 16M Flash, providing the device with powerful data processing capabilities. The integrated 2.4GHz Wi-Fi and BLE functions, combined with the built-in RF antenna, ensure the stability and reliability of the wireless connection. Also, the diverse interfaces and low power make this 7-inch screen ideal for HMI applications that need strong wireless connectivity. It supports the Arduino IDE, Espressif IDF, PlatformIO and MicroPython. It is compatible with the LVGL graphics library and supports MicroPython and C++.

This 7-inch screen uses an IPS panel, and the 178°wide viewing angle allows you to enjoy a vivid visual experience at any angle. Capacitive touch technology enables smooth, responsive interactions. It makes every touch accurate and intuitive.

A notable feature of the CrowPanel Advance 7-inch display is its integrated AI function. Users can interact by using the microphone and speaker. This includes voice recognition and speech synthesis. They can have seamless conversations with smart assistants to get information. Another highlight of this screen is that its modular design provides diversified wireless communication options. Users can replace modules as needed. They support multiple protocols: Zigbee, LoRa, nRF2401, Matter, Thread, and Wi-Fi 6. In addition, when paired with the SX1262 wireless module, it can support access to the Meshtastic network(An open source, off-grid, decentralized, mesh network built to run on affordable, low-power devices). One screen and different modules can meet the wireless connection needs of different scenarios.

Why did you make it?

This upgrade integrates cutting-edge wireless communication technology, optimized port layout, excellent display touch performance and larger storage space. These improvements enhance the flexibility and reliability of connectivity, provide users with more diverse choices and wider application possibilities, and meet the stringent requirements of modern intelligent systems for remote monitoring and control.

What makes it special?

• Equipped with ESP32-S3-WROOM-1 module as the core controller, it provides more excellent performance;
• Main frequency up to 240MHz, equipped with 512KB SRAM, 8M PSRAM and 16M Flash;
• 800*480 7.0 inches, with driver IC SC7277;
• IPS panel, 178° wide viewing angle, supports capacitive touch;
• Intelligent AI function, equipped with high-performance microphone and speaker, users can have seamless conversations with smart assistants through voice command interaction, voice recognition and speech synthesis;
• Built-in LVGL demonstration interface and Arduino examples, plug and play;

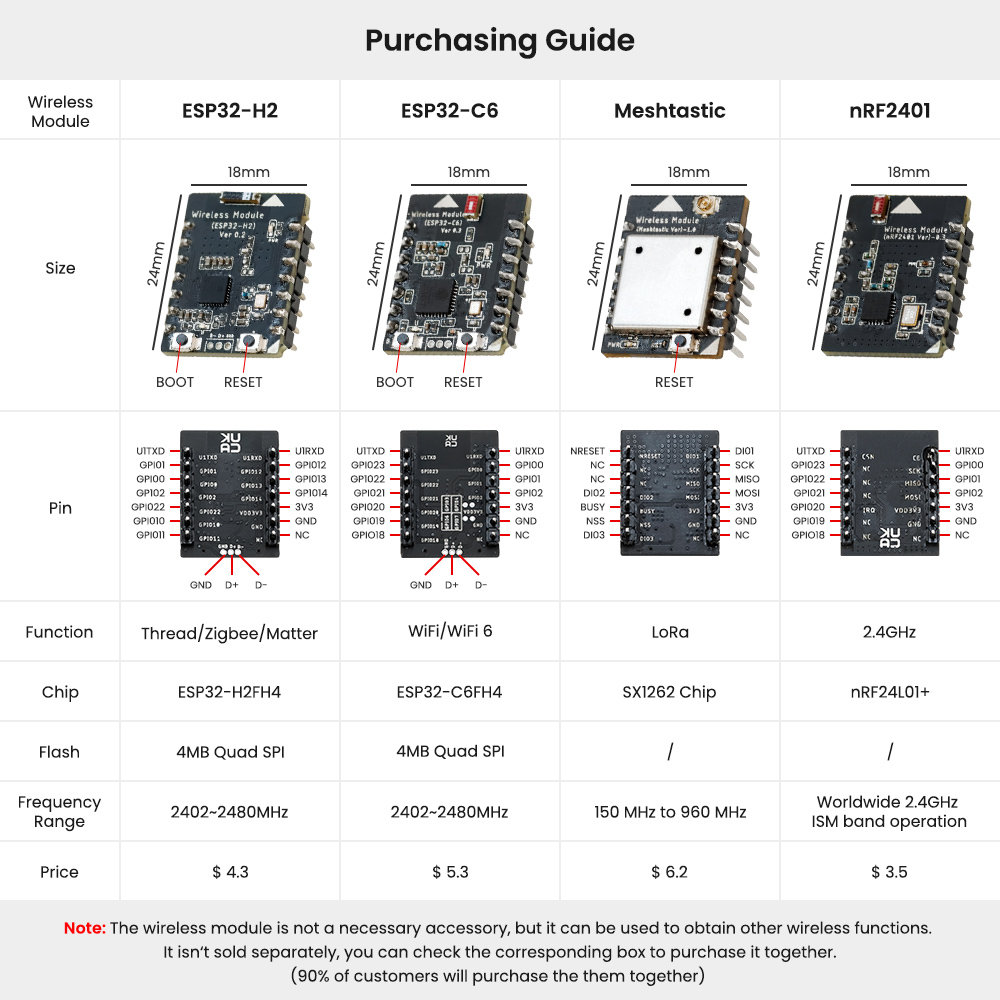

• Replaceable wireless communication module can support multiple communication protocols such as Zigbee, LoRa, nRF2401, Matter, Thread and Wi-Fi 6 by replacing different modules;
• Purchase the SX1262 wireless module to support access to the Meshtastic network;
• Real-time clock function, ensuring the continuity and accuracy of system time in the event of power failure;
• The peripheral port adopts vertical and built-in terminal design, which is more in line with the compact and integrated design requirements of embedded devices.

Integrated Intelligent AI Functions

Voice interaction is achieved through the microphone and speaker, allowing seamless conversations with the smart assistant and easy access to information.Crowpanel Advance 7inch HMI display support AI function

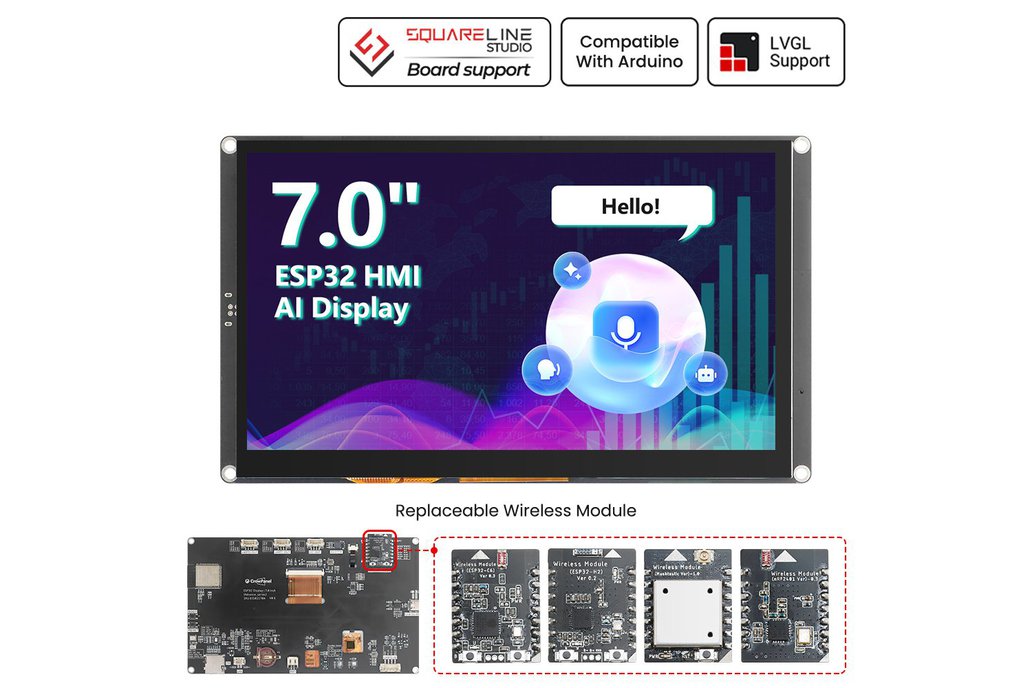

Replaceable Wireless Module Design, Provides Diversified Wireless Communication Options

By replacing the module, it supports multiple communication protocols such as Zigbee, LoRa, nRF2401, Matter, Thread and Wi-Fi 6. One screen can meet various wireless communication requirements.

IPS Panel With 178°Wide Viewing Angle

The 178°wide viewing angle allows you to enjoy a vivid visual experience at any angle.

Support Multiple Development Environments

It supports multiple development environments such as Arduino IDE, Espressif IDF, PlatformIO and MicroPython, and development languages like MicroPython, and C++ to meet the needs of different developers and make every project possible.

Support Open Source Graphics Library - LVGL

It supports the LVGL graphics library, and you can design various UIs.

Design And Build UI Easily With SquareLine Studio

Easily design and build your own LVGL UI with SquareLine Studios, simplifying design and development.

Squareline Vision has entered BETA, sign up now to get 40% off all licenses.

Connect With More Than 150+ Crowtail Sensors

Application Scenario

Hardware Overview
