What is it?

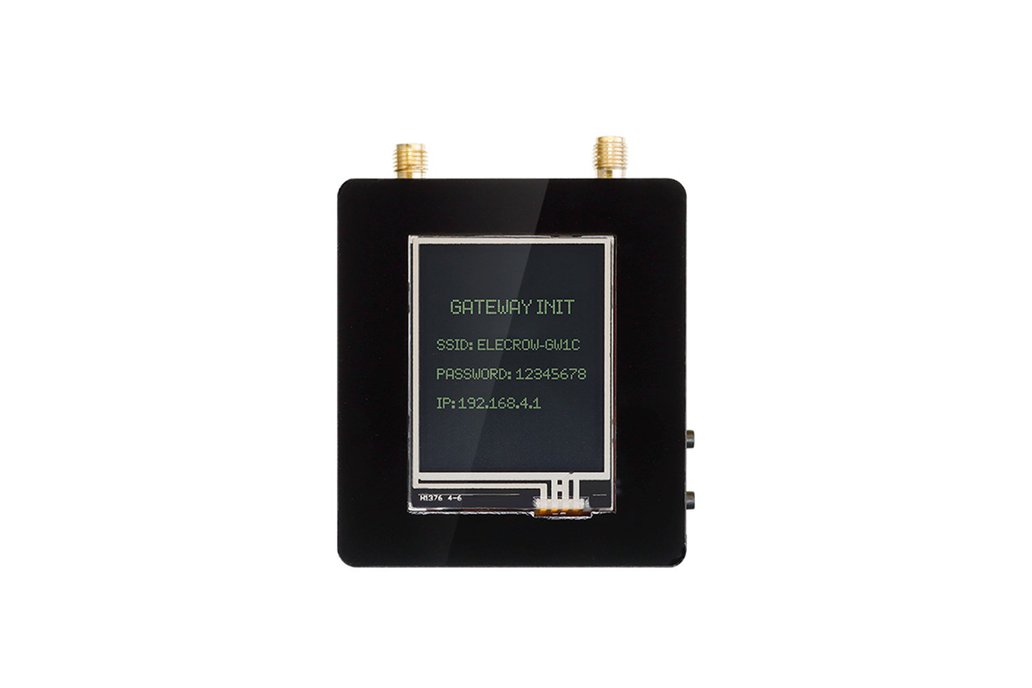

This single-channel gateway is the best initial device choice for learning and accessing Lorawan networks. It is designed to provide internet connectivity for our Lora series products.

It uses ESP32-WROOM-32 as the main controller, with Ra-01H module as the Lora RF transceiver module, and has two firmware versions available for different frequency bands (868MHz and 915MHz). The ESP-WROOM-32 itself supports WiFi and Ethernet interfaces and can connect to the TTN backend network to enable gateway settings and data transmission monitoring. It supports Lorawan 1.0.3 and is compatible with other Lorawan sensors. In addition, we have equipped it with a 1.8-inch resistive touch screen with a resolution of 128x160, which uses an SPI interface.

Why did you make it?

LoRaWan Gateway Module can be used with LoRa node modules, LoRa development boards, and other devices to build a LoRa WAN IoT network, providing a reliable communication solution for applications in smart homes, industry, and agriculture control, among others.

What makes it special?

• Uses ESP32 WROOM 32 as the main controller, with a dual-core 32-bit LX6 microprocessor from Xtensa, providing better performance.
• Integrates RA-01H module supports frequency band: 803MHz - 930MHz.
• Onboard 1.8-inch 128*160 SPI-TFT-LCD, ST7735S driver chip
• Not only supports ESP32 WIFI network connection but also has a 10/100Mbps RJ45 interface that allows Ethernet connection
• Compatible with Arduino and Micropython, making it easier for developers to create custom applications and functionality
• Exquisite acrylic protective shell and small and portable design, making it easy to carry and use.
