What is it?

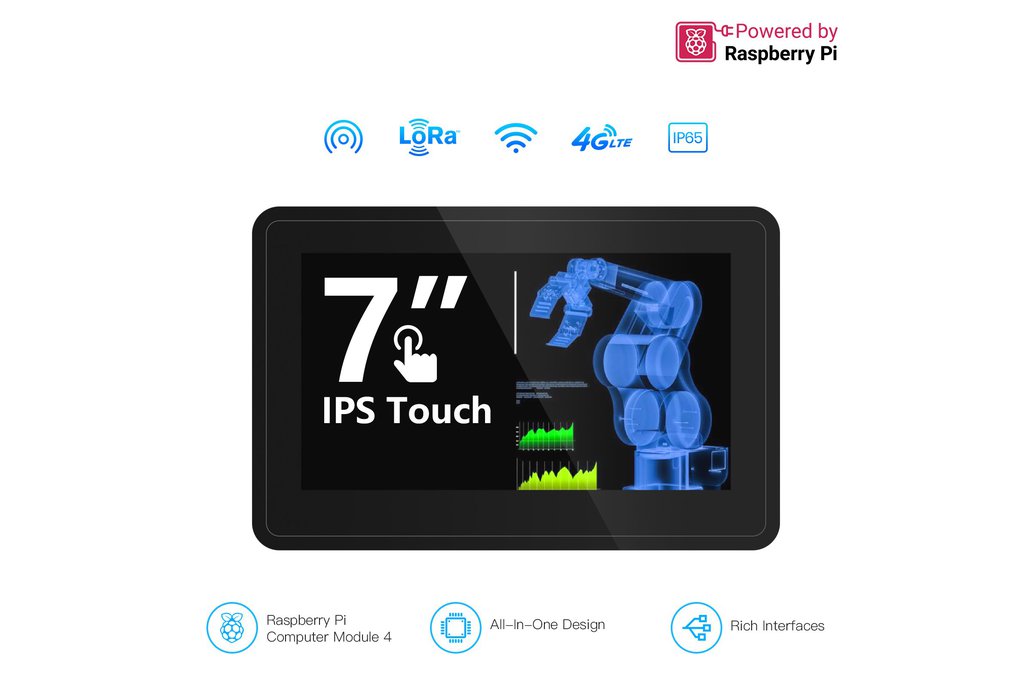

Want a multifunctional integrated industrial control device? Pi Terminal, a new star in the industrial world, is looking forward to serving you! The 7-inch Pi Terminal with 1024*600 resolution is a multifunctional industrial control device based on Raspberry Pi CM4. It combines powerful hardware configuration with rich software ecology and is designed to meet the needs of diverse industrial applications. It is equipped with the powerful Raspberry Pi Compute Module 4 as the main control, with excellent real-time performance, and can quickly respond to and process real-time control and monitoring tasks. A highlight is the rich industrial interfaces and functional modules, including CAN bus, RS232/RS485, isolated digital IO, differential input ADC, relay control, etc., which fully meet the communication and control needs with various sensors, actuators and other devices. In addition, it also reserves speaker, headphone, microphone sockets and 4 programmable button interfaces, which makes it convenient for users to customize functions according to actual needs, increasing the interactivity and flexibility of the device. Buy LoRa Module together, click here.

Communication capability is another highlight of Pi Terminal. It integrates WiFi, BLE, and reserves Mini PCIE interfaces for 4G and LoRa. At the same time, it provides two GbE LAN (Gigabit Ethernet) to ensure high-speed data transmission and remote monitoring between devices.

Not only is the hardware outstanding, the software is also not inferior. Pi Terminal supports a rich software ecosystem based on Raspberry Pi and is compatible with the Node-RED programming tool, giving users the ability to easily create and manage IoT applications. Support for the OpenGL ES 3.0 graphics library makes it even more capable in graphics processing.

Pi Terminal adopts a semi-open structure with acrylic shell and excellent protection performance. The IP65 front panel effectively resists dust and water droplets, the electronic components support high-temperature operation, and the industrial-grade design can operate stably even in harsh industrial environments, easily coping with the challenges of harsh industrial environments.

Why did you make it?

Elecrow CM4 Pi Terminal adopts a multi-functional integrated design, integrating HMI, PLC, gateway, tablet PC and other functions, unifying data flow to create a full-function integrated platform. Its 7-inch 1024*600 IPS screen, 5-point capacitive touch operation, and flexible and diverse external installation methods meet the usage and assembly needs of different types of occasions. This powerful device is widely used in many fields such as industrial intelligent manufacturing, construction machinery, artificial intelligence factory automation, smart cities, industrial workshops, etc. It has high adaptability and flexibility and is a true integrated industrial Internet of Things gateway device.

What makes it special?

• Using Raspberry Pi CM4 as the main controller, it has excellent computing power and performance, providing strong power for industrial applications;
• Integrated Node-RED visual programming, built-in Node-RED process editing and one-click deployment, compatible with all software running on Raspberry Pi. This powerful and intuitive programming environment allows developers to quickly build prototypes and test, greatly improving development efficiency and productivity;
• Powerful communication capabilities, supporting multiple wireless communication protocols such as WiFI, Bluetooth-compatible, 4G, and LoRa, equipped with Gigabit Ethernet, meeting the needs of high-speed wired networks, and enabling high-speed data transmission and remote monitoring between devices;
• Pi Terminal's multifunctional integrated design can be used as full-function devices such as HMI, PLC, gateway, tablet PC, etc., unifying data flow and creating a full-function integrated platform;
• Rich industrial interfaces, with CAN bus interface, support RS232/RS485 serial communication, integrated DIO, ADC, relay and other interfaces, fully meet the needs of equipment interconnection and control;
• Flexible customization, reserved 4 programmable button interfaces, with speaker and microphone interfaces, can be flexibly configured according to needs;
• Low power consumption, the maximum power consumption is only 9W, especially suitable for energy-saving scenarios; and the 12V~36V wide voltage design can better adapt to different host power supply solutions;
• Industrial-grade design, IP65 front panel dust and waterproof, electronic components support high temperature operation, hardware design fully considers industrial requirements, suitable for harsh industrial environments.

All in one design-7" Pi Terminal

Powerful core, excellent performance, a new generation of industrial all-in-one PC

CM4-excellent Computing Ability

CPU is BCM2711, quad-core Cortex A72 64-bit processor, 4GB storage, more powerful performance.7“ Pi Terminal industrial PC with Powerful CM4 Chip

Rich system and software compatibility

Compatible with Raspbian and Ubuntu systems, pre-installed with Node-RED software, compatible with all software running on Raspbian.

Multiple wireless connectivity

Supports multiple wireless communication protocols such as WiFI, Bluetooth-compatible, 4G, and LoRa.

Various Interfaces and Components

Rich industrial interfaces and buttons meet the device's diverse connection and control needs.

Application Scenario

Hardware Overview

Application

• Industrial automation: manufacturing, process industry (such as chemical, petroleum, electricity, etc.), machinery and equipment manufacturing;
• Intelligent manufacturing/Industry 4.0 scenarios: smart factories, digital workshops, smart warehousing and logistics;
• Building automation: smart buildings, smart homes, smart buildings;
• Transportation: smart transportation, vehicle information systems, smart buses/railways;
• Other scenarios: medical technology, mining, agriculture, retail, water management, etc.
