Geekcreit® 40pcs FR-4 2.54mm Double Side Prototype

Geekcreit® 40pcs FR-4 2.54mm Double Side Prototype PCB Printed Circuit Board

Sold By elecseller

Geekcreit® 40pcs FR-4 2.54mm Double Side Prototype 1

Geekcreit® 40pcs FR-4 2.54mm Double Side Prototype 2

Geekcreit® 40pcs FR-4 2.54mm Double Side Prototype 3

Geekcreit® 40pcs FR-4 2.54mm Double Side Prototype 4

Geekcreit® 40pcs FR-4 2.54mm Double Side Prototype 5






Buy with confidence.

Our Tindie Guarantee protects your purchase from fraud. Learn More

Welcome , we are Elecseller group, and we've worked for more than 5 years. You will have a great experience with us, your satisfaction is our success. ⭐⭐⭐⭐⭐

Geekcreit® 40pcs FR-4 2.54mm Double Side Prototype PCB Printed Circuit Board

Specification: Total 40pcs, each size 10 pcs Grid : 0.1" (2.54mm) Thickness : 1.6mm (5pcs) Hole diameter : about 1mm The diameter of 4 large positioning holes: 4mm Material : FR-4 (glass fiber) All …

Read More…

Specification:

Total 40pcs, each size 10 pcs
Grid : 0.1" (2.54mm)
Thickness : 1.6mm (5pcs)
Hole diameter : about 1mm
The diameter of 4 large positioning holes: 4mm
Material : FR-4 (glass fiber)
All holes are plated through
Both sides are identical

Dimension	Hole (Column x Row)	Quantity
50 x 70mm, 1.97" x 2.76"	:24 x 18:	:10:

Dimension & Quantity

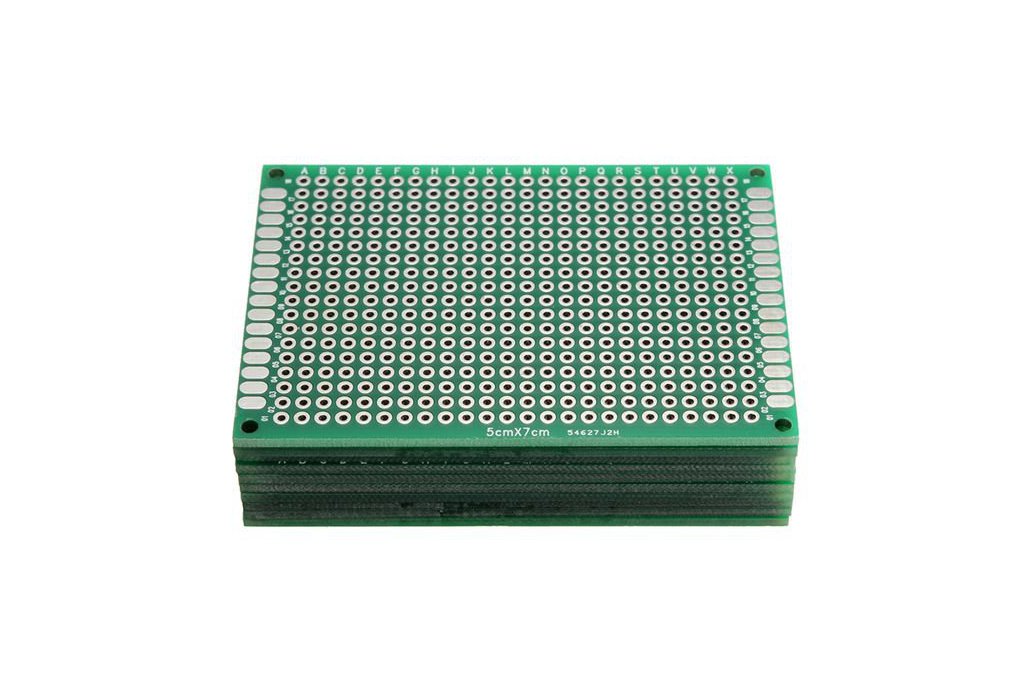

50 x 70mm, 1.97" x 2.76" - 10 pieces total
40 x 60mm, 1.57" x 2.36" - 10 pieces total
30 x 70mm, 1.18 x 2.76" - 10 pieces total
20 x 80mm, 0.79" x 3.15" - 10 pieces total

Hole (column x Row)

24 x 18
20 x 14
24 x 10
28 x 6

Package includes:

40 x FR-4 double side prototype PCB printed circuit board
