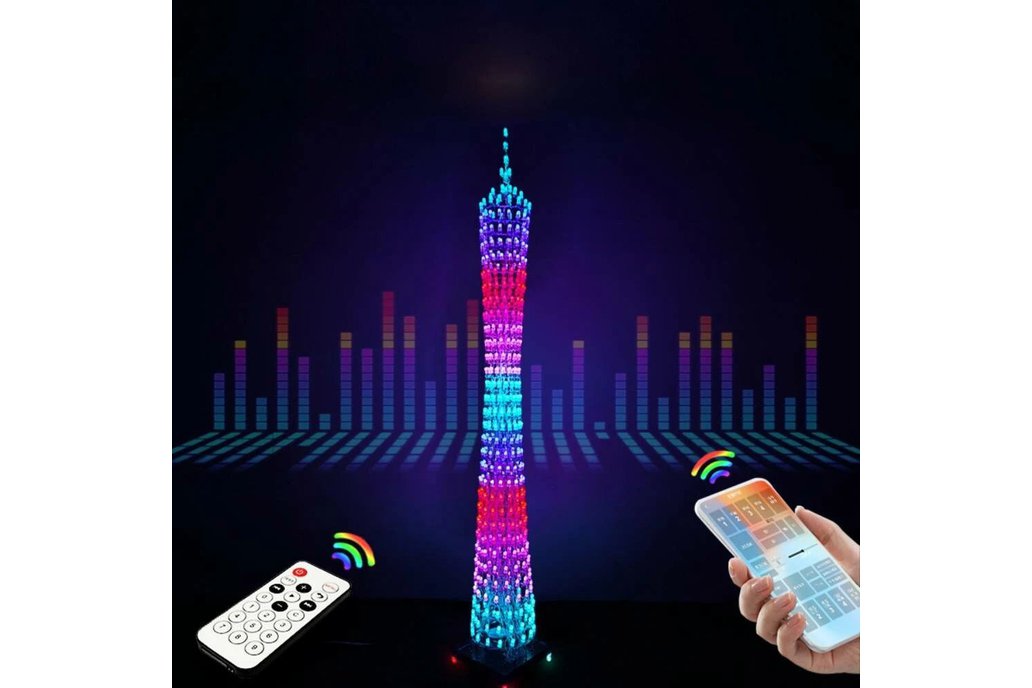

2025-01-17T23:18:53.215Z-image_45 - Copie.jpg

Buy with confidence.

Our Tindie Guarantee protects your purchase from fraud. Learn More

Welcome , we are Elecseller group, and we've worked for more than 5 years. You will have a great experience with us, your satisfaction is our success. ⭐⭐⭐⭐⭐

DIY Kit Electronic Training Welding Production Light Cube Canton Tower LED Lights Bluetooth Music Electronic Production Parts

Introduction: 53 animations: the switching, speed, direction and color of the animation can be adjusted by themselves. Among them, 36 kinds of animations can be adjusted by themselves, and the rest…

Introduction:

53 animations: the switching, speed, direction and color of the animation can be adjusted by themselves. Among them, 36 kinds of animations can be adjusted by themselves, and the rest are all seven color animations, with 4 pieces of custom colors (4 pieces: top layer, middle upper layer, middle lower layer and bottom layer)
13 animation spectrum: 12 music spectrum and 1 mixed spectrum
Built in amplifier module and speaker: no need to connect external speaker
Multiple control modes: support infrared remote control and Android App control
Bluetooth music player: support Bluetooth 5.0

Parameter:

Size: 100 * 100 * 1000mm (lamp ring version) / 100 * 100 * 800mm (ordinary version)
Number of lamp beads: about 550
Product weight: 450g (without shell)
Animation effect: 53 kinds
Animation editing: app custom animation effect
Offline Animation: loop animation
Audio cable: 3.5mm audio cable
LED Driver: MCU control 74hc573, ULN2803 chip driver
Horn type: 3W / 4 Ω
Control mode: infrared remote control, Android App control
Connection type: Bluetooth connection, 3.5mm audio interface
Power parameter: DC5V / 3A (to be purchased separately)

Component list

Name	Welding position	Number
Patch 74HC573D	U1--U12, U17, U17	14
Patch ULN2803	U13, U14	2
8p Female Socket (4x2)		14
40p Chip Socket	U15	1
10v 470uf SMD Electrolytic Capacitor	C1, C10, C5	3
Infrared Receiver	H1	1
Audio Socket		1
DC2.1 Power Socket	S1	1
Red Self-locking Switch	KEY1	1
Singlechip IAP15W4K58S4		1
Chip Diode SS24	D5, D6	2
5mm Plug-In Highlight Colorful	D1, D2, D3, D4	5
Bt401 Dual Mode Bluetooth Module	U16	1
4230e Power Amplifier Module	U22	1
Chip Resistor 100k 0805	R1, R5	3
Chip Resistor 22r 0805	R7, R8, R9	4
Chip Resistor 100r 0805	R6	2
Chip Resistor 1k 0805	R3	2
Chip Resistor 0r 0805	R4, R2	3
Chip Capacitor 104 0805	C3	2
Chip Capacitor 105 0805	C2, C5, C4, C8	5
b0505s Isolated Power Module		1
12mm Copper Pillar		8
25mm Copper Pillar	for horn	4
m3x6 Screw		18
White Ok Line		40m
Audio Cable		1
Welding Lamp Template (3 Different)		3
Remote Control		1
5v3a Power Plug	Optional	1
5mm Rgb Full Color Total Shade		550
Pcb Board (2 Different)		2
4ω3w Horn		1
Horn Cable		2
Pin		112pin about 30cm
Dc2.1 Power Cord		1
Pcb Lamp Ring	Lamp ring version	35
1.5mm Glass Fiber Rod	Lamp ring version	16
5mm Plug-In Fog Colorful Lamp	Lamp ring version	20
