Display driver board for epaper shelf label

Name: Display driver board for epaper shelf label
SKU: 31039
Price: 9.90 USD
Availability: Discontinued

Board to connect a bare epaper display (taken from a used Electronic Shelf Label) to a microcontroller via SPI.

Designed by {Electronics by Nic} in Netherlands

This seller is taking a break until Jan. 1, 2025. Sign up below to get an email when they're back!

Product Retired

This product is no longer available for sale.

The seller may be offering an improved version or it may be hanging out on the beach, enjoying the retired life.

While you're here, check out these other awesome products for sale!

More "driver" Related Products

Prusa MK2/2.5/S Silent Driver Upgrade Board

Custom Circuit Co.

$34.99

Conwy Castle - Simple 4ch LED Driver

Terrain-Tronics

$14.95

Nixie Tube Driver Board (NTDB4) KIT by Omnixie

Omnixie LLC

$29.00

ElectroMage Pro 8x WS2812/APA102 LED Driver

ElectroMage

$95.00

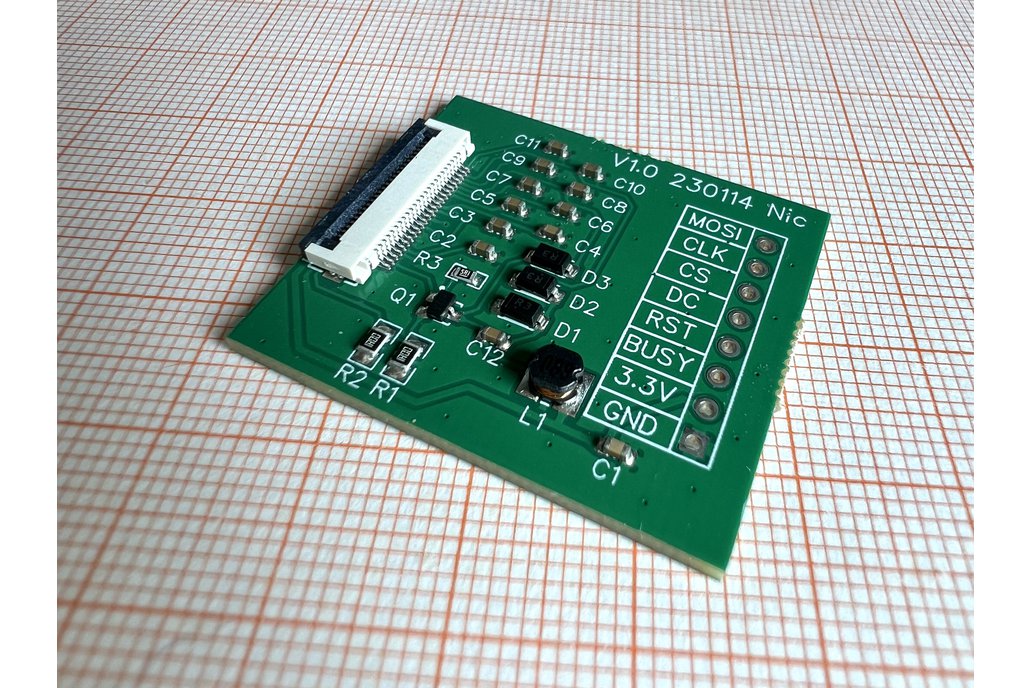

Display driver board for epaper shelf label 1

Display driver board for epaper shelf label 2

Display driver board for epaper shelf label 3

Currently, no products are available.

Board to connect a bare epaper display (taken from a used Electronic Shelf Label) to a microcontroller via SPI.

What is it? This is a ready-to-go PCB to connect a bare epaper display (salvaged from a used Electronic Shelf Label) to a microcontroller (like ESP32) via SPI. Volume discounts if you order two piece…

What is it?

This is a ready-to-go PCB to connect a bare epaper display (salvaged from a used Electronic Shelf Label) to a microcontroller (like ESP32) via SPI.

Volume discounts if you order two pieces or more!

What makes it special?

The driver board is compatible with at least the Solum 2.9" and 1.54" displays. These Electronic Shelf Label displays have the copper contacts of the FPC Connector at the bottom of the cable (in contrast with Waveshare epaper displays, who have the exposed copper contacts at the top). I didn't test any other displays or brands.

The pcb is designed so you can almost make a straight connection to a ESP32 Lolin board. No other components are needed to make it work. Note, this item is just the completely assembled driver board. You provide your own microcontroller and display, and you have to write your own software to display whatever you want on it. On ESP32, you can use the GxEPD2 library to use the display.

I also sell the compatible displays: 2.9" displays and 1.54" displays.
