I'm out of flex-pcb's, and will not order new ones. As an alternative, take a look at the mini AP v3

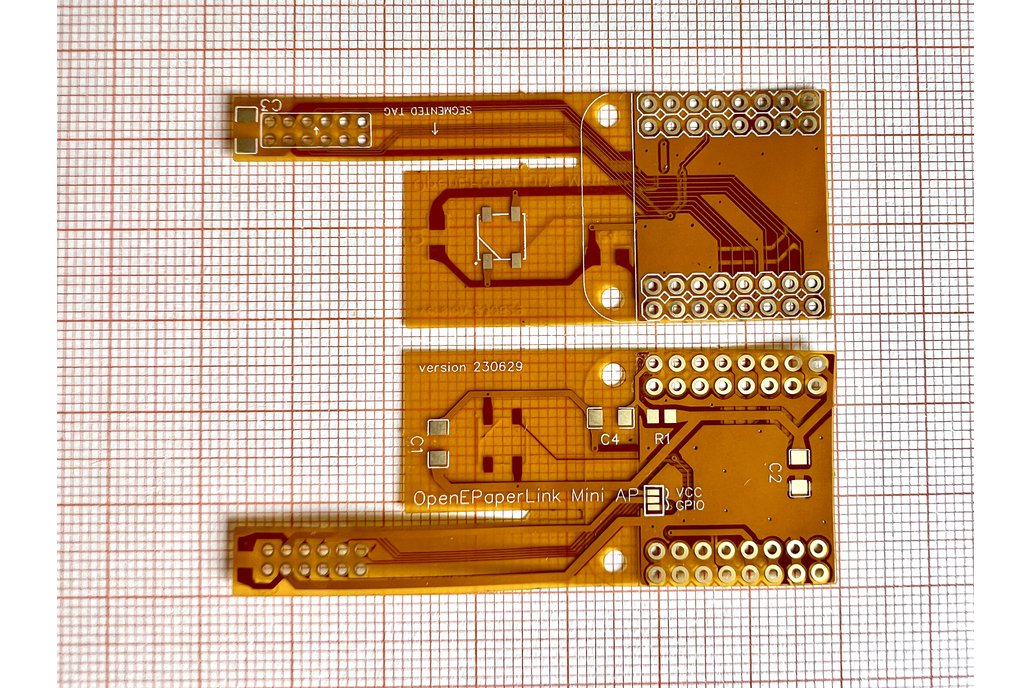

This is the Flex-PCB for the OpenEPaperLink Mini AP. It's used to quickly assemble an AP without excessive soldering.

Each order will contain 2 (two) FlexPCB's; you can use it two build two AP's! Also, watch the volume discounts.

This version 2 adds a shielding ground plane for added stabiliy, an option (by solder blob) to power the tag from VCC or GPIO pins, and an option for an extra resistor/capacitor for extra stability of the EN-line.

You will need to add some items to make a working AP:

• ESP32-S2-Mini (Wemos)
• Compatible segmented tag (order them optional)
• (Optional) 1206 sized capacitor (around 1μF)
• (Optional) WS2812B RGB Led
• (Optional) 3D-printed case

This is a very thin flex PCB; you'll need to be careful when soldering. Don't heat it too long or you will damage it!

Again: This is JUST a set of two Flex PCB's! Nothing else, except when you order segmented tags with it!
