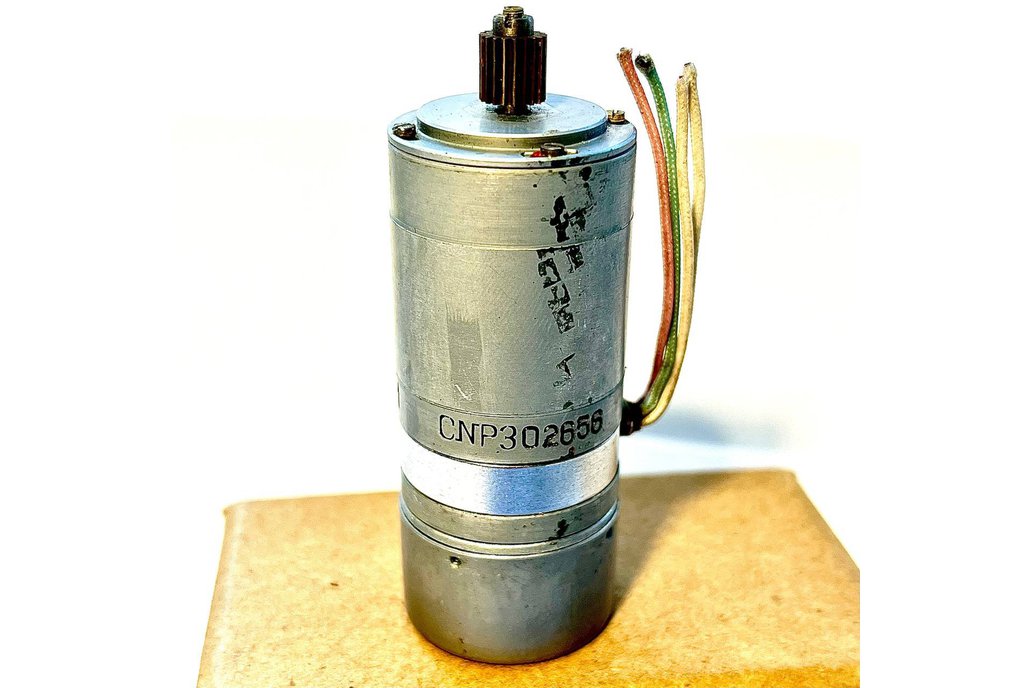

Vintage DPM-25-H3-01 DC Motor, 1970s Permanent Magnet Electric Motor with Built-in Speed Controller
Sold By Electronics16
Buy with confidence.
Our Tindie Guarantee protects your purchase from fraud. Learn More
Lot 26. A DC permanent magnet commutator motor DPM-25-H3-01 is designed for use as a power motor and for driving various mechanisms in short-term, intermittent, and continuous operation in industrial…
Read More…Lot 26. A DC permanent magnet commutator motor DPM-25-H3-01 is designed for use as a power motor and for driving various mechanisms in short-term, intermittent, and continuous operation in industrial automation, telemechanics, and radio electronics equipment.
Specifications: OСТ 160.515.022-76.
Motor designation structure: • DPM-25-H3-01 • DPM – DC motor with permanent magnet excitation; • 25 – Frame size number; • H3 – Single output shaft end with a built-in centrifugal contact speed controller; • 01 – Motor type.
Technical characteristics of DPM-25-H3-01 motor: • Supply voltage, V: 27 • Rated power, W: 0.62 • Rotational speed, rpm: 6000 • Rated torque, mNm: 0.98 • Starting torque, mNm: 11.8 • Current consumption, A: 0.37 • Starting current, A: 2.5 • Efficiency, %: 6 • Rotation direction: Left-hand • Weight, kg: 0.14
Year of Manufacture: These motors were produced starting from 1976 based on the OST standard (OСТ 160.515.022-76).
⚠️I am open to any offers.
👉PLEASE CHECK ALL PICTURES FOR MORE DETAILS
🔔CHECK OUT MY OTHER LISTINGS, SO MANY VARIOUS VINTAGE AND UNIQU Please contact me if you would like to discuss your purchase.
‼️There is no refund or return of goods
‼️The purchase of any product is final, and after the purchase you confirm that you are satisfied with everything and you are familiar with the information that there are no returns.
