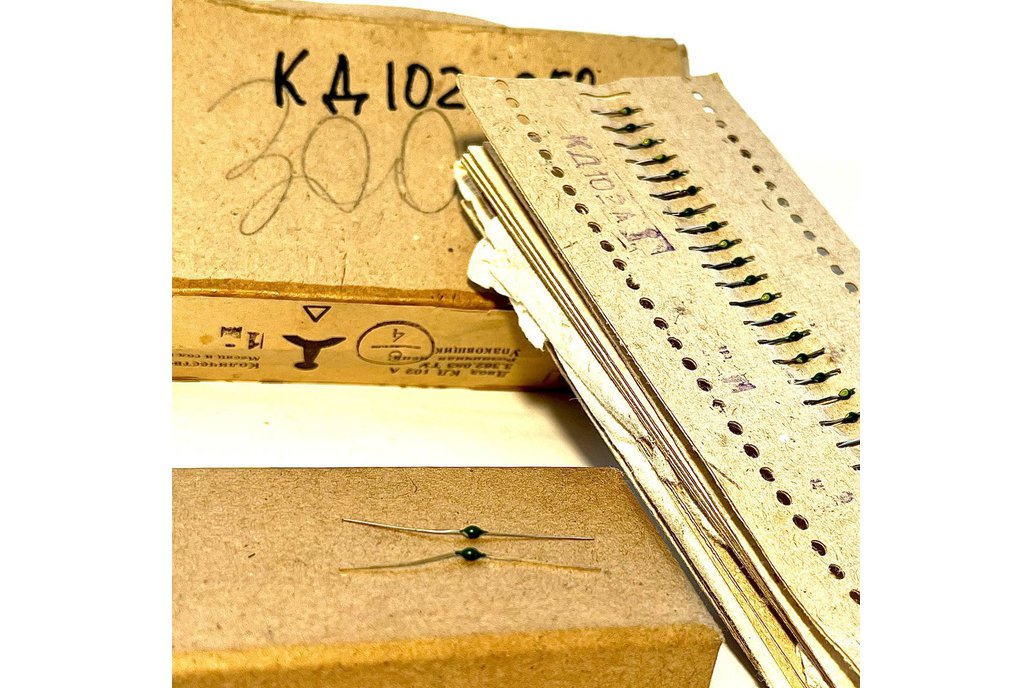

Lot 28. KD102A silicon diffused rectifier diodes.

The KD102A diodes are designed to convert AC voltage in secondary power supply sources. They are used in general-purpose radio electronics equipment.

They come in a plastic housing with flexible, oppositely directed leads. Marked with color dots near the positive (anode) lead: • KD102A – green, • KD102B – blue.

Specifications: • Case type: KD-30; weight not exceeding 0.1 g. • Climatic version: “UHL3.1”. • Technical conditions: ТТ3.362.083ТУ. • Imported equivalent: 1S204.

Technical Characteristics of KD102A Diodes: • Uобр max: Maximum constant reverse voltage: 250 V • Iпр max: Maximum forward current: 100 mA • fд: Operating frequency: 1 kHz • Uпр: Constant forward voltage: not more than 1 V at Iпр = 100 mA • Iобр: Constant reverse current: not more than 0.1 µA at Uобр = 250 V

Year of Manufacture: These diodes were produced starting from the 1970s based on the specified technical conditions.

⚠️I am open to any offers.

👉PLEASE CHECK ALL PICTURES FOR MORE DETAILS

🔔CHECK OUT MY OTHER LISTINGS, SO MANY VARIOUS VINTAGE AND UNIQU Please contact me if you would like to discuss your purchase.

‼️There is no refund or return of goods

‼️The purchase of any product is final, and after the purchase you confirm that you are satisfied with everything and you are familiar with the information that there are no returns.
