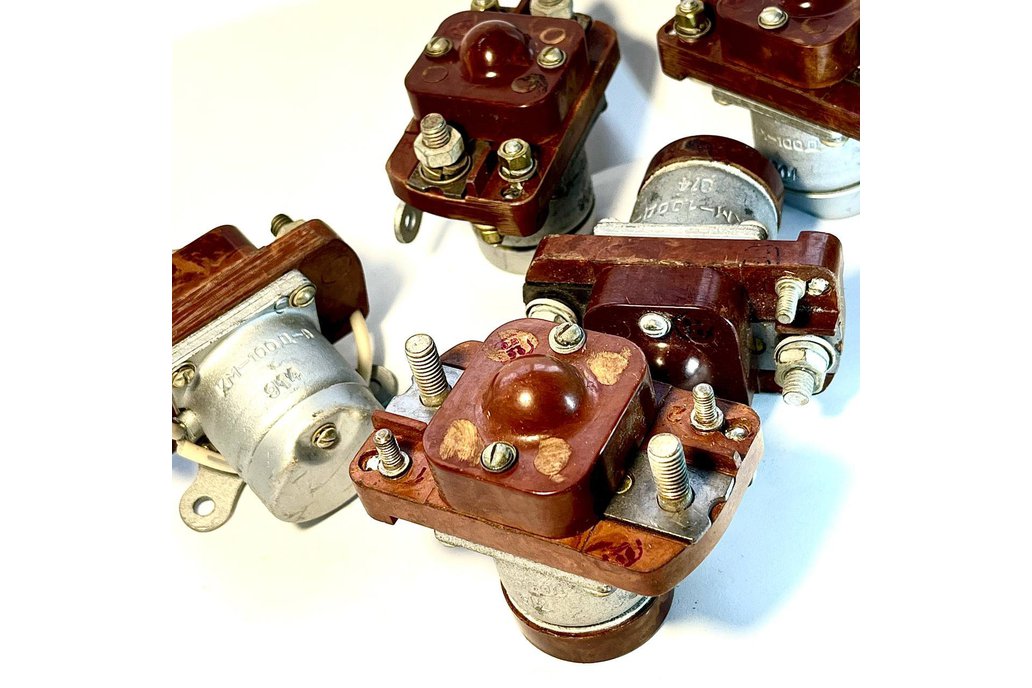

Vintage KM-100DV Compact Electromagnetic Contactor

Name: Vintage KM-100DV Compact Electromagnetic Contactor
SKU: 37742
Price: 18.00 USD
Availability: InStock

Vintage KM-100DV Compact Electromagnetic Contactor | USSR Military Relay | Industrial Collectible price for 5 pieces

Sold By Electronics16

Vintage KM-100DV Compact Electromagnetic Contactor 1

Vintage KM-100DV Compact Electromagnetic Contactor 2

Vintage KM-100DV Compact Electromagnetic Contactor 3

Vintage KM-100DV Compact Electromagnetic Contactor 4

Vintage KM-100DV Compact Electromagnetic Contactor 5

Vintage KM-100DV Compact Electromagnetic Contactor 6

Vintage KM-100DV Compact Electromagnetic Contactor 7

Vintage KM-100DV Compact Electromagnetic Contactor 8

Vintage KM-100DV Compact Electromagnetic Contactor 9










Buy with confidence.

Our Tindie Guarantee protects your purchase from fraud. Learn More

Vintage KM-100DV Compact Electromagnetic Contactor | USSR Military Relay | Industrial Collectible price for 5 pieces

Compact contactor KM-100D-V is a two-position electromagnetic device designed for remote switching on and off of power consumers of electrical energy. The KM-100DV contactor is designed to operate at…

Compact contactor KM-100D-V is a two-position electromagnetic device designed for remote switching on and off of power consumers of electrical energy.

The KM-100DV contactor is designed to operate at ambient air temperatures from +50°C to -60°C, relative humidity up to 98% at 40°C, altitudes up to 20,000 meters, and vibration at mounting points in the frequency range of 10–200 Hz. The contactor withstands linear acceleration up to 8g without damage or unintended switching and short-term shaking of mounting points at frequencies of 60–100 impacts per minute with acceleration up to 4g.

The operating principle is based on the electromagnetic property. When control voltage is applied to the contactor’s coil, the core is pulled in, closing the main circuit contacts. Without control voltage, the contacts open. Contact type: 1NO – one normally open contact.

Advantages of KM Contactors: • Suitable for mobile equipment • Relatively small size

Technical Specifications of the KM-100DV Contactor: • Rated current in contact circuits: 100 A • Rated coil voltage: 27 V • Rated coil current: 0.4 A • Contact inductive load: 0.0075 s • Rated current in auxiliary circuit: max 5 A • Contact resistance: max 30 mΩ • Actuation voltage: ≤18.9 V on, ≤8.1 V off • Mechanical lifespan: 100,000 cycles • Switching cycles: 50,000 cycles • Insulation resistance: ≥100 MΩ • Dielectric strength: • Between contacts: 2000 VAC • Between coil and contacts: 1500 VAC
