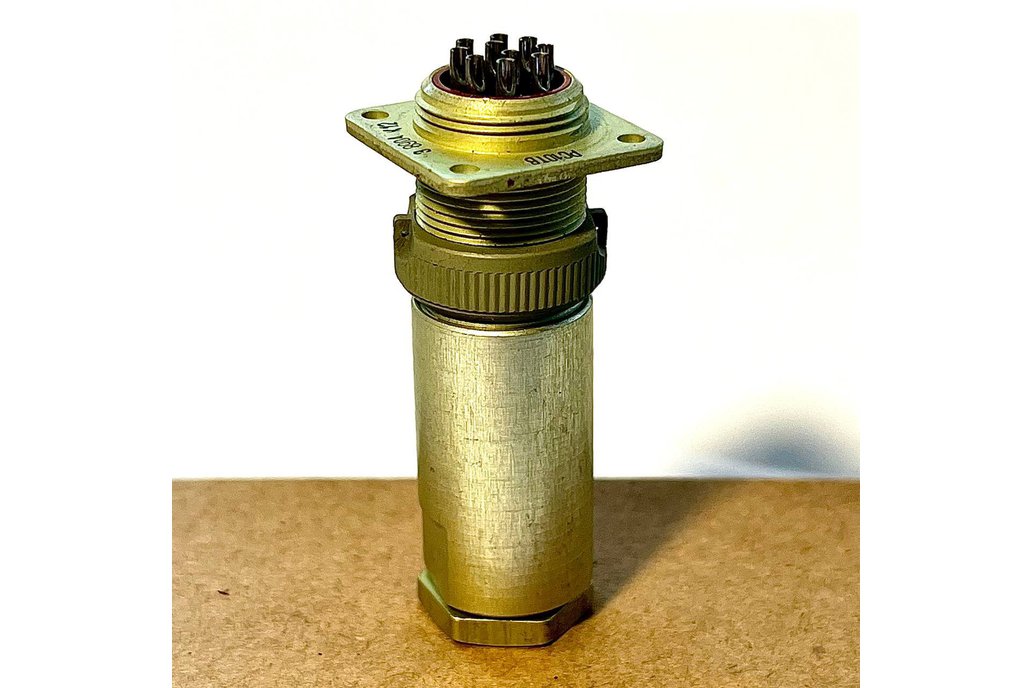

Lot 27. RS10TV socket for cable connection with screw coupling and silver contacts, without a housing.

The RS10TV connectors are low-frequency, low-voltage, cylindrical subminiature connectors for internal installation. Designed for use in DC, AC (up to 3 MHz frequency), and pulse current electrical circuits with a maximum operating voltage of 200 V.

They are used to connect and disconnect electrical circuits in special-purpose and general-purpose radio electronics equipment.

Technical Specifications: • Manufactured in eight types, six nominal sizes, and 144 design types. • Consist of two parts: sealed or unsealed plug and unsealed socket. • Connection type: screw coupling or plug coupling. • Contacts coating: gold (RSATV, RSGBTATV types) or silver (RSGBTV, RSBTTV types). • Wire connection to contact tails: soldering (up to 3 resoldering cycles). • Designed for internal installation in climate version [B] as per GOST 20.39.404. • Guarantee storage period: 25 years from manufacturing date. • Service life: • 1000 hours in all operating modes and conditions permitted by TU. • 130,000 hours in light operating mode.

Decoding of Designation: • RS10TV: • RS: connector type; • 10: number of contacts; • B: type of connection between plug and socket (plug coupling), absence of letter indicates screw coupling; • A: contact coating (gold), absence of letter indicates silver; • TV: tropical and all-climate version; • E: conductive case parts (for RS-E).

Technical Conditions: • АШДК.434410.059ТУ, АВ0.364.047ТУ, АВ0.364.047ТУ1, П0.070.052 (for RS-E only).
