BC840M, Compact, long range Bluetooth 5 Module

Name: BC840M, Compact, long range Bluetooth 5 Module
SKU: 19626
Price: 80.00 USD
Availability: InStock

BC840M is a compact, long range, nRF52840 CKAA, Bluetooth 5, Thread, Zigbee module

Sold By ElectronicKitsAndSpares

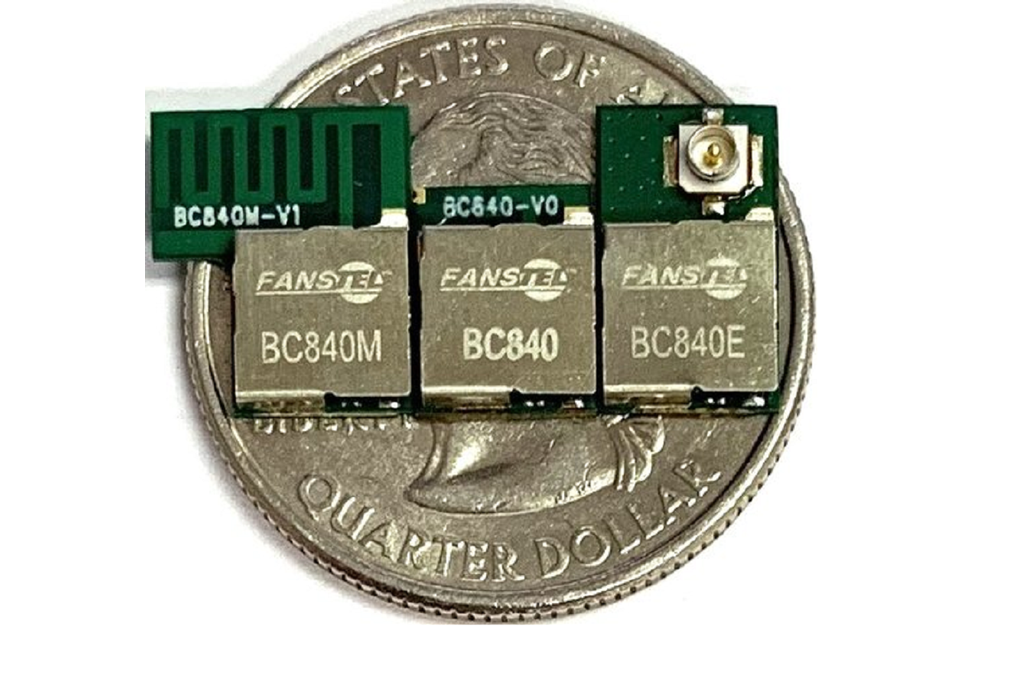

BC840M, Compact, long range Bluetooth 5 Module 1

Buy with confidence.

Our Tindie Guarantee protects your purchase from fraud. Learn More

BC840M is a compact, long range, nRF52840 CKAA, Bluetooth 5, Thread, Zigbee module

32-bit ARM® Cortex™ M4F CPU Supply: 1.7V – 5.5V Bluetooth 5, IEEE 802.15.4, 2.4 GHz transceiver +8 dBm TX power (down to -20 dBm in 4 dB steps) On-air compatible with nRF52, nRF51, nRF24L and nRF24…

32-bit ARM® Cortex™ M4F CPU
Supply: 1.7V – 5.5V
Bluetooth 5, IEEE 802.15.4, 2.4 GHz transceiver
+8 dBm TX power (down to -20 dBm in 4 dB steps)
On-air compatible with nRF52, nRF51, nRF24L and nRF24AP Series • Programmable output power from +8dBm to -20dB • RSSI (1dB resolution)‧Supported data rates:
Bluetooth 5: 2Mbps, 1 Mbps, 500 kbps, 125 kbps
IEEE 802.15.4-2006: 250 kbps
Proprietary 2.4 GHz: 2 Mbps, 1 Mbps
Advanced on-chip interfaces
USB 2.0 full speed (12Mbps) controller
QSPI 32MHz interface
High speed 32MHz SPI
Type 2 near field communication (NFC-A) tag with wake-on field
Programmable peripheral interconnect (PPI)
EasyDMA automated data transfer without CPU processing on peripherals‧12 bit, 200ksps ADC – 8 configurable channels with programmable gain
4 x 4 channel pulse width modulator (PWM)units with EasyDMA
Audio peripherals : I2S, digital microphone interface (PDM)
5 X 32-bit timers with counter mode
Up to 4 x SPI masters / 3 x SPI slaves with EasyDMA
Up to 2 x I2C compatible 2-wire masters / slaves
2 x UART(CTS/RTS) with EasyDMA
Quadrature decoder (QDEC)
3 x 24-bit real-time counters (RTC)
Operating Temp: -40°C to +85°C
