This product is no longer available for sale.
The seller may be offering an improved version or it may be hanging out on the beach, enjoying the retired life.

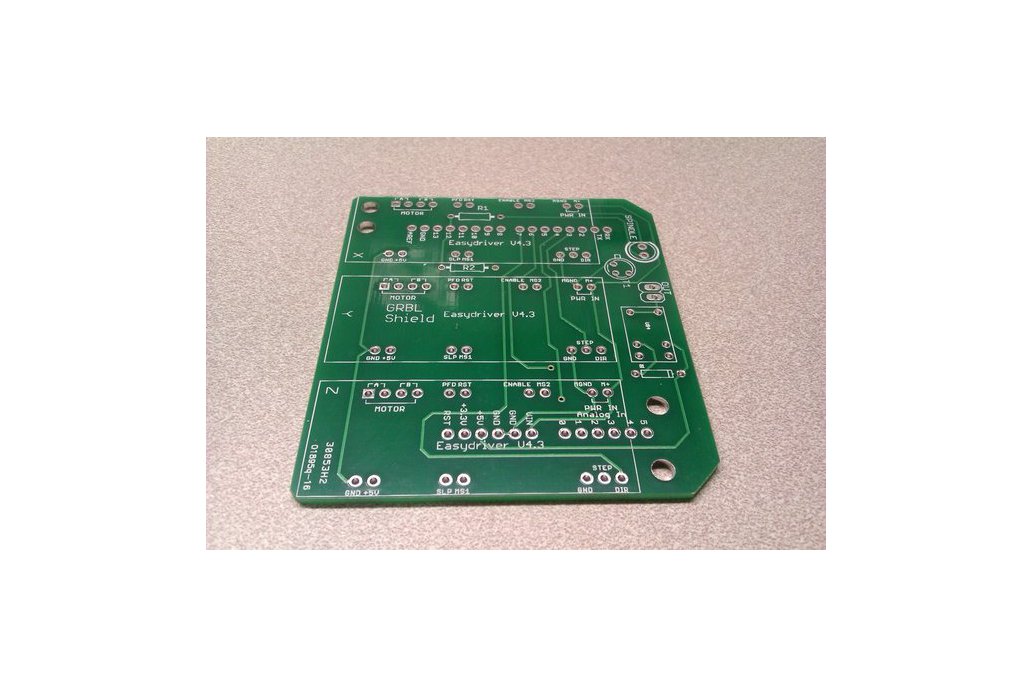

For sale is the board only. The board allows you to use 3 easy driver stepper drivers with an Arduino running GRBL cnc software. Easy stepper driver http://www.sparkfun.com/products/10267 http://dank…
Read More…For sale is the board only.
The board allows you to use 3 easy driver stepper drivers with an Arduino running GRBL cnc software.
Easy stepper driver
http://www.sparkfun.com/products/10267
http://dank.bengler.no/-/page/show/5470_grbl
GRBL Software info
http://dank.bengler.no/-/page/show/5471_gettinggrbl
The pins differ from the default GRBL pins.
The shield uses the following pins.
Step X = D2
Step Y = D3
Step Z = D4
Dir X = D5
Dir Y = D6
Dir Z = D7
Spindle output = D12
The voltage for driving the motors comes from the Vin pin on the Arduino. This requires you to use a 12v power supply to power the Arduino.
Example of a similar use made by An instructables user.
http://www.instructables.com/id/Pocket-laser-engraver/
