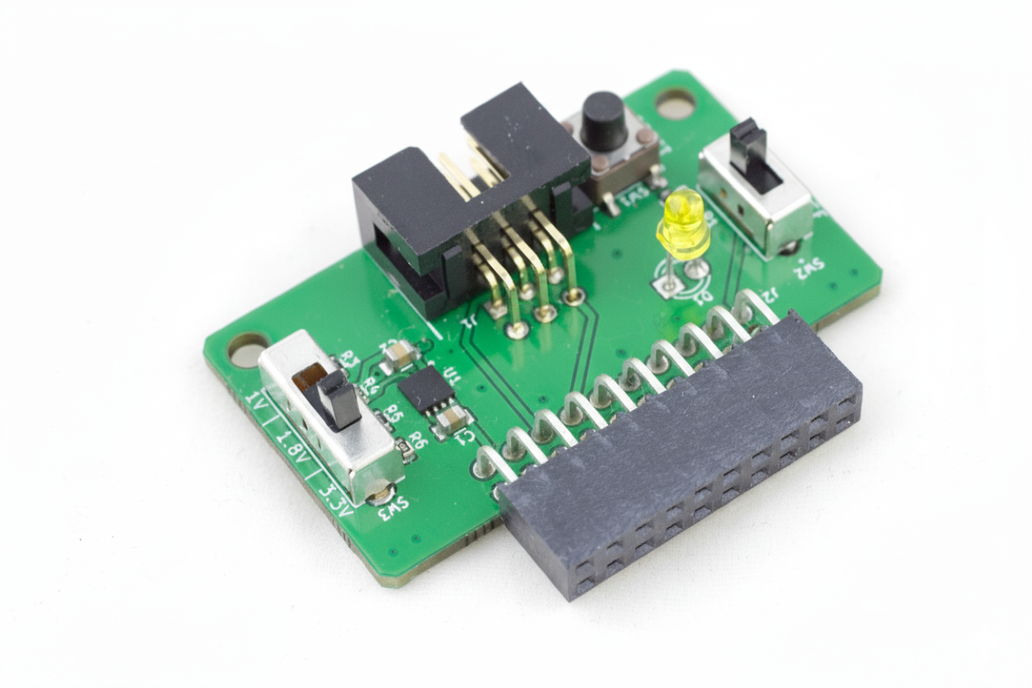

The Programmer Adapter 20-Pin (ARM/JTAG/J-Link) to 6-Pin(TC2030) is a adapter that allows a 20-pin ARM/JTAG/J-Link programmer to be used with a 6-pin TC2030 target device. It is typically used in the development and programming of microcontrollers and other embedded devices.

The adapter has a 20-pin connector on one end, which is compatible with ARM/JTAG/J-Link programmers, and a 6-pin connector on the other end, which is compatible with TC2030 target devices. The adapter is designed to provide a convenient way to connect these two types of devices together, allowing the programmer to be used with the TC2030 target device.

Some key features of the Programmer Adapter 20-Pin (ARM/JTAG/J-Link) to 6-Pin(TC2030) include:

• Allows a 20-pin ARM/JTAG/J-Link programmer to be used with a 6-pin TC2030 target device
• Compact size and lightweight design
• Easy to use and install
• Durable construction

The Programmer Adapter 20-Pin (ARM/JTAG/J-Link) to 6-Pin(TC2030) is an essential tool for developers and programmers working with microcontrollers and other embedded devices. It allows them to easily connect their programmer to a TC2030 target device, enabling them to develop and test their projects more efficiently.

Parameters:

• 20-Pin connector (ARM/JTAG/J-Link).
• 6-Pin connector (TC2330)
• Low noise LDO is a 1A max, adjustable output voltage, ultra-low dropout linear regulator with enable.
• Power supply voltage 3.3 / 1.8 / 1.0 V
• Reset button
• Switch button for ON/OFF
• Switch button for a voltage

6-PINs connector:

1 - VCC 2 - SWDIO/TMS 3 - nRESET 4 - SWCLK/TCK 5 - GND 6 - SWO/TDO

Specifications:

• Output Power - 3.3W(max)
• Output Current - 1A(max)
• Size WxHxD - 45 x 35 x 12 mm
• Weight - 20g
• Temperature Range -40 to +85° C maximum, -30 to 50° C recommended
• Host side - connector 20-pin, 2.54mm pitch
• Target side - connector 6-pin, 2.54mm pitch
• Compatibility - Segger J-Link, ST-Link, and other

Instruction:

1. Install the SEGGER J-Link software.
2. Start J-Link Commander, which can be found under: Start - Programs - SEGGER - J-Link.
3. Enter the command: power on perm.
4. Plug in the adapter to the J-Link: The LED on the adapter should be on.
5. Select the target voltage using switch SW3.
6. Plug in the board with MCU.
7. Select the ON using switch SW2.
8. Start working.

Complete set: adapter board only.
