USB-C Banana

Name: USB-C Banana
SKU: 35011
Price: 10.00 USD
Availability: InStock

Banana jack to USB-C adapter

Designed by Entropy Electronics in United States of America


Buy with confidence.

Our Tindie Guarantee protects your purchase from fraud. Learn More

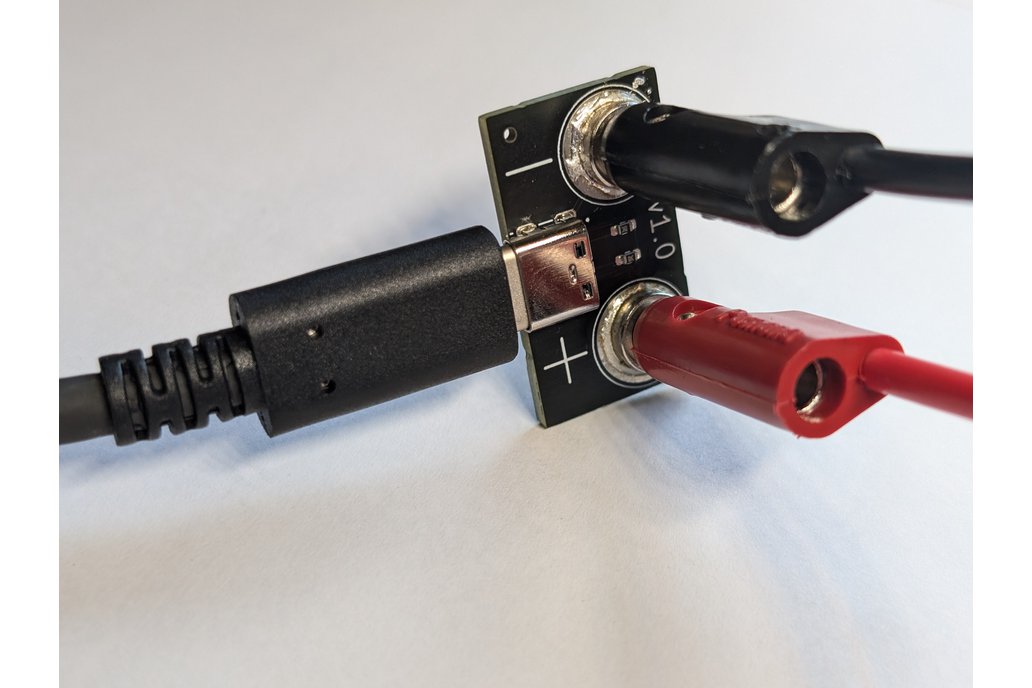

Banana jack to USB-C adapter

This is an adapter board for a USB-C downstream-facing port (DFP). This allows supplying power over USB-C using a lab power supply with banana jack outputs. When developing or testing USB devices, this makes it easier to use a current-limited power supply, and to see how much power the device is drawing.

The USB port uses 10k pullups on the CC pins to indicate that it can supply 5V at 3A. Note that this does not follow the USB-C spec—the spec requires that a DFP only enable power on VBUS once the DFP has confirmed a devices is plugged in by reading the voltage divider on the CC channels.

The banana jacks are spaced 19.06mm apart.
