PixelBlaster GaN PD240W

Name: PixelBlaster GaN PD240W
SKU: 38369
Price: 44.99 USD
Availability: InStock

The Ultimate USB-C Power Delivery 3.1 Power Adaptor

Designed by ESP32andmore.com in United States of America

Buy with confidence.

Our Tindie Guarantee protects your purchase from fraud. Learn More

New products this month: Check out our PixelBlaster series of WLED controllers.

The Ultimate USB-C Power Delivery 3.1 Power Adaptor

ESP32andmore PixelBlaster GaN PD240W The PixelBlaster GaN PD240W is a USB-C Power Delivery 3.1 power supply/adaptor that features the full Power Delivery 3.1 output profile in a compact and cost-ef…

ESP32andmore PixelBlaster GaN PD240W

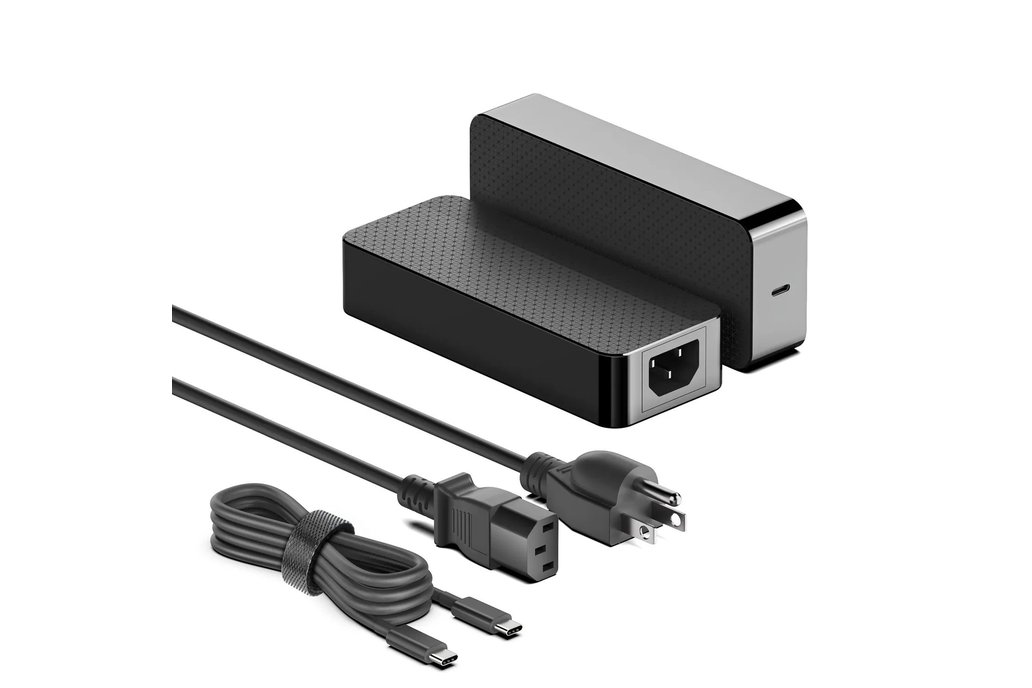

The PixelBlaster GaN PD240W is a USB-C Power Delivery 3.1 power supply/adaptor that features the full Power Delivery 3.1 output profile in a compact and cost-effective package. This supply can be used in lighting applications, powering laptops, POE switches, digital loudspeakers, digital signage, LED monitors, or just about anything that requires high-power USB-C PD3.1 input.

Featuring a FULL 5-amp output across ALL PD3.1 voltage profiles with overvoltage, and overcurrent protection makes it the only Power Delivery adaptor you will need for the foreseeable future.

Comes with a 1M USB-C PD3.1 240W certified cable.

Input

100-240V, 50/60Hz, 3A Max.
Comes in 4 plug varieties - US(Type B), AU/China(Type I), EU(Type E/F), UK(Type G)

USB-C PD3.1 Profiles

5.0V @ 5.0A, 25.0W
9.0V @ 5.0A, 45.0W
12.0V @ 5.0A, 60.0W
15.0V @ 5.0A, 75.0W
20.0V @ 5.0A, 100.0W
28.0V @ 5.0A, 140.0W
36.0V @ 5.0A, 180.0W
48.0V @ 5.0A, 240.0W
5.0-21.0V @ 5.0A, 105.0W Max. (PPO)
15.0-48.0V @ 5.0A, 240.0 Max. (AVS)

This supply meets and exceeds all US and International Certifications and Standards for safety and EMI including CE, Rohs, FCC, and UL. Comes with our unconditional lifetime warranty.

Safety Standards

IEC 62368-1:2014, IEC 62368-1:2018
EN 62368-1:2014/A11:2017, EK1 557-13, AfPS GS 2019:01 PAK
EN 62368-1:2014/A11:2017, BS EN 62368-1:2014/A11:2017, BS EN IEC 62368-1:2020
UL 62368-1,2nd Ed, 2014-12-01 (Audio/video, information and communication technology equipment Part 1: Safety requirements); CAN/CSA C22.2 No. 62368-1-14, 2nd Ed. Issued: 2014-12-01 (Audio/video, information and communication technology equipment Part 1: Safety requirements); UL 62368-1, Ed. 3，CAN/CSA C22.2 No. 62368-1:19
GB 4943.1-2022
AS/NZS62368-1-2018，AS/NZS62368-1-2022
JP 62368-1(2020); JP 62368-1(2023)
KC62368-1
EN IEC 62368-1:2020/A11:2020

EMI Standards

EN 55032:2015/A11:2020，EN IEC 61000-3-2:2019/A1:2021，EN 61000-3-3:2013/A1:2019, EN 55035:2017/A11:2020，BS EN 55032:2015/A11:2020，BS EN IEC 61000-3-2:2019/A1:2021，BS EN 61000-3-3:2013/A1:2019，BS EN 55035:2017/A11:2020
EN 55032:2015/A11:2020，EN IEC 61000-3-2:2019，EN 61000-3-3:2013/A1:2019，EN 55035:2017/A11:2020
GB/T9254:2008，GB17625.1:2012，GB/T9254:2021，GB17625.1:2022
47 CFR FCC Part 15, Subpart B, ANSI C63.4-2014
EN 55032, EN IEC 61000-3-2, EN 61000-3-3, EN 55035, BS EN 55032, BS EN IEC 61000-3-2, BS EN 61000-3-3 and BS EN 55035
EN 55032, EN 55035, EN IEC 61000-3-2, EN 61000-3-3
AS/NZS CISPR 32:2015+A1:2020
KN 32，KN 35，KS C 9832:2023，KS C9835:2019
J55032(H29)
