TFT LCD Display and Touch Screen Module 2.4 inch

Name: TFT LCD Display and Touch Screen Module 2.4 inch
SKU: 35231
Price: 9.99 USD
Availability: InStock

TFT LCD Display Touch Screen Module 2.4 inch, 320 x 240 pixels, SPI Interface, with ILI93411 and XPT2046

Designed by ESP32andmore.com in United States of America

TFT LCD Display and Touch Screen Module 2.4 inch 1

TFT LCD Display and Touch Screen Module 2.4 inch 2

TFT LCD Display and Touch Screen Module 2.4 inch 3

TFT LCD Display and Touch Screen Module 2.4 inch 4

TFT LCD Display and Touch Screen Module 2.4 inch 5

TFT LCD Display and Touch Screen Module 2.4 inch 6

TFT LCD Display and Touch Screen Module 2.4 inch 7


Buy with confidence.

Our Tindie Guarantee protects your purchase from fraud. Learn More

TFT LCD Display Touch Screen Module 2.4 inch, 320 x 240 pixels, SPI Interface, with ILI93411 and XPT2046

Product Description: The color TFT LCD module has a native resolution of 320x240 pixels with a pixel depth of 65k colors and uses a 4-wire SPI communication to the ILI9341 display controller and the …

Product Description:

The color TFT LCD module has a native resolution of 320x240 pixels with a pixel depth of 65k colors and uses a 4-wire SPI communication to the ILI9341 display controller and the XPT2046 touch screen controller.

Product Features:

2.4-inch color screen supports 16-bit 65K color on a rich TFT display.
320x240 pixel resolution with resistive touch screen.
Display driver is the ILI9341.
Touch screen controller is the XPT2046.
SPI serial bus on a 14-pin 2.54mm header which requires nine GPIO pins to control both display and touch screen.
SD card slot using SPI on a separate on a separate 4-pin 2.54mm header.
Fully compatible with LGVL.
Fully supported by ESPHome.

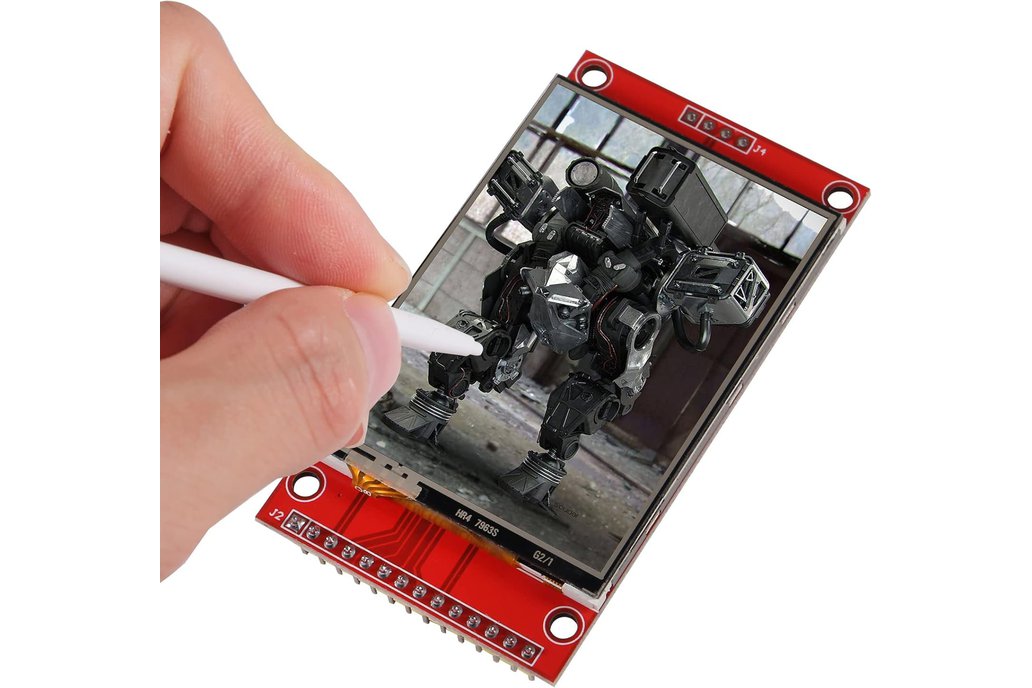

Comes with stylus pen.

Product Specs:

Display Resolution: 320x240 pixels
Display Color: RGB 65K colors
Screen Size: 2.4 inch
Display Active Area: 36.72mm x 48.96mm
Display Type: TFT
Display Driver IC: ILI9341
Touch Screen IC: XPT2046
Interface: 4-wire SPI bus @ 80 MHz
Interface Connectors: 14-pin 2.54mm female for display/touch screen, 4-pin 2.54mm female for SD card
Module PCB Size: 77.18mm x 42.72mm
Mounting Holes: M3
Operating Temperature: -20C to 70C
Storage Temperature: -30C to 80C
Operating Voltage: 3.3V or 5V
Power Consumption: 90mA (active)
Product Weight: 25.4g
