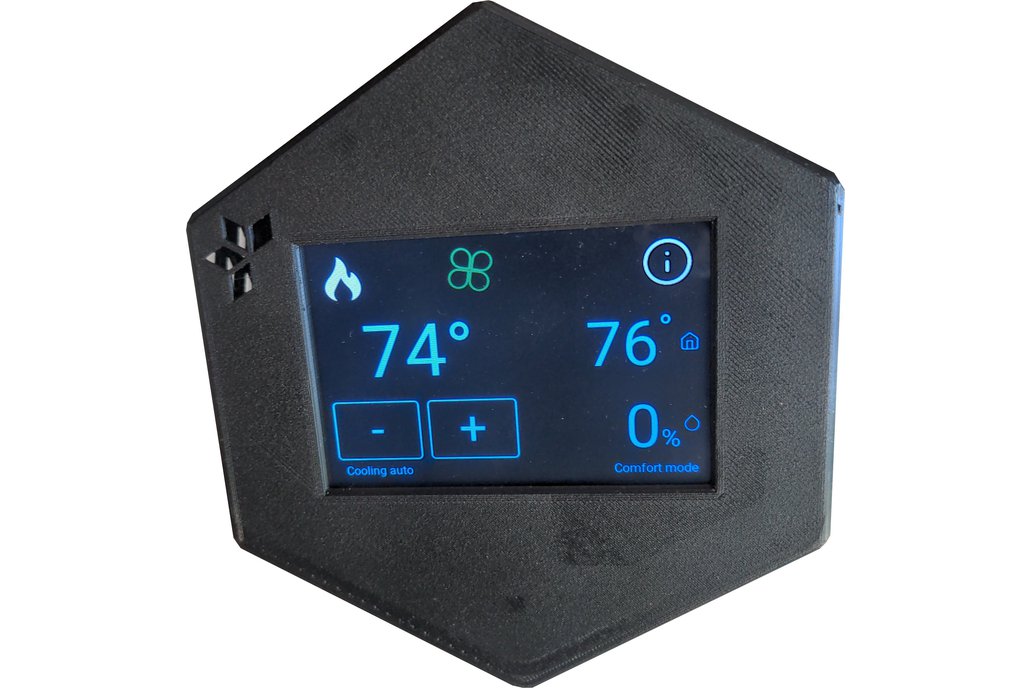

What is it? The HestiaPi is an open source smart thermostat that can be connected to your wifi and controlled with your smart phone. It can also operate in a completely standalone mode with its touc…
Read More…The HestiaPi is an open source smart thermostat that can be connected to your wifi and controlled with your smart phone. It can also operate in a completely standalone mode with its touch screen.
I wanted a thermostat that could be remotely controlled by me, but not by a big corporation like Google. With my background in information security, I also want to have visibility into how the products I use function, and know that they can be trusted. The HestiaPi fits the bill.
It respects your privacy. It doesn't collect your data and send it off to anyone. All information is stored locally on the thermostat itself, and the only one with access to it is you.
It's open source, which has a number of implications. - Transparent: This means you (or a friend) can see how it works so you know it's not doing things that it shouldn't be doing - Tinkerer friendly: You can add onto it if you want, and make it do even more cool stuff! - Supported: There's an entire community that helps support the product
When I say it's open source, I do not just mean that it runs some open source software. The hardware, documentation, and all the software is freely available. You can download it all, get your own printed circuit boards (PCBs) made, order the components, solder them on and have your own, home made HestiaPi.
This product is a ready to use thermostat, including:
The annotated picture shows the following:
Please check to make sure the unit you're ordering is compatible with your Heating Venting and Air Conditioning (HVAC) system.

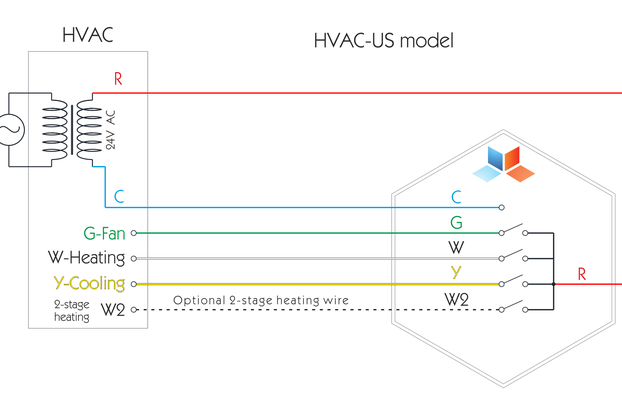

The default option is to have an external 5 volt power supply, which will work with any standard 24V US HVAC system.
There is an option to have the HestiaPi powered by HVAC systems that have 5 wires. These are typically labeled R, C, G, W, Y and are Red, Blue, Green, White, and Yellow (respectively). This model uses the power from the HVAC system so it does not need external power. This makes it look much nicer, as there are no visible wires. If your HVAC system can support this, it would be a recommended upgrade from the base model of HestiaPi.
As a general rule, if you are replacing thermostat that runs on batteries, you will likely need the option which uses external power (5V). If you are not sure what is the best option, feel free to send me info about your current thermostat and I'll help guide you.
In addition to choosing how to power your HestiaPi (see Compatibility section above for details on that), there are also a few other options to choose from.
If you have two-stage heating, you will want an additional relay. Two stage heating is not very common in the US, so if you don't know whether you have it or not, you likely don't.
There's an option to get a humidity sensor so you can see the humidity level in the room. This will not affect the operation of your HVAC system. While European systems sometimes have an independently controlled humidity system, US systems typically do not.
The HestiaPi requires a Raspberry Pi Zero W or Raspberry Pi Zero 2 W. By default, it ships with the Zero W, which are now generally available. The Zero 2 W is an upgrade, which will go significantly faster, but they've been nearly impossible to get for the past several years. If you already have Raspberry Pi Zero/Zero 2 W and want to use that, you can select None for this option. Do note that using your own Pi this will require soldering, so make sure you (or a friend) can do that.
If you have a 8+ GB SD card lying around and are comfortable flashing the HestiaPi image onto it, you can omit the SD card. By default, units are shipped with a pre-flashed SD card that is ready to use.
If you already have a compatible LCD touchscreen and want to use that, there's the option to omit the screen. Screen compatibility has been an issue, so use caution if going this route. Touchscreens must be 3.5 inches, 480x320 pixels, and use the XPT2046 chip, but this does not guarantee compatibility! We have seen screens have issues even when they look like they should be compatible. Every screen that is shipped from me will be tested to ensure compatibility and I highly recommend just getting the screen from me for this reason. If you still want to try using your own screen, the Kuman SC06 seems to be a fairly reliable option.
If you want to put everything together yourself, there's an option to buy a kit. Anything that I assemble is fully tested, even if you will be using your own SD card or screen. The only exception is if you are going to solder in your own raspberry pi, in which case I will not be able to test the unit before shipping it. Kits are not tested, as I'm just sending you the parts for you to assemble.
