Details:

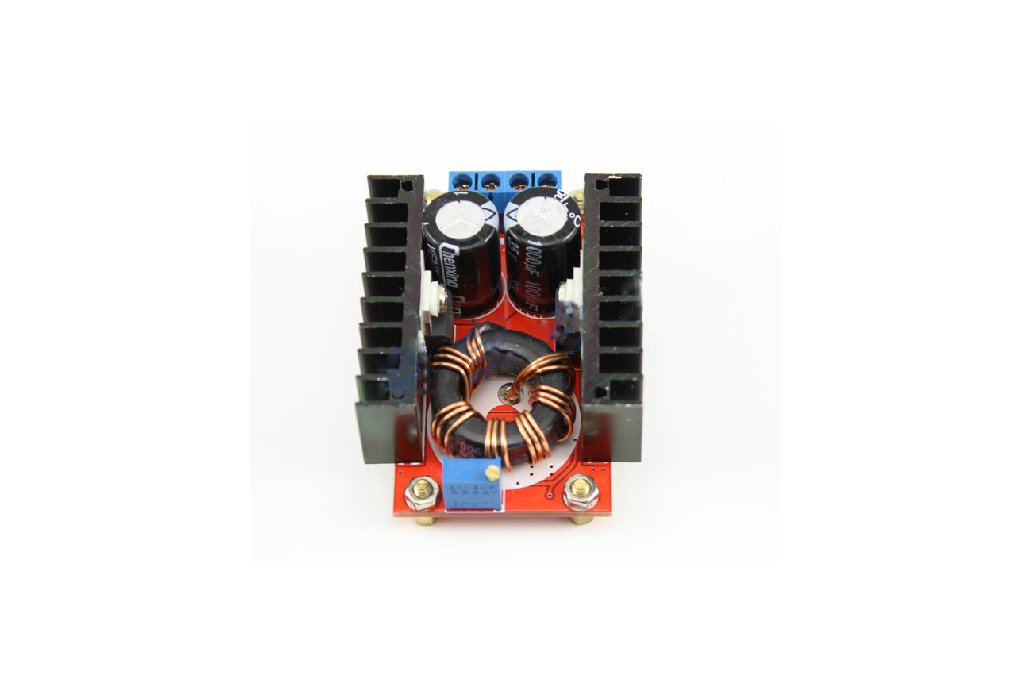

• The modular nature: non isolated step-up module
• Module size: length 65mm x high 23mm (56.5mm wide including fins)
• Input: IN+ positive input level, the IN- input cathode
• Output mode: OUT+ output, OUT- output negative pole
• Connection: welding free, terminal
• Input voltage: 10-32V
• Output voltage: (1) continuously adjustable (12-35V) our default voltage 19V
• (2) fixed output (12-35V optional)
• Output current: 6A (MAX)
• Input current: 10A (MAX) (more than 10A please strengthen heat dissipation,)
• Output power: 100W (MAX), natural cooling fan to add 150W (MAX)
• Easily drive the 65W 90W notebook computer comprises a dual core
• Temperature of notebook computer module with 12V battery with 19V 3.42A about 45 degrees
• Efficiency: 94% (16V input output 19V 2.5A) (for reference only)
• Working temperature: industrial grade (-40 °C to +85 °C) (environmental temperature exceeds 40 degrees, please reduce power use, or fan)
• Full temperature: 45 °C
• The typical no-load current: 25mA
• Short circuit protection: no (please input with overcurrent protector)
• Input reverse connection protection: No, in input series diode

The scope of application

• DIY an adjustable output power, only need to input your access to 12V power supply, the output voltage (14-35V) you can free continuous adjustment of output voltage, but can not be lower than the input voltage.
• Universal car laptop power. The input to the 12V power supply output regulation on your laptop, you can work with the voltage.
• Boost charger, you can charge for the battery is higher than that of 12V with 12V power supply, such as 24V battery.
• Supply power for your electronic equipment, as long as the voltage regulator to your required voltage and current does not exceed the rated current can work normally.
• Before the system level power supply, when you do a project as the input of 10-18V, and the system board you need the power of about 24V and its great power, with common DC-DC module power is too small, then you choose this module will be your best choice, no debugging can be directly on the machine work, easy to achieve high efficiency and high power boost.
