Description:

E01-ML01DP3 module is a 2.4G wireless communication chip. It adopts nRF24L01P( also called nRF24L01+) and 20dBm power amplifier chip, which makes the maxmium transmitting power come to 20dBm (about 100mW) and sensitivity come to 10dBm. All components on this module are imported and quality/Industrial-grade performance is promised.

Applications:

This module can be widely applied in high-speed digital, wireless remote collection, security alarm, power monitoring, intelligent household, robot application, model aircraft, lighting control, intelligent buildings, medical equipment, wireless audio, VOIP applications, highend toys, intelligent sports equipment, wireless sensor network and so on many kinds of application scenarios. Our company has been batch using the authentication module in the above areas, module can work in industrial environment.

Features:

• This module is with PA + LNA, rf switch and bandpass filter. All the single chip integration, the score of vertical performance is better, and smaller in size.
• The chip for nRF24L01P, performance is better than the previous generation products. PA + LNA chip is from U.S. The quality is promised.
• This Module adopts 0402 components, which has the better performance in wireless communication and also reduce the module size.
• It can pass CE pin for l01p 24. With POWERDOWN mode, it can control the backside PA + LNA chip and radio frequency switch, which will make the original current control the minimum less than 1 ua.
• Power supply range is 1.9-3.6 V. A very wide range of power supply meet the demand of battery power. (While most similar module are 3.0 to 3.6 V. No batteries power supply.)

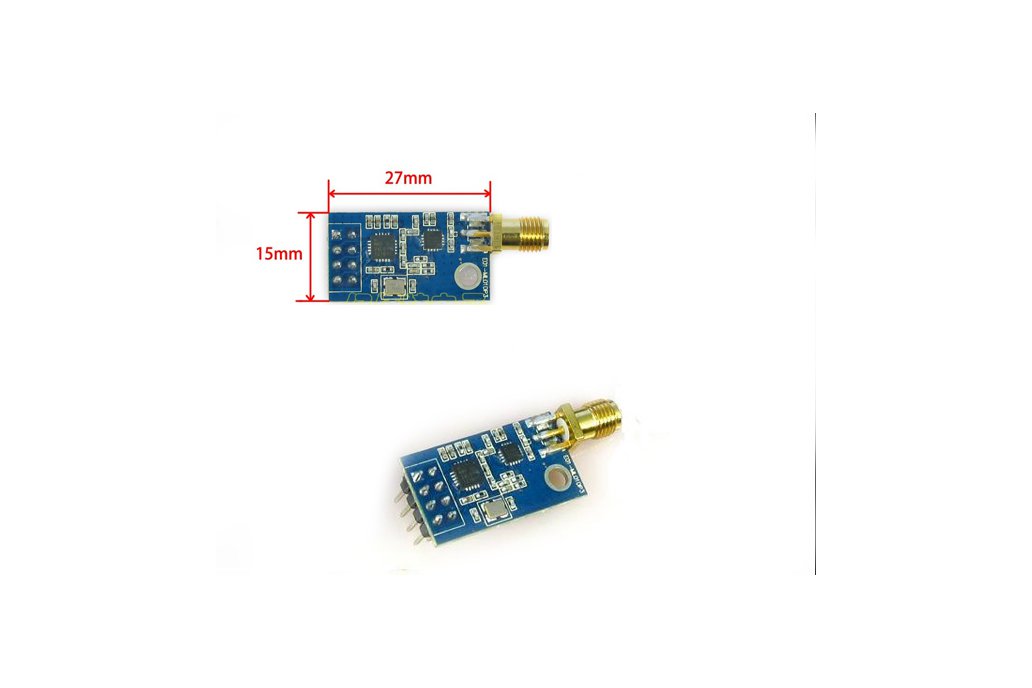

• Module size is 15 x 27 mm, which is much smaller than the most module without PA.
• This module is with the highest level of integration,element 0402 in small size and imported crystals 10 PPM/9 pf. Through the CE pin, it can control the whole board (including amplifiers), very suitable for low power consumption conditions.

How to use:

Users use MCU SPI bus module internal registers and IO port for accessing and controlling, to achieve the purpose of data transceiver. Module data rate and the frequency is adjustable, (can be found in the argument list)

Its hardware and software is unchanged, the users don't have to care about PA chips working status and mode of operation, the module can do logic processing automatically.

Specifications:

• Module size: 15 x 27.3 mm
• Source: all imported, origin : Noway, Japan
• Interface: 2 x 4 x 2.54mm, you can use the universal plate and DuPont line
• Supply Voltage: 2.0V3.6VDC (can meet batteries supply)
• Communication level: 0.7VDD-5.2VDC, VDD is modules voltage
• Measured distance: 1157m@250K, condition: city,in open area,30'C,cloudy
• Maximum Power: 20dBm, about 100mW
• Air rate: 250K, 1M, 2M (adjustment via software)
• Shutdown current: About 1nA, test conditions: CE=0,OFF-mode, VDD=3.0V
• Power Level: 4 level, adjustable
• Transmission current: maximum peak is 95mA
• Receiving current: 20MA,condition: 3.0VDC power supply, CE=1,LNA open
• Antenna type: SMA antenna interface
• Interface: Standard. (SPI)0, maximum 10Mbps air rate
• Transmission length: Single data 1-32 bytes, 3 level FIFO buffering
• Receiving length: Single data 1-32 bytes, 3 level FIFO buffering
• RSSI: NO support, but support packet loss statistics
• Receiving sensitivity: -102dBm
• Working temperature: -30 - +85'C
• Working humidity: <90% relative humidity
• Storage temperature: -40 - +125'C
• Working frequency: 2.4000-2.525GHz,software adjustable (1MHz is for each step)
