Module Applications:

Suitable for home or industrial hydrogen leakage monitoring devices. Can not interfere with ethanol vapor, soot, carbon monoxide and other gases.

Module Features:

1, using high-quality dual-panel design, with power indicator and TTL signal output instructions;

2, the switching signal having a DO (TTL) output and analog output AO;

3, TTL output valid signal is low. (Low-level signal when the output light can be directly connected to the microcontroller or relay module)

4, the higher the voltage, the concentration of the analog output voltage is higher.

5, a hydrogen gas detection with good sensitivity.

6, there are four screw holes for easy positioning;

7 Product dimensions: 32 (L) * 20 (W) * 22 (H)

8, has a long life and reliable stability

9, rapid response and recovery characteristics

Electrical properties:

Input voltage: DC5V Power consumption (current): 150mA

DO output: TTL digital 0 and 1 (0.1 and 5V)

AO output :0.1-0 .3 V (relative to pollution), the maximum concentration of a voltage of about 4V

Package contents:

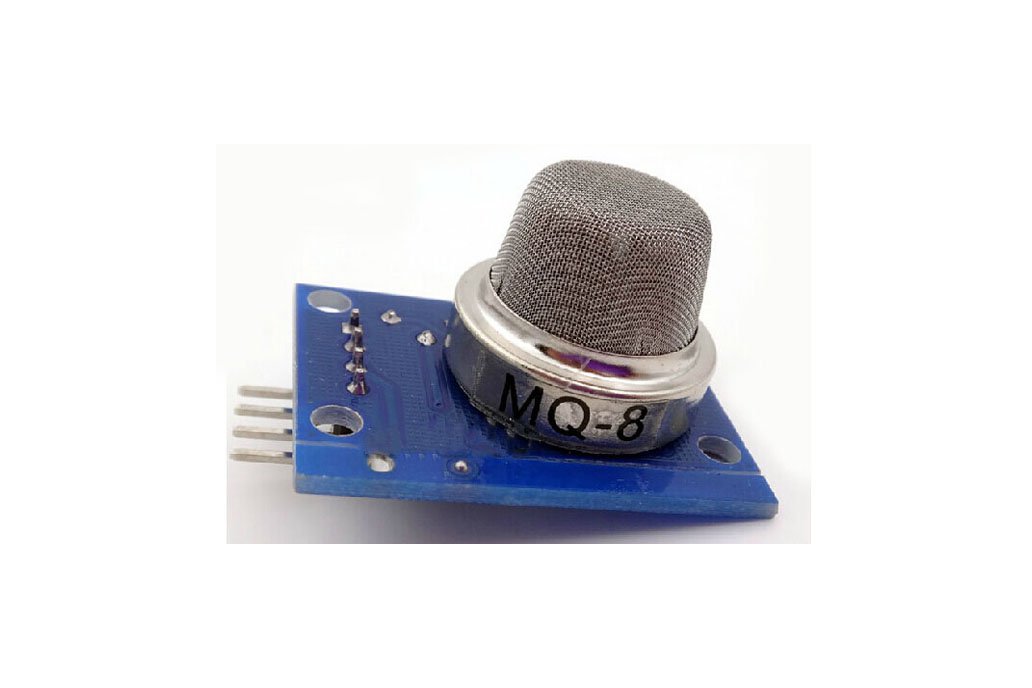

2pcs x MQ-8 Sensor Hydrogen Gas Detecting Module
