Features:

One tri-band transceiver operating frequency is internationally accepted ISM band 433/868/915MHz GMSK modulation, anti-interference ability, especially suitable for industrial control applications using DSS + PLL frequency synthesizer technology, high frequency stability excellent sensitivity, to - 100dBm low operating voltage (2.7V), low power consumption, standby only 1uA, low-power devices to meet the requirements of the maximum transmit power of +10 dBm with multiple channels (up to 170 or more), especially to meet the needs of multi-channel work special occasions up to 76.8Kbps work rate Minimum of external components (only 10), the basic need to debug. As a result of low transmitting power and high receiver sensitivity design, without a permit, the use of open ground distances of up to 1000 m ** specific use of the environment and component parameters.

Electrical characteristics:

• nRF905 working band: 433/868/915MHz
• Number of channels: 170
• Function: transmit/receive
• Frequency stabilization mode: PLL
• Modulation: FSK / GMSK
• Maximum output power: +10 dBm
• Sensitivity: -100dBm
• Maximum operating rate: 76.8Kbit / s
• Operating voltage: 2.7 - 3 .3 V

Application areas:

• Vehicle monitoring
• Remote control
• Telemetry
• Small wireless network
• Wireless meter reading
• Access control systems
• Paging
• Industrial data acquisition system
• Radio tags
• Identification
• RF contactless smart cards
• Small wireless data terminals
• Fire safety systems
• Wireless remote control system
• Biological signal acquisition
• Hydrological and meteorological monitoring
• Robot control
• Wireless 232 data communications
• Wireless 485/422 data communications
• Digital audio
• Digital image transmission

Package contents:

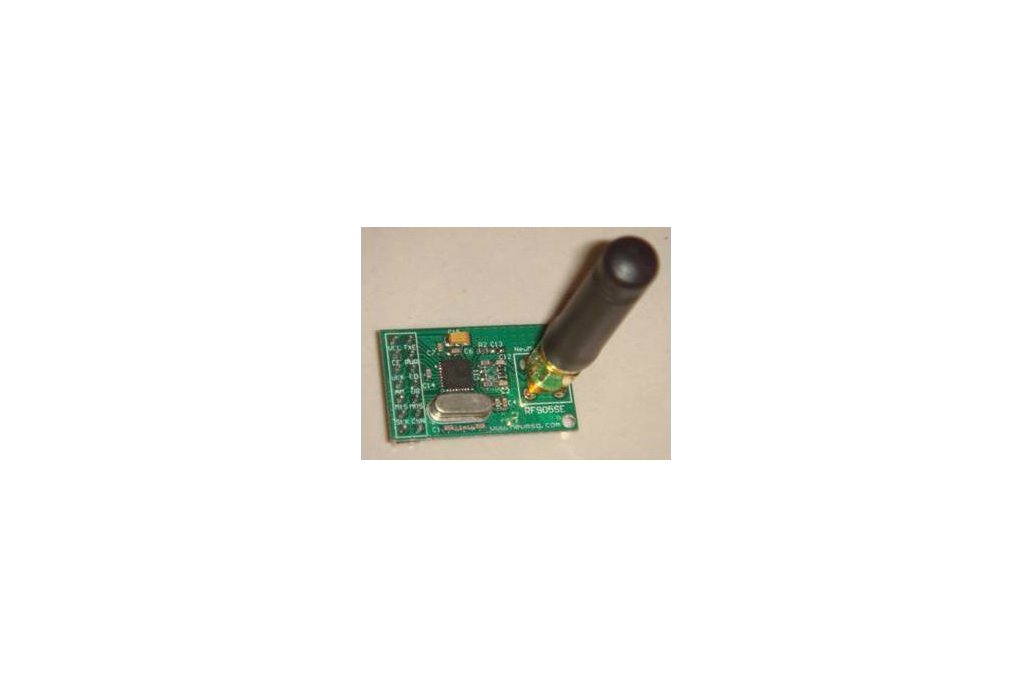

• 1 x NRF905 wireless module (PTR8000 +) wireless transmission module NF905SE
