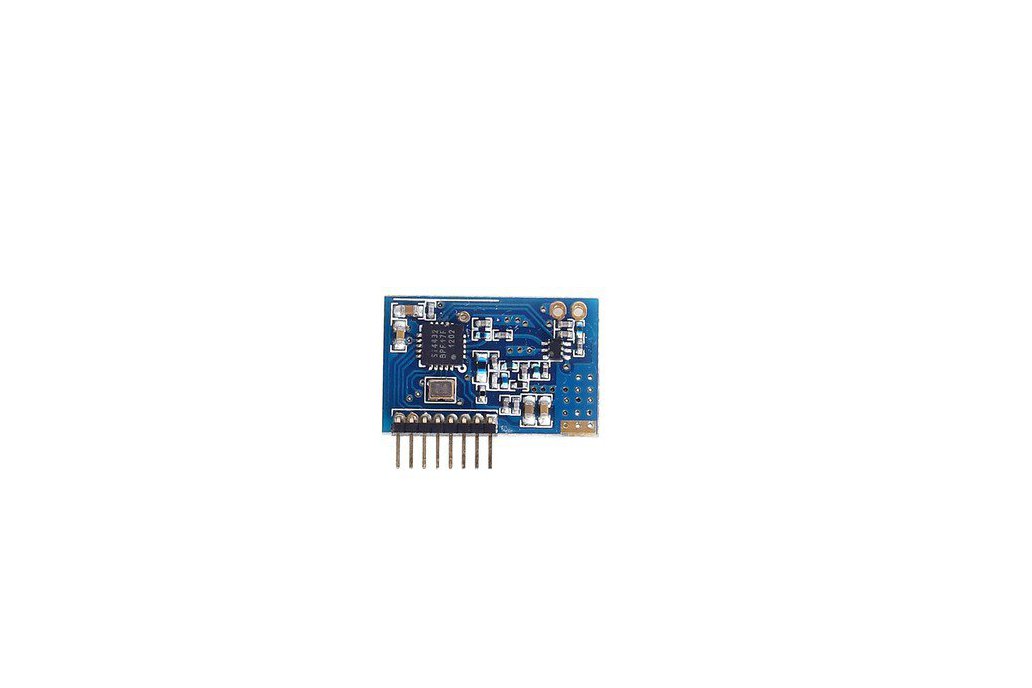

SI4432 wireless rf module adopts Silicon Laboratories SI4432 B1 version chip design . SI4432 is a highly integrated wireless transceiver chip ISM frequency. It has a very high receiver sensitivity (121 dBm), maximum + 20 dBm output power, known as the "king of wall," This module uses the SI4432 - B1 version of IC design, stable and reliable performance, no crash. Lead-free design, the product through RHOS testing.

Features:

• Frequency range: 315 m, 434 m, 470 m, 868 m, 915 m (434 m, 470 m, 434 m, are all in stock. If customer don’t specify which frequency they need, we will send 434MHz by default!)
• Sensitivity: up to 121 DBM
• Maximum output power: 100 ma @ 20 DBM
• Data transmitting rate: 0.123-256 KBPS
• Modulation modes: FSK, GFSK and baton
• Power supply: 1.8 to 3.6 V
• Ultra low power off-mode
• Digital received signal strength indicator (RSSI)
• Timing, wake up function
• Antenna automatic matching and two-way switch control
• Configurable packet structure
• Before the synchronization signal detection
• 64 bytes to send and receive data register (FIFO)
• Low power test
• Temperature sensing and 8 bits of adc
• The operating temperature range: - 20 ~ + 60 ° C
• Integrated voltage regulator completely independent design and produced
• Harmonic is small, easy to electromagnetic interference tests
• Small size: 20 x 13 mm
• 90 degree bend row-needles interface

Applications:

• Wireless order machine
• Industrial remote control
• Remote control
• Remote sensing
• Queuing system and small wireless networks
• Wireless meter reading
• Entrance guard system
• Paging
• Industrial data acquisition system
• Small wireless data terminals
• Security and fire prevention systems
• Wireless remote control system
• Meteorological and hydrological monitoring
• Biological signal acquisition
• Robot control
• Wireless alarm system
• MORE!
