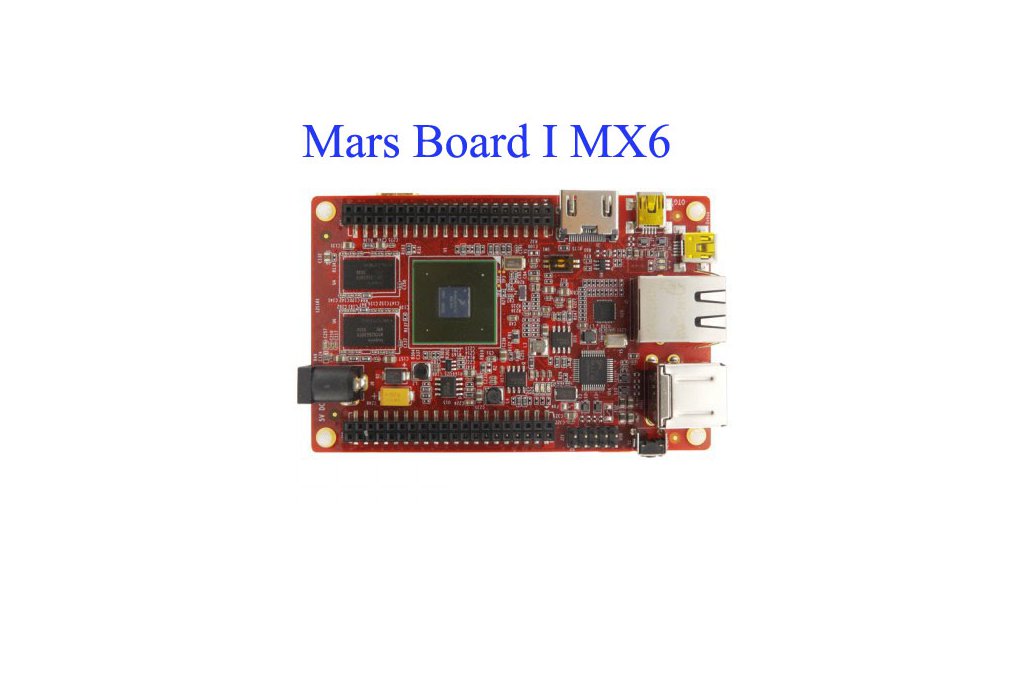

What is MarS Board? Full-featured Platform built in Freescale i.MX6 Dual

MarS Board is a Multi-Core platformBuilt in Freescale newest i.MX6 Cortex-A9 Dual Core, running up to 1GHz with 1 MB of L2 cache and 64-bit DDR3 or 2-ch, 32-bit LPDDR2 support. You can DIY like this, one core runs android4.0+9.7’’ LVDS module or HDMI, another runs uC0S-II + 4.3’’ or 7’’ LCD Module,it’s amazing while they are running at the same time. However, if you think this is what MarS board can do, probably you will miss more unbelievable designing idea in the following.

MarS Board is a Multi-Display platform.If you want to connect MarS Board with 4.3’’ or 7’’ LCD module via LCD interface, Also, if you want to connect with 9.7’’ LVDS module via LVDS interface, what’s more, connecting with HDMI Display through HDMI Interface as well. All of these, MarS Board can help you!

MarS Board is a Multi-Media platform.It supports 1080p, 60h. 264 video decode, 1080p 30H. 264 BP/ Dual 720p encode, GPU 2D and 3D, pretty platform in Smart Monitors, Advanced HMI, Android TV, Multimedia internet Device applications and etc.

MarS Board is a Multi-OS Platform.You can use Mars Board to support Linux, android, uCos-II, Ubuntu OS and etc with pretty strong system and driver resources to support, evaluate and achieve your design idea.

MarS Board is a Multi-Expansibility PlatformYou can connect MarS Board with various of expansion modules designed by ourself, like 4.3’’ or 7’’ LCD Modules, 9.7’’ LVDS Module, HDMI-to-VGA Module, USB Wifi Module, Camera Module, USB 3G Module and etc. also you can expand your modules built in MarS Board, believe it, your idea can come true ................... All in all, MarS Board is yours, a super Multi ARM Revolution System.

What is on MarS Board?

1G ARM Cortex-A9 Processor, 32 KByte L1 Instruction Cache, 32 KByte L1 Data Cache, Private Timer and Watchdog Vivante GC2000, 200Mtri/s 1000Mpxl/s, OpenGL ES 2.0 & Halti, CL EP, 2D/3D Graphics Processor 4G Byte eMMC, 4256MB DDR3 SDRAM, TF card slot, up to32GByte 1HDMI interface, 1LVDS interface, 1LCD interface 4USB Host port, HS; 1USB OTG port, HS 10/100M/1Gbps RJ45 Ethernet interface 2Expansion interface with signals as: 2CAN, 2IIC, Audio & SPDIF, 8bit IPU1(Camera), SPI, USDHC1(SD card), 4UART, 2*PWM, GPMI, 6 GPIO DC-in:5v/4A Software:Linux3.0.15 & Android4.0.4 & uCOS-II Dimension:65mm x 102mm

High Scalability and Compatibility

Support 4.3’’ and 7’’ LCD with touch screen Module Support 9.7’’ LVDS Module Support Pi-View, HDMI-to-VGA Module Will support Wipi,USB Wifi Module Will support Camera Module Will support 3G Module Will support more.....
