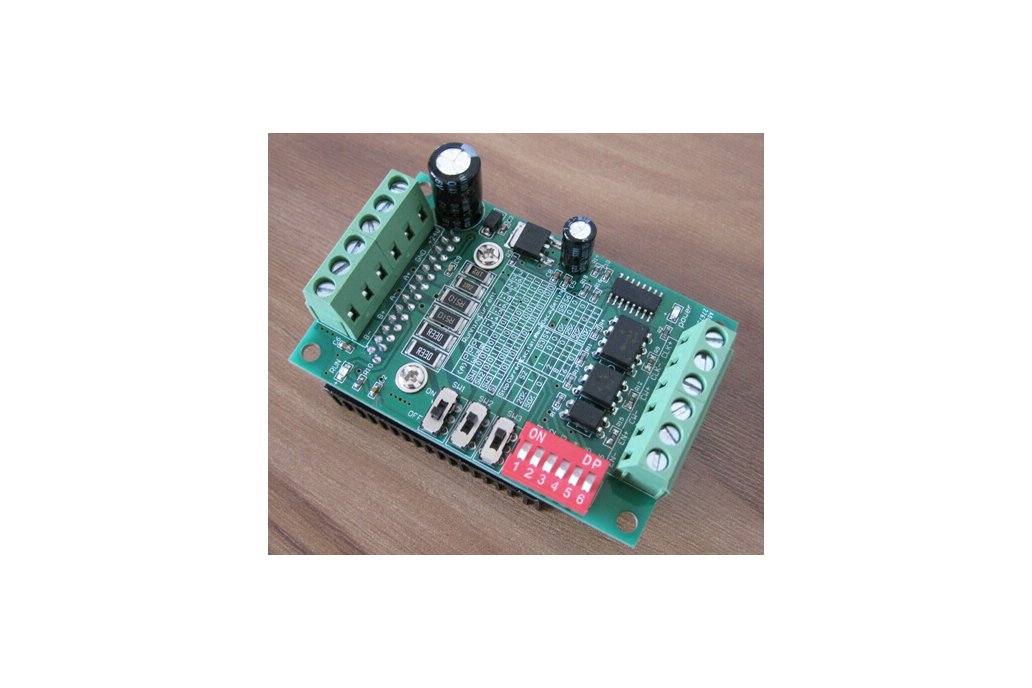

Details:

• Working voltage DC 10V-35V. Recommend the use of switching power supply DC24V.
• Using 6N137 high-speed optical coupling to ensure high speed without losing step.
• Toshiba TB6560AHQ new original chip, low-pressure shut-off, overheating and over-current protection circuit parking to ensure optimal performance.
• The maximum rated output: ± 3A, peak 3.5A.
• Step 3A suitable 42,57 within two / four-phase / four wire / six wire stepper motor is not suitable for more than 3A stepper motor.
• Automatic half current function.
• Segments: full step, half step, step 1/8, 1/16 steps, up to 16 segments.
• Dimensions: 75 x 50 x 35mm (length x width x height)

For its documents, please email us at: sales@exlene.com
