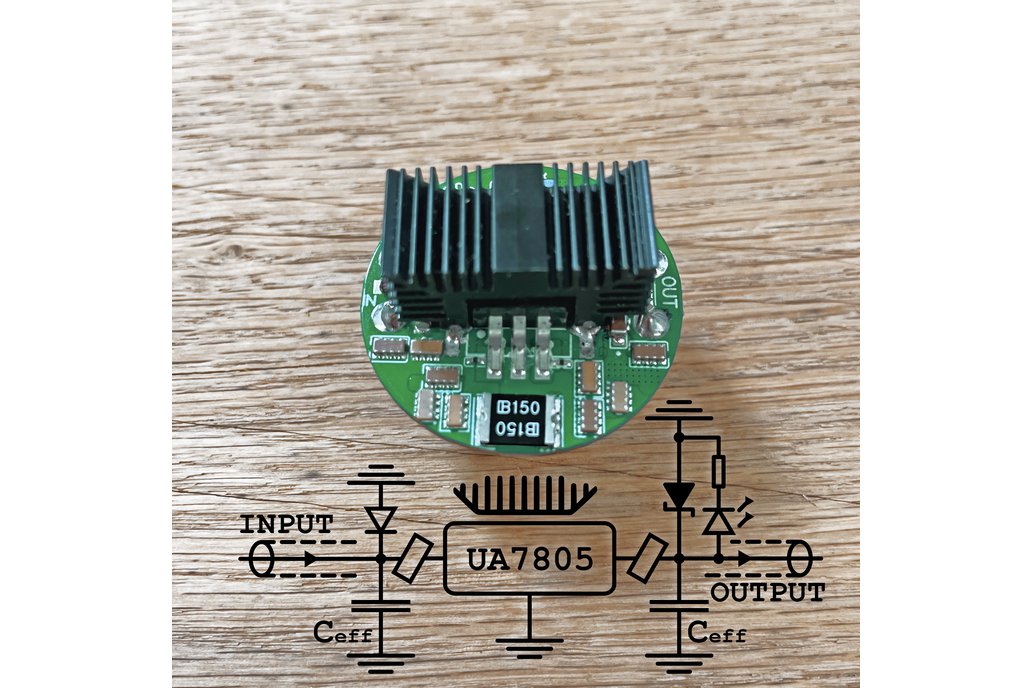

This compact, heatsinked voltage regulator module is designed for fast, reliable power delivery through standard BNC connectors. It utilizes a UA7805 regulator for a stable 5V output, making it ideal for test setups, low-noise applications, and rapid prototyping. The module has protective features, including reverse polarity protection, output overvoltage protection, and a power-good indication LED.

I designed this module to simplify powering sensitive electronics in laboratory and experimental setups. Traditional power regulators often lack easy connectivity and protection, making setups more complicated and prone to damage. With this BNC-compatible module, you can rapidly connect and power your devices without compromising safety or performance.

Features: Heatsinked Design: Enhanced thermal management for continuous operation. Noise Protection: Fortified with capacitors and ferrite beads to minimize electrical noise. Quick Plug-n-Play: BNC connectors provide a secure, quick, and reliable power connection. Compact PCB: Small form factor ideal for space-constrained setups.

Protection Features: Reverse polarity protection. Output power-good indication via LED. Output overvoltage protection.

Applications: Laboratory test setups. RF and audio equipment power supply. Secure low-noise power delivery for sensitive devices.

What's Included: 1x Power Over BNC Voltage Regulator Module Pre-installed heatsink for thermal efficiency Illustrated product photos are included above for reference.
