What is it?

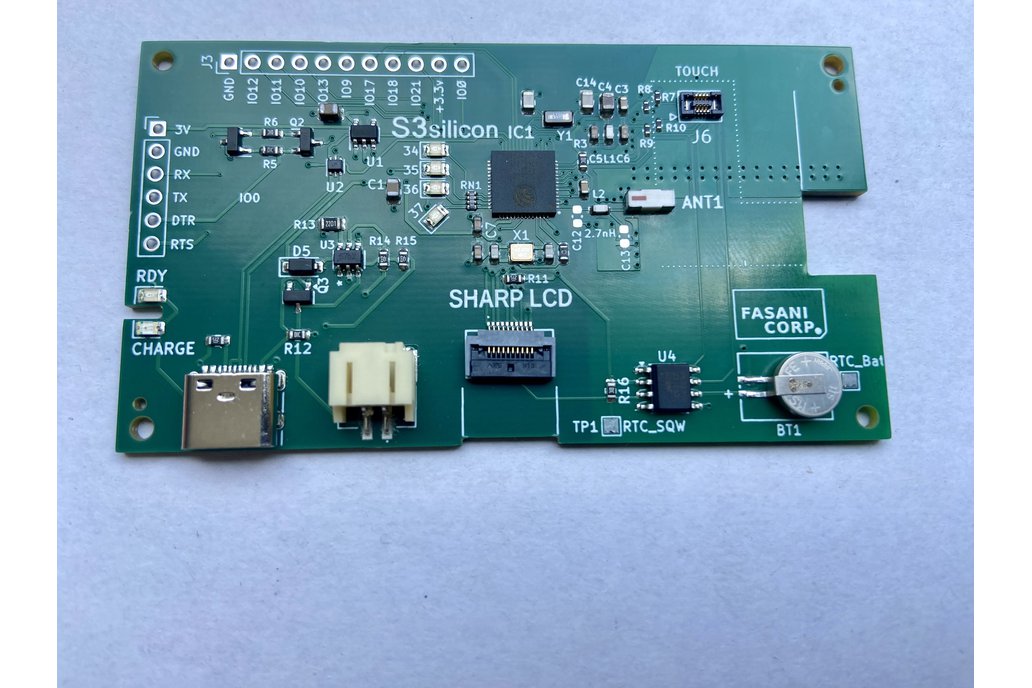

This PCB is a Sharp LCD controller. It has a DS3231 RTC on board and it's corresponding small LIPO battery, to keep the time if you want to make a clock. But most importantly this RTC is there to generate the required square-wave that is required for this LCDs (Otherwise LCD may suffer and go bad after sometime)

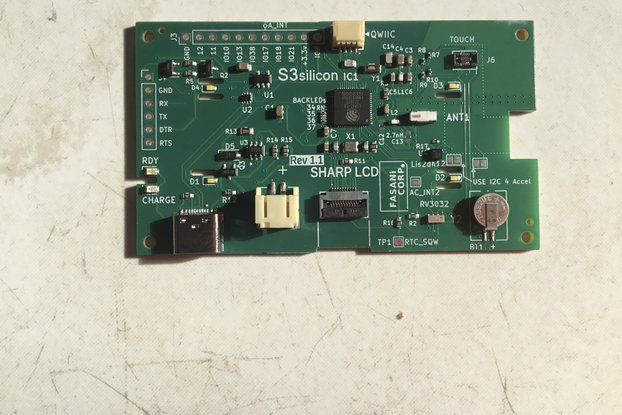

UPDATE: If you are interested in the next Revision of this PCB please check Rev 1.1 with IMU and better RTC

Why did you make it?

Some time ago I made an ESP32-C3 version for a SHARP LCD controller that I've never published. This is the upgrade of this old version. The initial idea was to support touch since there is a batch of this displays in eBay, that have a Mxt144 Atmel touch on board. Long story short, I failed in the pinout for the bottom row of the touch connector, hence this are coming to the Flea Market at a reduced price. Getting one PCB you are also helping me to finance next batch.

Features

• DS3231-MZ to generate the SQW signal the display needs (Per datasheet)
• TP4057 Battery charger with 2 Leds to reflect Charge & Ready
• ESP32-S3FN8 with Ceramic Antenna (No PSRAM available)
• 9 GPIOs exposed in header
• UART headers (No need unless you really brick it)
• USB-C for charge and programming with data pins going to ESP32S3 directly

DISPLAY PINOUT

IO - - - - - -
 1 SPI_CLK
 2 SPI_MOSI
 3 CS
 4 DISPON (pulled up)
14 EXTMODE
