Note to be transparent with the costs: Manufacturing this device is expensive as rare and special components are used. The DAC alone costs around $30. To keep the production costs within reasonable limits, I ask interested buyers to use the wishlist function.

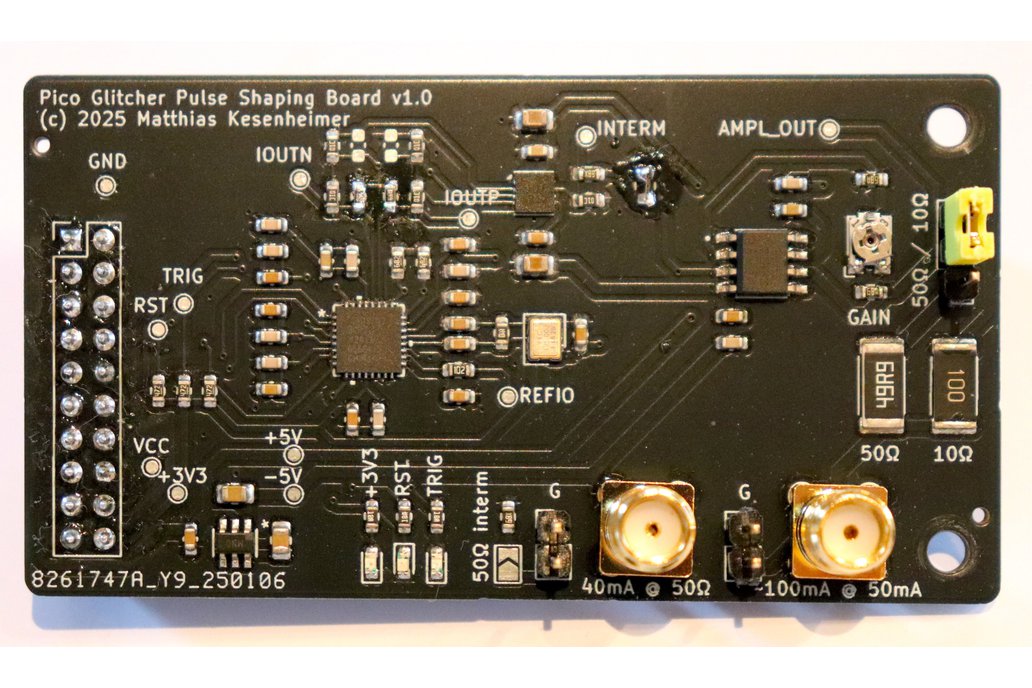

The pulse-shaping expansion board for the Pico Glitcher v2 allows for fine-tuned control over glitch waveforms by defining voltage transitions over time. This technique is useful for more sophisticated fault injection attacks where simple square-wave glitches might not be effective.

Pulse-shaping is the method of generating arbitrary voltage profiles that are applied to the power rail of the target device. This board gives you very fine control over the voltage curve with which the target device is supplied. Not only that, but unwanted oscillations after the transitions between two voltage levels can also be suppressed, resulting in cleaner voltage curves.

The waveform generator AD9102 from Analog devices was chosen for this device and is used to generate arbitrary voltage profiles. This chip is a high performance digital-to-analog converter (DAC) integrating on-chip pattern memory for complex waveform generation with a direct digital synthesizer (DDS).

The key features of the Pulse Shaping Expansion board are:

• 180 MSPS pattern generator
• Power amplifier with >7000 V/μs slew rate for clean and steep signals
• Wide bandwidth of up to 200MHz
• High output current of ±200 mA to supply the target with power

Note that the Pico Glitcher v1 is not compatible with this expansion board. See the documentation for more information.

If you have feature requests or issues, please contact me:

• twitter: @BartimaeusvUruk
• mastodon: @mkesenheimer@mastodon.social
• discord: https://discord.gg/8mqEVPG6k7

And if you like what I am doing, spread the word on twitter or mastodon, or leave a review here on tindie.
