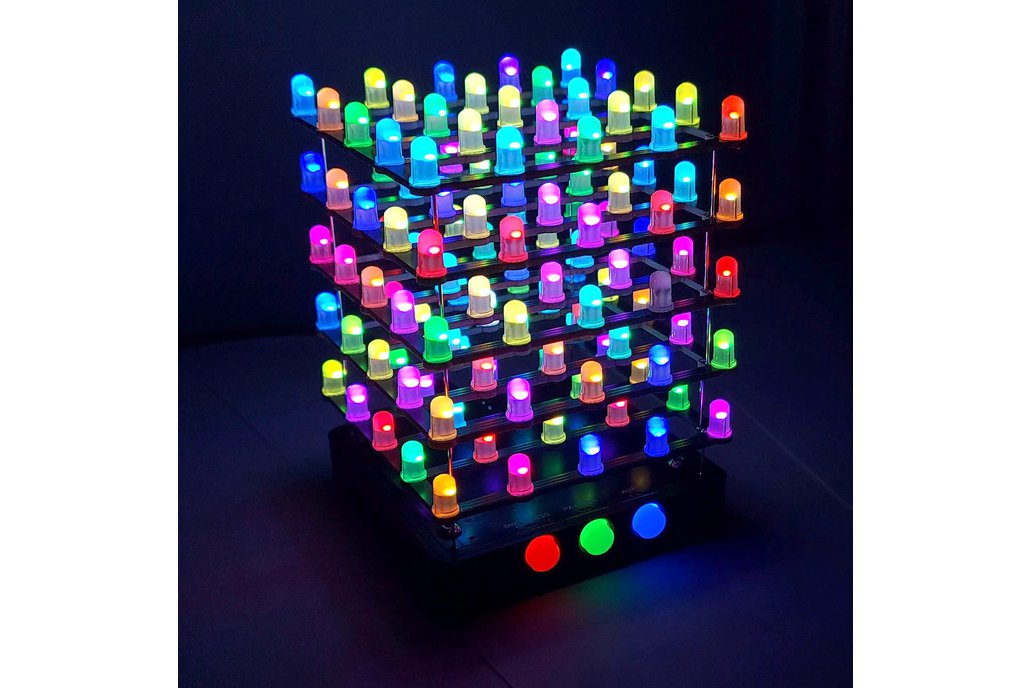

A 3-dimensional array of RGB LEDs, commonly referred to as an ‘LED cube’. This unique device features 125 RGB LEDs arranged in to a 5x5x5 array, which puts on a mesmerising light show with many different patterns to choose from.

The LED cube also features a built-in microphone and includes patterns which respond to sound, either based on volume or frequency (spectrum analyser functionality).

Revision 2 of the LED cube comes with many improvements over the previous version, including additional patterns and refinement of old ones. The new defining feature is the ability to link up to 5 devices together to achieve a larger display, up to an array size of 25x5x5 or 625 LEDs!

Features:

-14 static patterns plus 6 audio based ones.

-Automatic gain control of the microphone allows use over a wide range of sound levels.

-Connect up to 5 devices together using the supplied link adapter; additional devices are detected automatically and pattern generation is adjusted accordingly, no configuration required.

-Procedurally generated patterns produce a different result through each iteration, using ambient noise in the random number generator algorithm.

-User configurable brightness and pattern settings, automatically stored to and retrieved from memory upon power up.

-USB C powered for convenience, can be powered from most USB ports (1A or greater capability recommended, multiple devices each require their own power supply).

Items included:

1 x 5x5x5 RGB LED cube

1 x 2m USB C cable

1 x link adapter

1 x manual

Technical specifications:

-Peak current draw (maximum brightness): 1000mA

-Average current draw (maximum brightness, automatic mode enabled): 500mA

-Operating voltage: 5V +/- 0.5V

-Input protection: resettable PTC fuse (1A)
