Dev Pro Test Fixture Base

Name: Dev Pro Test Fixture Base
SKU: 35798
Price: 799.00 USD
Availability: InStock

Dev Pro Bed-of-Nails Test Fixture for Devices up to 170mm x 145mm

Designed by FixturFab in United States of America

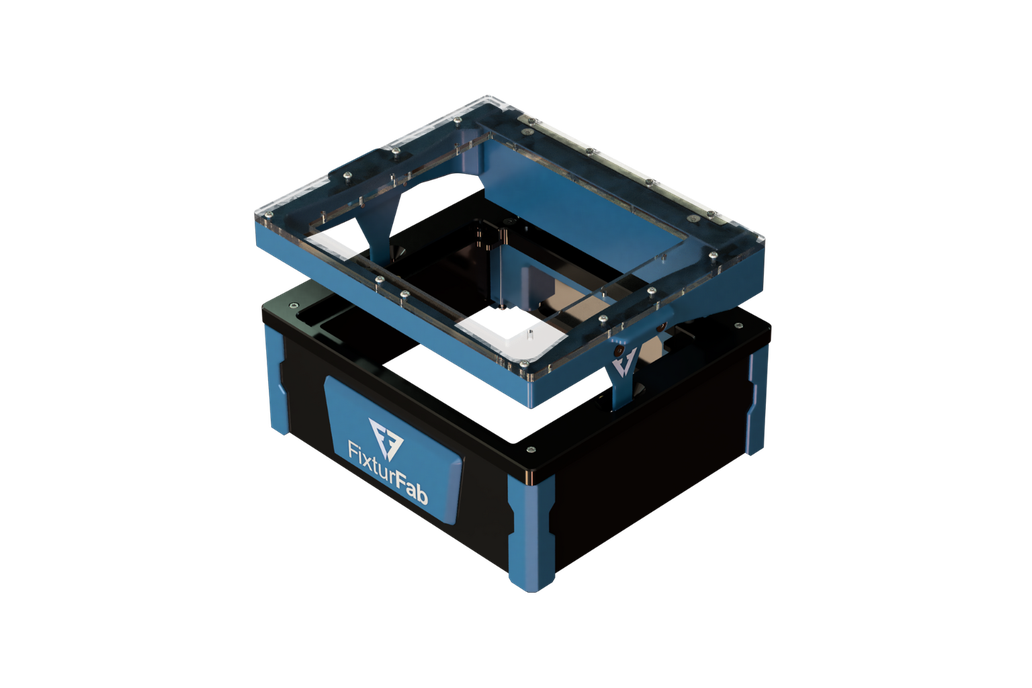

2024-09-11T20:45:53.125Z-[206-0025-00] Dev Pro Test Fixture Base.png

Buy with confidence.

Our Tindie Guarantee protects your purchase from fraud. Learn More

Dev Pro Bed-of-Nails Test Fixture for Devices up to 170mm x 145mm

Introducing the Dev Pro Development Fixture Pro-series development fixture for product development and low to medium volume production testing. Our standard size features a maximum DUT size of 170 x …

Introducing the Dev Pro Development Fixture

Pro-series development fixture for product development and low to medium volume production testing. Our standard size features a maximum DUT size of 170 x 145mm and is rated up to 5000 cycles.

Cartridge Compatibility

This fixture is compatible with the following cartridge styles:

MDF Cartridge
Cycle Rating: 1000
Customized Cartridge Lead Time: 10 days
G10 Cartridge
Cycle Rating: 5000
Customized Cartridge Lead Time: 10 days
TPCB Cartridge
Cycle Rating: 5000
Customized Cartridge Lead Time: 10-15 days

Make sure to order a cartridge! We offer both customized and standard versions for all types.

Specifications

Maximum Board Size: 170mm x 145mm (6.69in x 5.71in) Maximum Test Points: 200 Service Life: 5K+ Units Exchangeable Cartridge Support: Yes Top Probing Support: Some Side Probing Support: No Weight: 1.8kg (4lbs) Materials: Acetal, Acrylic, & PETG
