Combo ESP32/GPS/CC1101 3in1 for Flipper Zero

Name: Combo ESP32/GPS/CC1101 3in1 for Flipper Zero
SKU: 37087
Price: 104.99 USD
Availability: InStock

Sacred Labs FlipMods Combo 3in1 Wifi Dev Board with ESP32, GPS, CC1101 and 3D Printed Case for Flipper Zero Switch GPS to ESP32 or FZ

Designed by FlipMods in United States of America

Combo ESP32/GPS/CC1101 3in1 for Flipper Zero 1

Combo ESP32/GPS/CC1101 3in1 for Flipper Zero 2

Combo ESP32/GPS/CC1101 3in1 for Flipper Zero 3

Combo ESP32/GPS/CC1101 3in1 for Flipper Zero 4

Combo ESP32/GPS/CC1101 3in1 for Flipper Zero 5

Combo ESP32/GPS/CC1101 3in1 for Flipper Zero 6

Combo ESP32/GPS/CC1101 3in1 for Flipper Zero 7

Combo ESP32/GPS/CC1101 3in1 for Flipper Zero 8

Combo ESP32/GPS/CC1101 3in1 for Flipper Zero 9

Combo ESP32/GPS/CC1101 3in1 for Flipper Zero 10



Buy with confidence.

Our Tindie Guarantee protects your purchase from fraud. Learn More

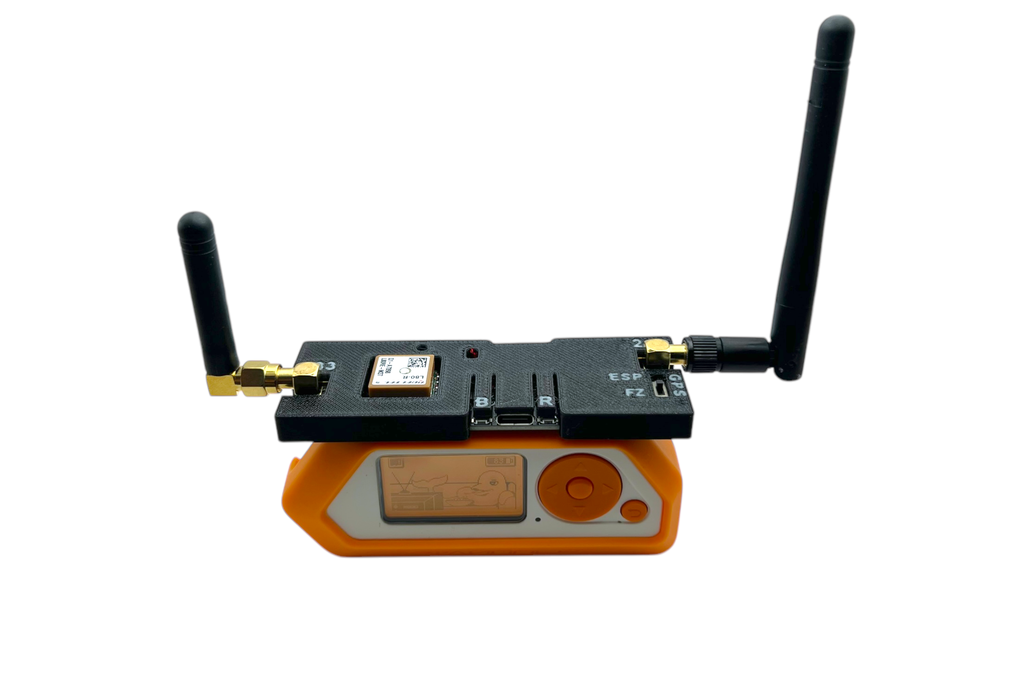

Sacred Labs FlipMods Combo 3in1 Wifi Dev Board with ESP32, GPS, CC1101 and 3D Printed Case for Flipper Zero Switch GPS to ESP32 or FZ

-This is the FlipMods Combo board that has an ESP32, CC1101 and GPS. What is unique about this board is that you could switch to where you want the GPS data to go to. GPS to ESP32 will send the GPS data to the ESP32 which will be used for Marauder. GPS to FZ will send the GPS data to pins 15/16 of the Flipper Zero to use the NMEA GPS app.

-Shorter angled antenna is the 433MHz which is screwed into the 433MHz/CC1101 SMA jack. Longer antenna is the 2.4GHz so that gets screwed into the 2.4GHz/ESP32 SMA jack.

-You will need to switch the GPS pins in the protocols of your firmware (Tested with Momentum and Xtreme). This is tested using the Momentum firmware so these steps will be for it: 1) Go to the "MNTM" or "Xtreme" app. 2) Select "Protocols". 3) Select "GPIO Pins". 4) Go to "NMEA GPS UART" and press the right button to select the option "Extra 15,16". DON'T USE GPS SWITCH ON THE BOARD WHILE THE BOARD IS ON. Turn the Flipper Zero off and then switch.

-GPS has a LED labeled "GPS" to let you know if there is a lock. If there is no lock the LED will be off but if there is a lock, the red LED will flash. In order to increase your chances of getting a lock, do it in an area with no obstructions that will block the antenna.

-The ESP32 has the Marauder firmware pre flashed. Use USB-C to upload the firmware to the ESP32-WROOM-32UE.

-No need to turn on 5V since all components are running on 3.3V.

-3D printed using PETG in a Bambu Labs X1-Carbon.

-What's included: Antennas (1x 433Mhz and 1x 2.4Ghz), 3D Printed Case and Combo Board.

-Micro SD Card NOT included so if you plan on using an SD card, make sure the size of the SD card you are using is less than or equal to 32GB and that is initialized in Fat32. Also there are brands that may not work with Marauder so please do research on which ones if you plan on using your own.

Flipper Zero is not included
Do NOT unplug modules that are in use or use the switch
You will need applications/firmware (Such as Momentum, Unleashed, RogueMaster or Xtreme) to support marauder on your Flipper Zero.
