Update 17.12.2024

Thanks for your interest! Due to low popularity and increased difficulties to deliver guaranteed quality, I decided to stop selling these DIY kits. The assembled modules are still available and you're welcome to order it. Thanks you for your understanding!

What is it?

This is a DIY kit for our top-rated external radio module to use with Flipper Zero. It provides longer working distance, lower noise level and is a lot more customizable than Flipper's built-in chip.

Pro tip: don't want to solder? Buy an assembled module here!

What makes it special?

This is an unique module that uses significantly less pins to connect and has a built-in power converter to lower Flipper's own noise on power line. Inspired by Unleashed community and developed by awesome Quen0n, it works perfectly with all popular firmwares including the following:

• Official
• Unleashed
• Xtreme
• RogueMaster

Available variants

Currently I have 3 variants for this DIY kit: orange, while and black. Transparent Lego is available only as an assembled module (check out our dedicated page for assembled modules).

What is included

This kit includes all the required components for one module:

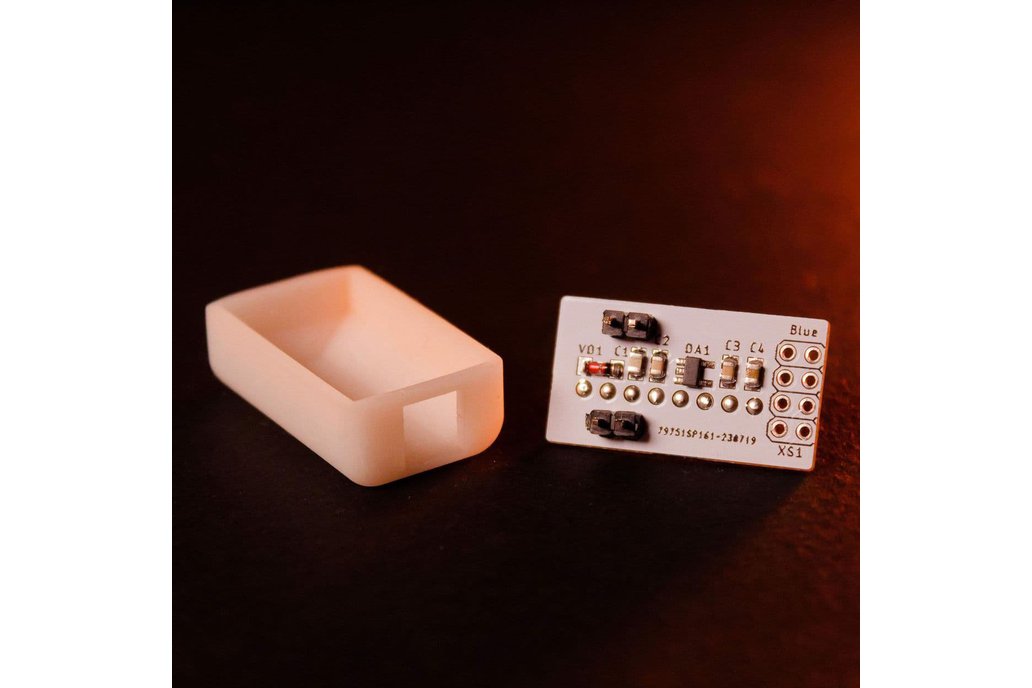

• 1 x CC1101 board
• 1 x Adapter board
• 2 x 0.1 uF 0805 capacitor
• 2 x 10 uF 0805 capacitor
• 1 x XC6219B332MR LDO voltage regulator
• 3 x PLS connectors (2 x PLS-2 + 1 x PLS-8)
• 1 x LL4148 diode
• 1 x Plastic body of selected color

Please note that you will still need some basic tools: a soldering iron, some solder or soldering paste and a basic skill with soldering process.

You can select preferred body color when ordering. Want more than one? Select appropriate amount and leave me a note to specify colors.

Schematic
