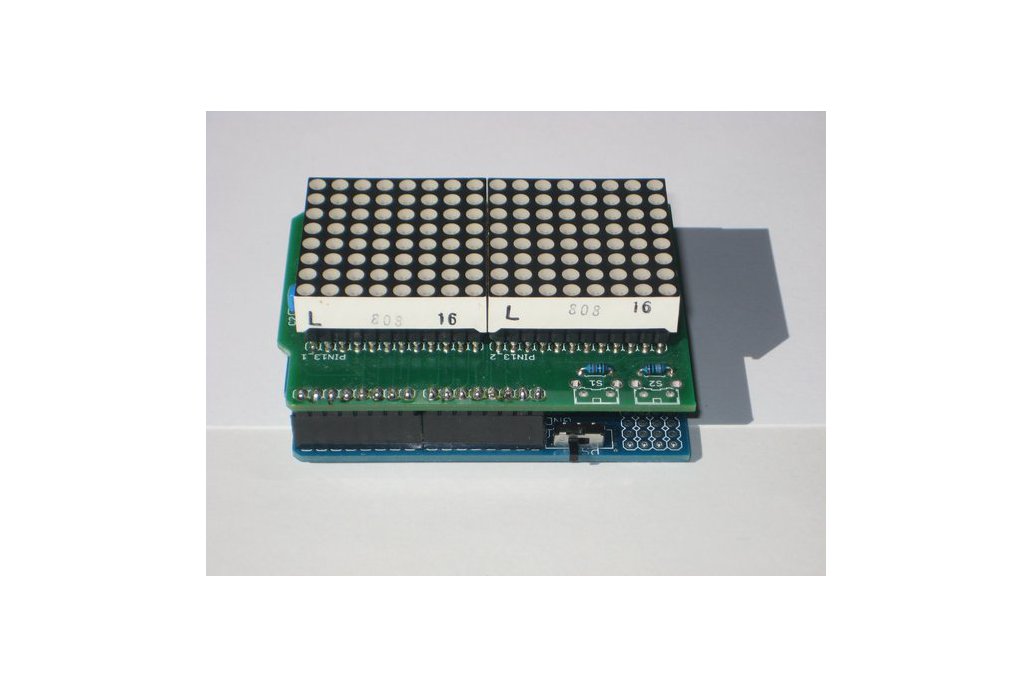

This is a LED-matrix shield that uses two 8x8 tri-color (red, green, orange) LED matrices. Plug it into your Arduino to make a clock, an instrument display, a scrolling message sign, a game of life d…
Read More…This is a LED-matrix shield that uses two 8x8 tri-color (red, green, orange) LED matrices. Plug it into your Arduino to make a clock, an instrument display, a scrolling message sign, a game of life display etc. The kit includes the assembled board (with SMD chips soldered by me), two 8x8 LED matrices that plug into machined female headers, male headers for the shield and, two right angle buttons.
The schematic uses 4 x 74HC595 shift registers and one A2982 source current driver. The LED matrices are common anode.
$25.00
