Level Shifter TXS0102 with dc-dc converter

Name: Level Shifter TXS0102 with dc-dc converter
SKU: 22973
Price: 12.00 USD
Availability: InStock
Rating: 5.00 (1 reviews)

(1 Review)

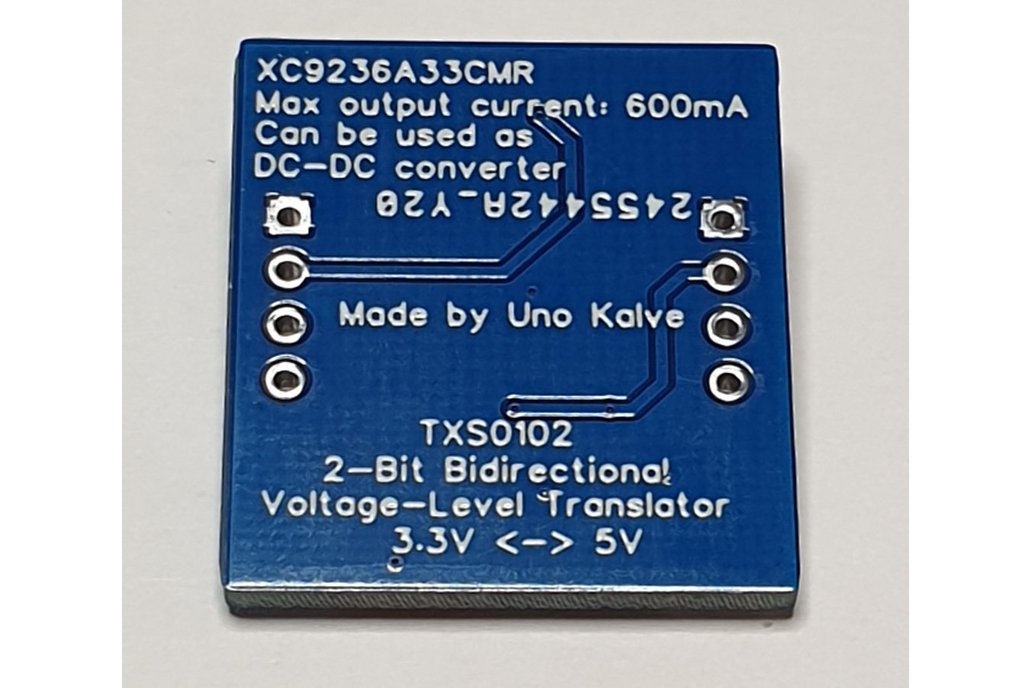

Level Shifter based on TXS0102 IC with dc-dc converter, all parts with small footprint. Except headers :)

Designed by FreeTimeStore in Denmark

Level Shifter TXS0102 with dc-dc converter 1

Level Shifter TXS0102 with dc-dc converter 2

Level Shifter TXS0102 with dc-dc converter 3

Buy with confidence.

Our Tindie Guarantee protects your purchase from fraud. Learn More

Level Shifter based on TXS0102 IC with dc-dc converter, all parts with small footprint. Except headers :)

What is it? Bidirectional level shifter based on TXS0102 chip. Including onboard DC-DC converter from 5V to 3.3V Have also without DC-DC converter, just need some soldering work :) I will list them f…

What is it?

Bidirectional level shifter based on TXS0102 chip. Including onboard DC-DC converter from 5V to 3.3V Have also without DC-DC converter, just need some soldering work :) I will list them for sale then I make them :)

Datasheets: DC-DC: https://www.torexsemi.com/file/xc9235/XC9235-XC9236-XC9237.pdf Level Shifter: https://www.ti.com/lit/ds/symlink/txs0102.pdf?HQS=dis-dk-null-digikeymode-dsf-pf-null-wwe&ts=1615278313476

Why did you make it?

I made it for my own need's, but have some extra wich i do not need.

What makes it special?

I have used all parts with smalest fotprints for saving space and what i could work with without special equipment.
